tesa® Sleeve 68000 PV17

Aluminum laminated glass cloth Sleeve® for radiant heat reflection and enhanced flexibility in the automotive engine compartment

Product description

tesa® Sleeve 68000 PV17 is an aluminum laminated glass cloth with an acrylic adhesive and a thin PET fleece layer, designed for automotive engine compartments. Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides excellent radiant heat shielding as well as enhanced durability at high temperature.

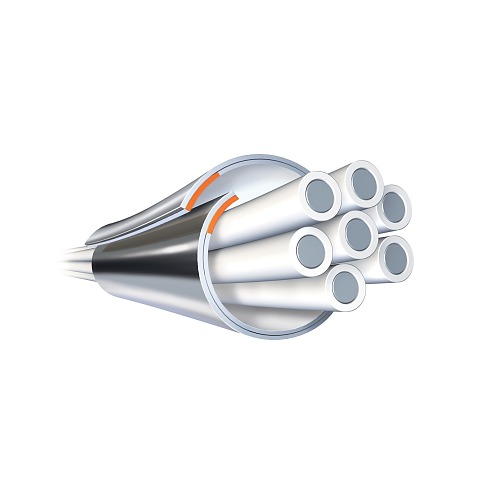

The tesa® Sleeve product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility. Customized length-specific kiss cutting is available on request. tesa® Sleeve 68000 PV17 is specifically designed for efficient lengthwise manual application.

Main features:

  • Superior radiant heat reflection
  • High temperature resistance
  • High flexibility
  • Ageing-resistant
  • Resistant to environmental influences
  • Self extinguishing
  • Flexible and smooth

Color: silver
Liner: silicone

Temperature Resistance
  • 200°C / 240h (according to SAE J2192)
  • 232°C / 168h (according to ISO 188 Method B)

Thermal Effectiveness (according to SAE J2302)
  • -55°C at 350°C heat source temperature
  • -83°C at 450°C heat source temperature
  • -110°C at 550°C heat source temperature

Main Application



tesa® Sleeve 68000 PV17 has been developed for:
  • Applications within the wire harness segment.
  • Bundling and wire protection in areas with increased demands for radiant heat protection.
  • Shielding against radiant heat sources in the automotive engine compartment.

Product details and specifications

Application Fields

tesa Sleeve® 68000 PV17 has been developed for bundling and wire protection in areas with increased demands for radiant heat protection. The major application is field wire harness segment shielding against radiant heat sources in the automotive engine compartment.

1 Adhesion to steel: Backing breaks at forces greater than 6 N/cm 54.8 oz/in
Standard widths: 50, 68, 80, 100, 130, 160 mm
Standard length: 50 m
  • Most combinations of width and length are possible
  • Also available as kiss-cut on request

Harness diameter / tesa Sleeve® width recommendation
Ø 8 mm - 10 mm / 50 mm1
Ø 10 mm - 15 mm / 68 mm
Ø 16 mm - 19 mm / 80 mm
Ø 20 mm - 25 mm / 100 mm
Ø 26 mm - 35 mm / 130 mm
Ø 36 mm - 43 mm / 160 mm

1 Smaller harness diameters need to be tested individually
  • Standard core diameter: 76 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® 68000_en-US_v3 131 kB Product information_tesa® Sleeve 68000_en-US 56.7 kB
