tesa® ACXplus 7076

ACXplus High Resistance 1500µm


Product description

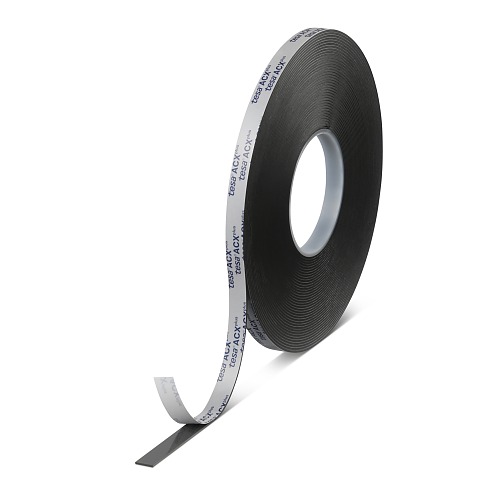

tesa® ACXplus 7076 is a black acrylic foam tape. It consists of a high-performance acrylic system and due to its unique components it combines a very good temperature resistance with an outstanding cold shock resistance up to -40°C. It is designed for demanding outdoor bonding applications especially in combination with the tesa Adhesion Promoters. The visco-elastic, foamed acrylic core compensates different thermal elongation of bonded parts.


Product details and specifications

Application Fields

Bonding of panels and reinforcement bars in the following Industries:
  • Solar
  • Elevator
  • Production Equipment
  • Transportation
Backing material foamed acrylic
Color black
Total thickness 1,500 µm
Type of adhesive pure acrylic
Temperature resistance short term 220 °C
Temperature resistance long term 120 °C
Adhesion to ABS (initial) 6 N/cm
Adhesion to ABS (after 14 days) 7 N/cm
Adhesion to PP (initial) 2 N/cm
Adhesion to PP (after 14 days) 2 N/cm
Adhesion to Steel (initial) 18 N/cm
Adhesion to Steel (after 14 days) 34 N/cm
Adhesion to Steel (after 3 days) 33 N/cm
PV 22 = White PE coated paper liner tesa® ACXplus branded
PV 24 = Blue filmic liner
tesa® ACXplus 7076 is recognized according to UL Standard 746C. UL File QOQW2.E309290
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® ACXplus 7076 tesa® ACXplus 6812 Black Line tesa® ACXplus 54812 Black Line tesa® ACXplus 6808 Black Line tesa® ACXplus 6815 Black Line tesa® ACXplus 7078 tesa® ACXplus 6804 Preliminary tesa® ACXplus 7063 tesa® ACXplus 7066 tesa® ACXplus 7062 tesa® ACXplus 7055 tesa® ACXplus 7065
Total thickness
1,500 µm
1,200 µm
1,200 µm
800 µm
1,500 µm
2,000 µm
400 µm
800 µm
1,500 µm
500 µm
1,000 µm
1,200 µm
Type of adhesive
pure acrylic
tackified acrylic
tackified acrylic
tackified acrylic
tackified acrylic
pure acrylic
tackified acrylic
tackified acrylic
tackified acrylic
tackified acrylic
pure acrylic
tackified acrylic
Backing material
foamed acrylic
foamed acrylic
foamed acrylic
foamed acrylic
foamed acrylic
foamed acrylic
foamed acrylic
foamed acrylic
foamed acrylic
foamed acrylic
solid acrylic
foamed acrylic
Adhesion to Steel (initial)
18 N/cm
20 N/cm
20 N/cm
18 N/cm
20 N/cm
20 N/cm
12 N/cm
24 N/cm
19 N/cm
30 N/cm
Adhesion to Steel (after 14 days)
34 N/cm
37 N/cm
40 N/cm
32 N/cm
48 N/cm
Color
black
deep black
deep black
deep black
deep black
black
deep black
black
black
black
transparent
black
