Product description

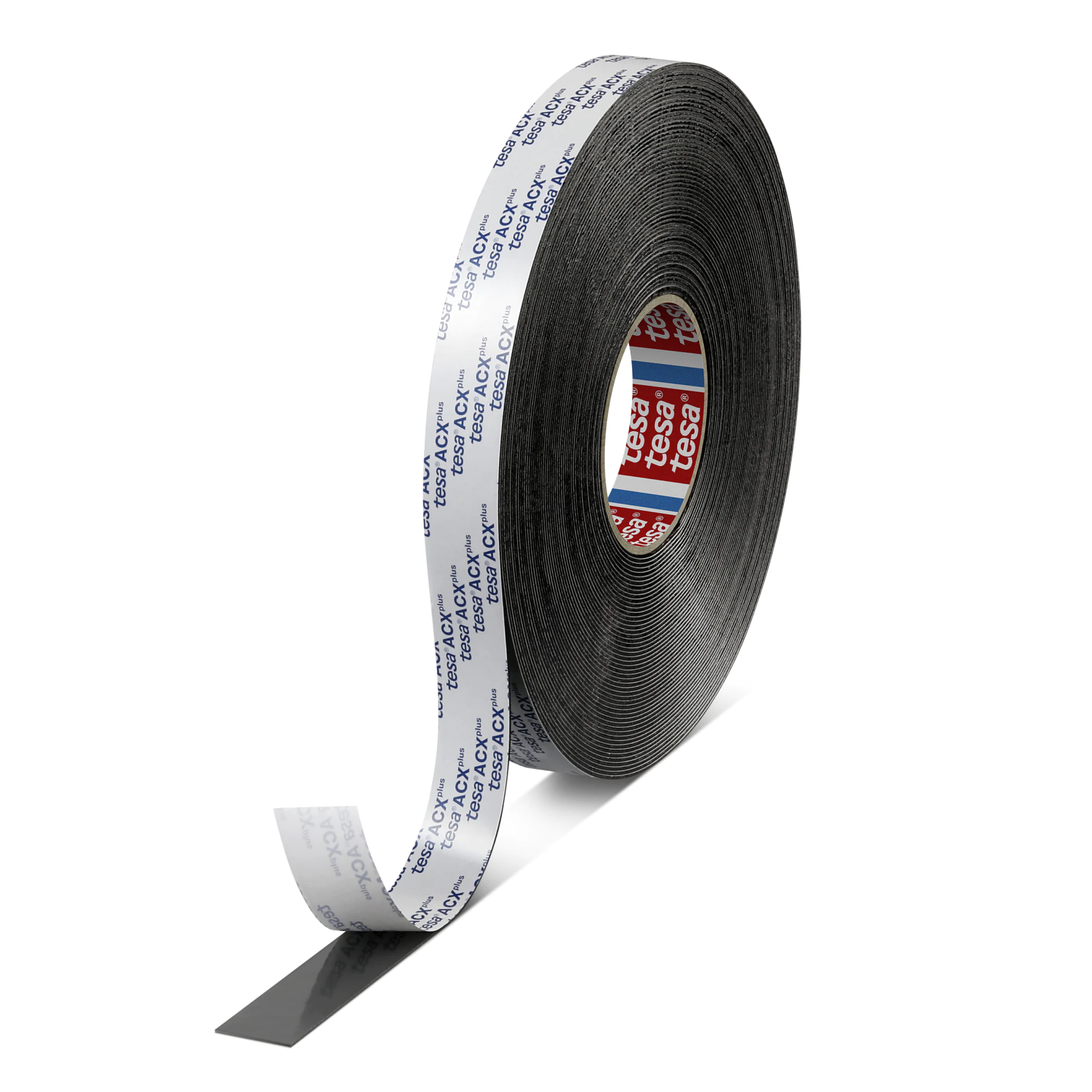

tesa® ACXplus 7078 is a deep black acrylic foam tape, consisting of a high-performance acrylic adhesive system. The tape's unique components enable a combination of an excellent temperature resistance of up to 220°C for short periods of time, with an outstanding cold-shock resistance of up to -40°C. The double sided foam tape is resistant to ageing, UV light, chemicals and softeners. tesa® ACXplus 7078 is designed for demanding outdoor bonding applications especially in combination with tesa® Adhesion Promoters. The viscoelastic, foamed acrylic core compensates for different thermal elongation rates of bonded parts, offers great conformability to irregular surfaces as well as superior bonding strength.Main applications
- tesa® ACXplus 7078 is used for various highly demanding bonding and reinforcing applications in a range of industries such as:
- Elevator construction industry
- Transportation and automotive industry
- Production equipment industry
- Ideal for use with tesa® Adhesion Promoters
Technical properties
Elongation at break
1000 %
Type of adhesive
pure acrylic
Total thickness
2000 µm
Backing material
foamed acrylic
Color
deep black
Adhesion properties
Adhesion to Steel (initial)
16 N/cm
Adhesion to Aluminium (after 3 days)
32 N/cm
Adhesion to Steel (after 3 days)
40 N/cm
Adhesion to Glass (after 3 days)
40 N/cm
Adhesion to Glass (initial)
24 N/cm
Adhesion to Aluminium (initial)
14 N/cm
Rating properties
Static shear resistance at 23°C
++
T-block
++
Resistance to chemicals
++
Humidity resistance
++
Tack
o
Static shear resistance at 70°C
++
Ageing resistance (UV)
++
Temperature resistance long term
120 °C
Temperature resistance short term
220 °C
Softener resistance
o
Additional Info

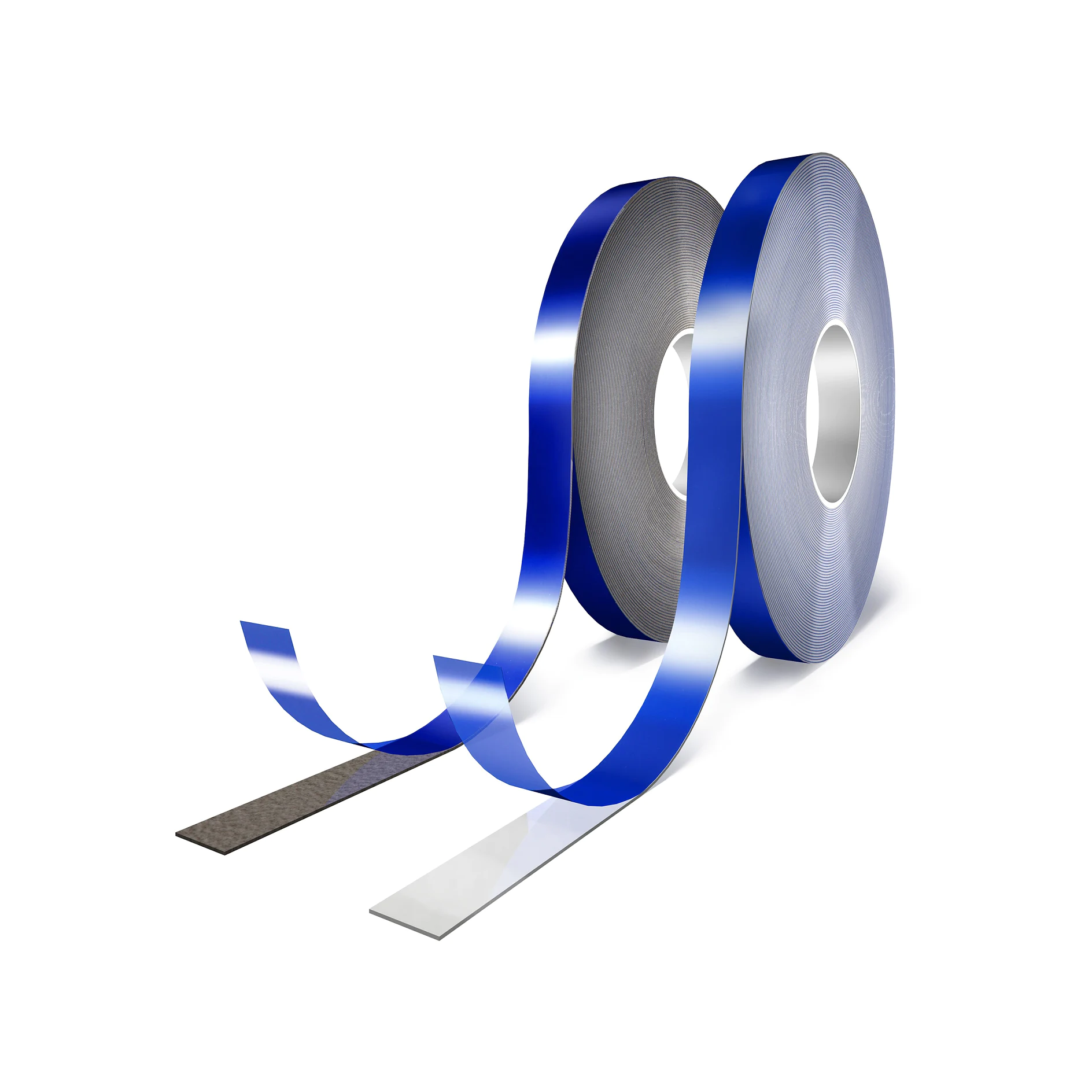

PV 22 = White PE coated paper liner tesa® ACXplus brandedPV 24 = Blue filmic liner
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
