tesa® ACXplus 704x
Product information

tesa® ACXplus 7044

High bond double sided acrylic foam tape. Ideal for signage applications.



Product description

tesa® ACXplus 7044 is a double sided acrylic foam tape, consisting of a high-performance acrylic system which is primarily characterised by its bonding power, stress dissipation characteristics and its temperature and weather resistance. Due to the product's unique formulation, this double sided acrylic foam tape combines very high adhesion levels with the ability to absorb and dissipate high dynamic loads.
The viscoelastic core of this product is able to compensate thermal elongation of bonded parts. tesa® ACXplus 7044 performs well on "hard-to-bond" materials such as powder coatings or plastic materials. Even in combinations of such materials, this product provides advanced safety due to its innovative product design. tesa® ACXplus 7044 makes bubble-free bonding possible. The grey or white colour options adapt very well to metal and plastic surfaces, resulting in an invisible bond.

Main applications

  • tesa® ACXplus 7044 is suitable for a wide range of constructive bonding applications including:
  • Reinforcement bar / stiffener bar mounting
  • Decorative panels (e.g. refrigerator glass doors)
  • Decorative elements (e.g. covers of dishwashers, muntin bars on windows)

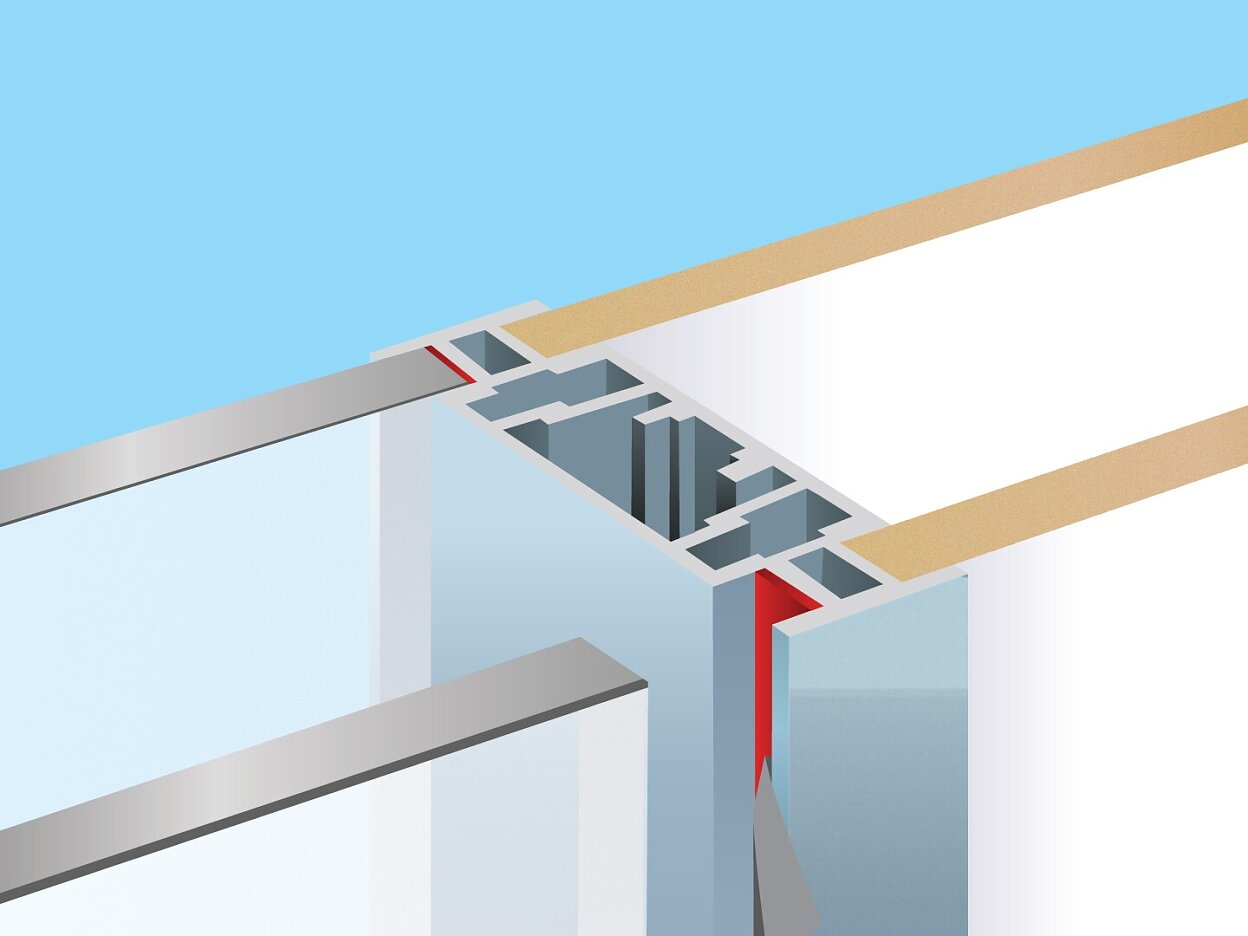

  • Glass-to-glass or glass-to-metal applications (e.g. partition walls or glass doors)
tesa® ACXplus 704x

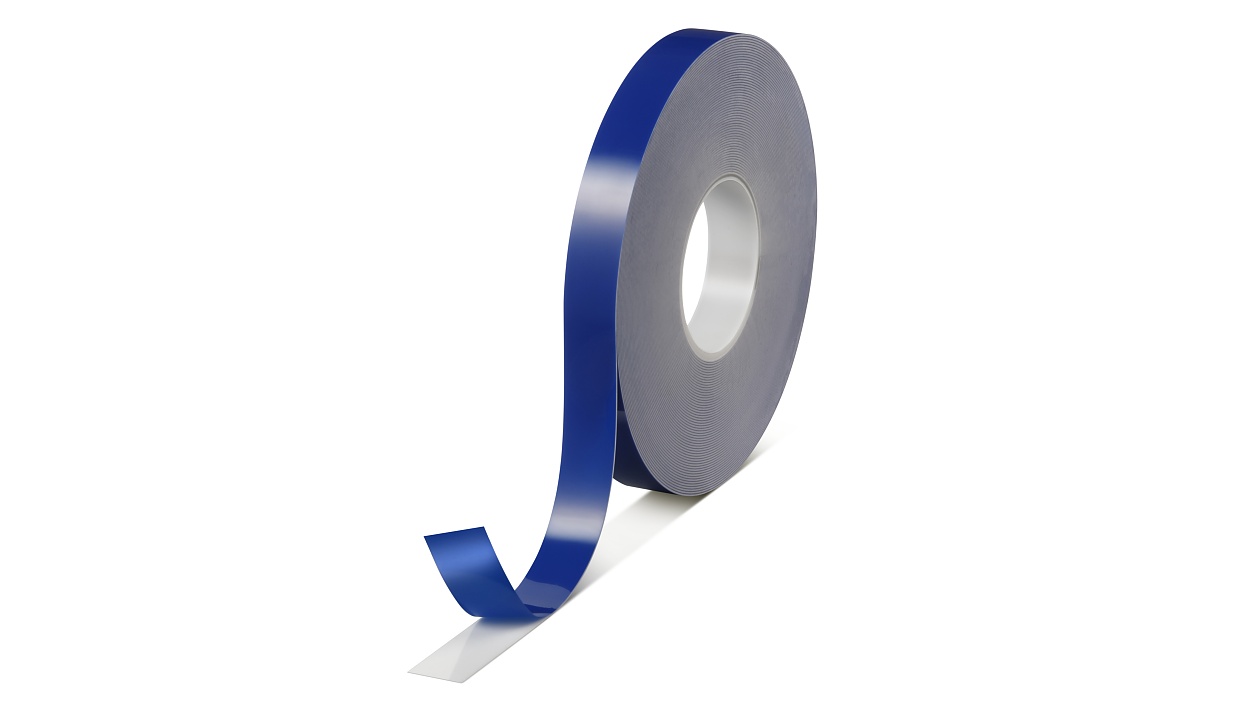

tesa-acxplus-7044-1000-double-sided-acrylic-foam-tape-white-070440001928-pr

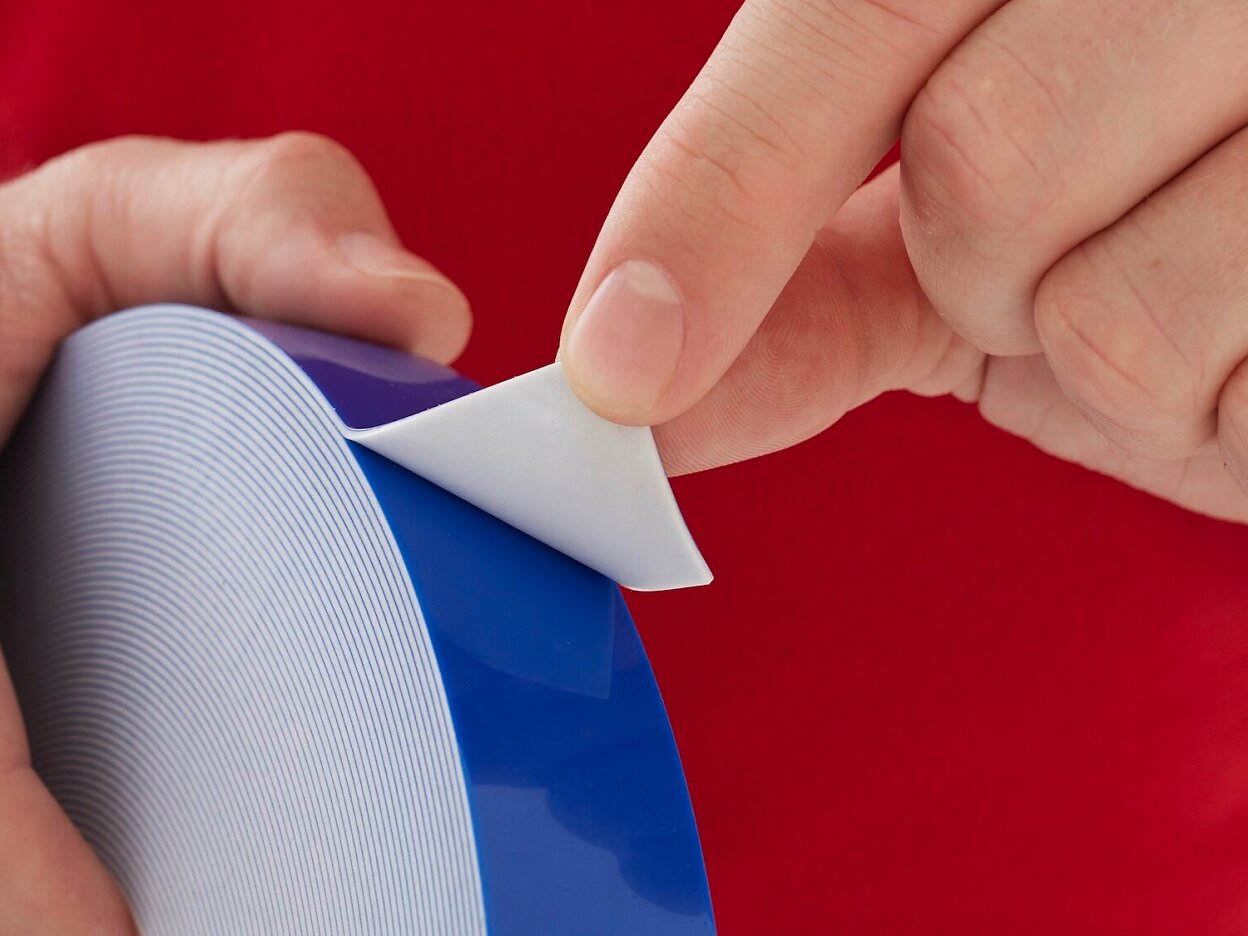

tesa 7044 acxplus 1000 double sided acrylic foam tape step1of8 ap

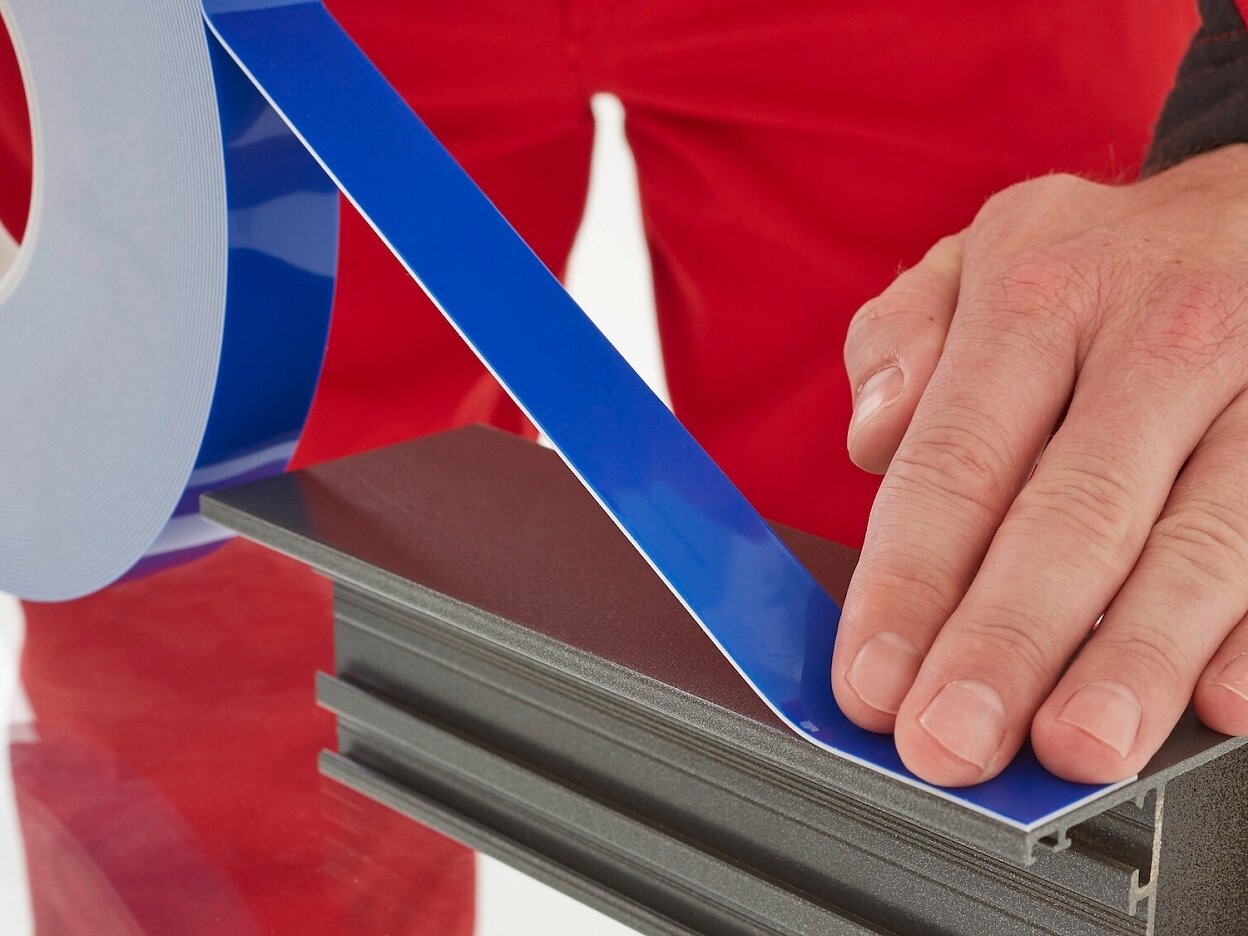

tesa 7044 acxplus 1000 double sided acrylic foam tape step2of8 ap

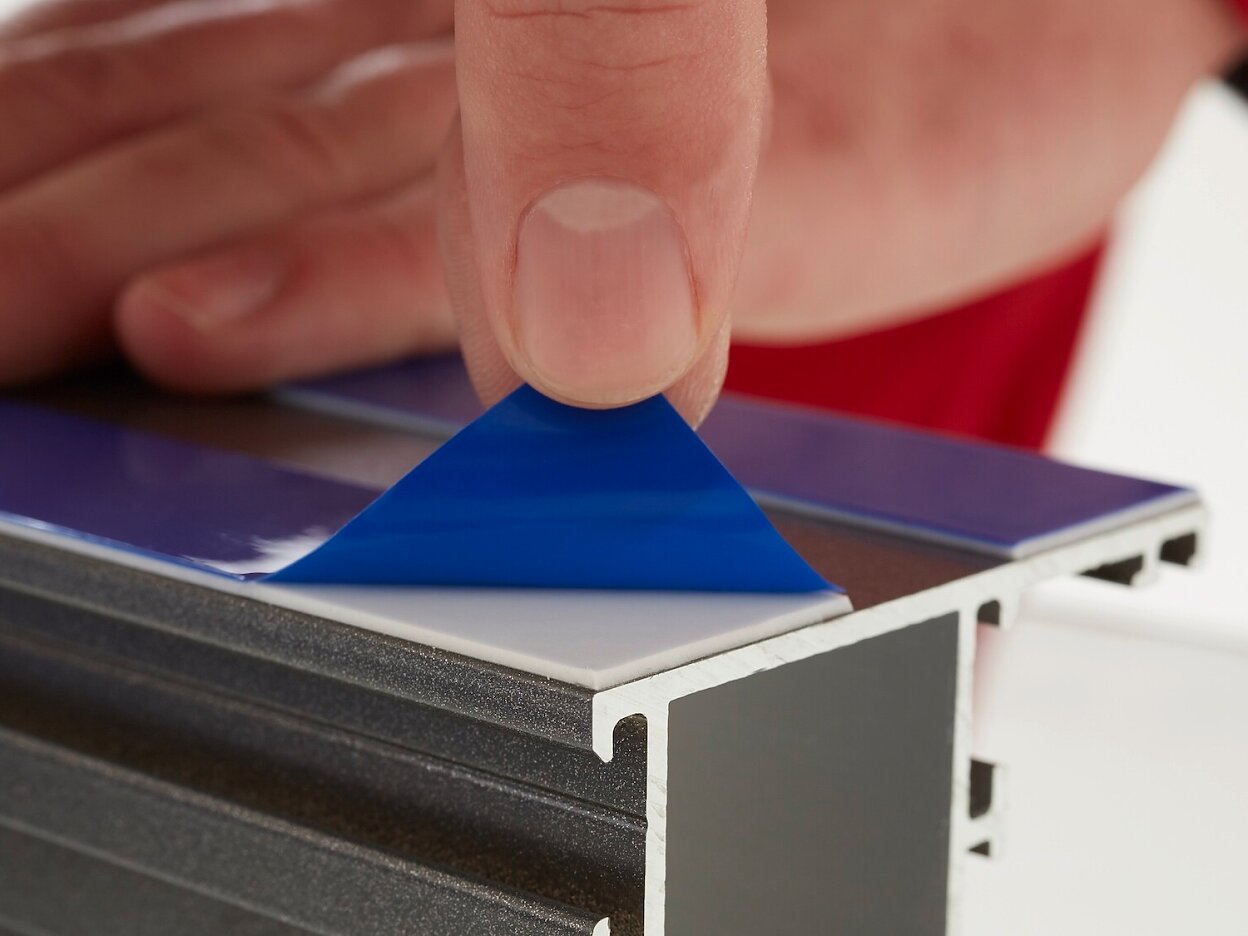

tesa 7044 acxplus 1000 double sided acrylic foam tape step5of8 ap

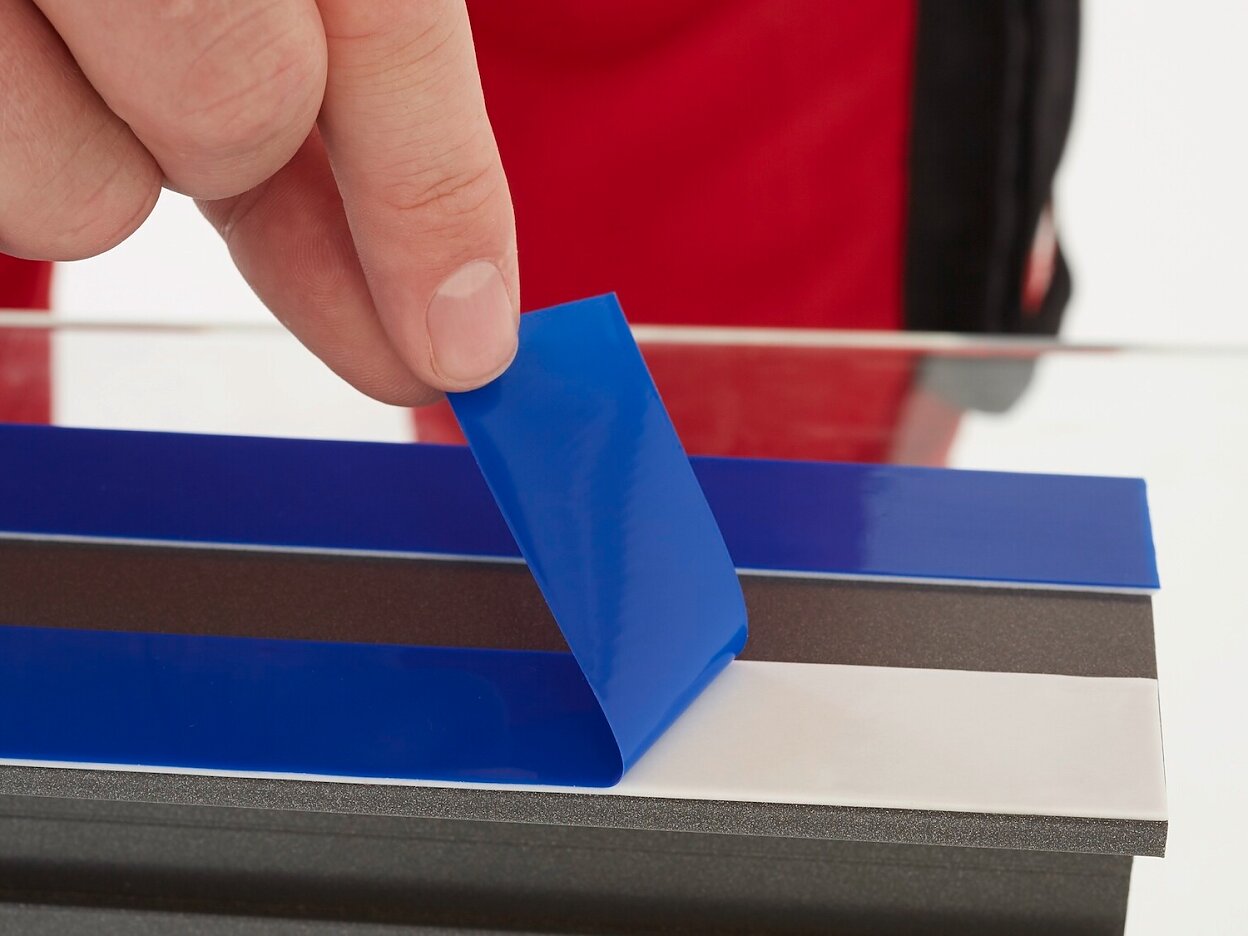

tesa 7044 acxplus 1000 double sided acrylic foam tape step6of8 ap

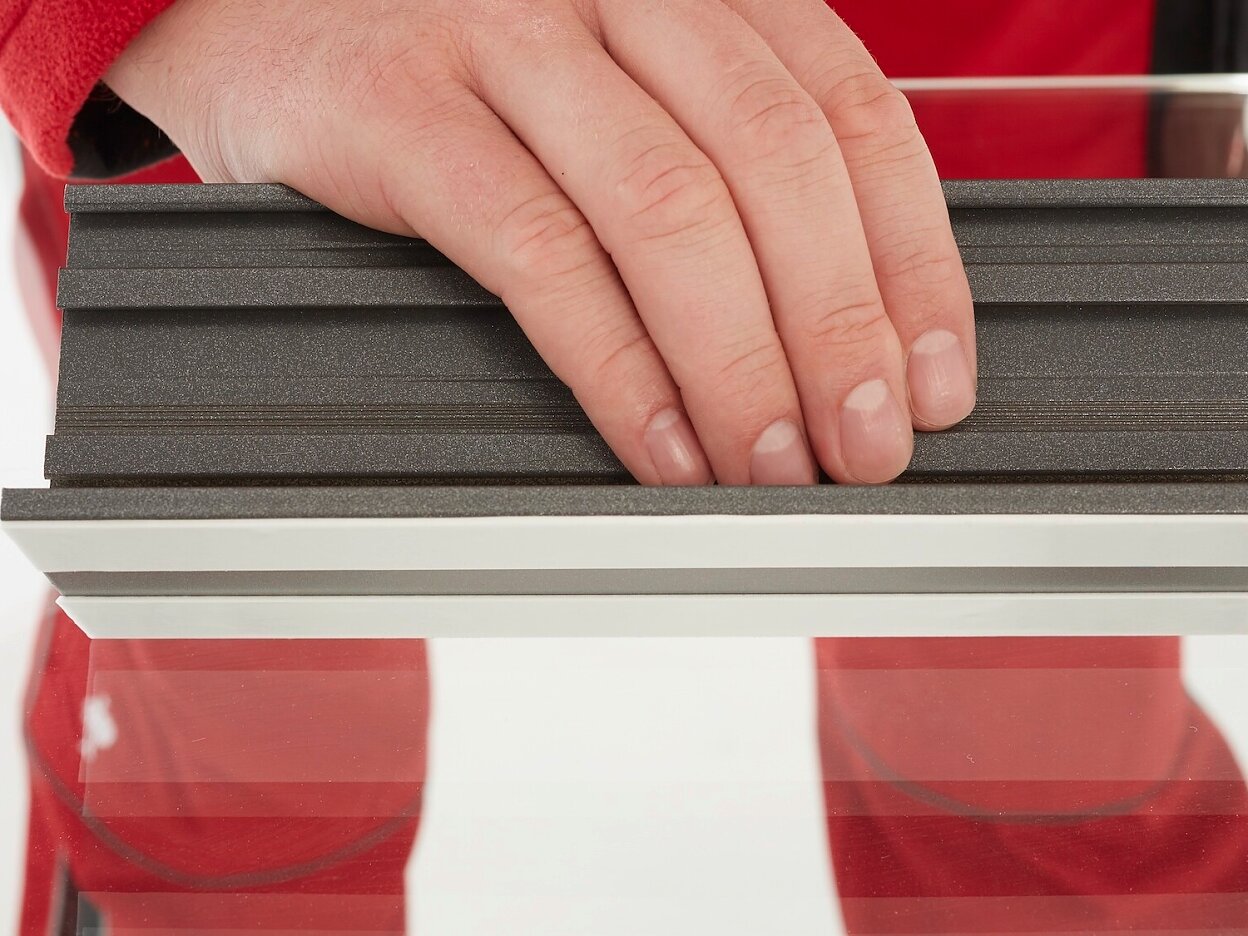

tesa 7044 acxplus 1000 double sided acrylic foam tape step7of8 ap

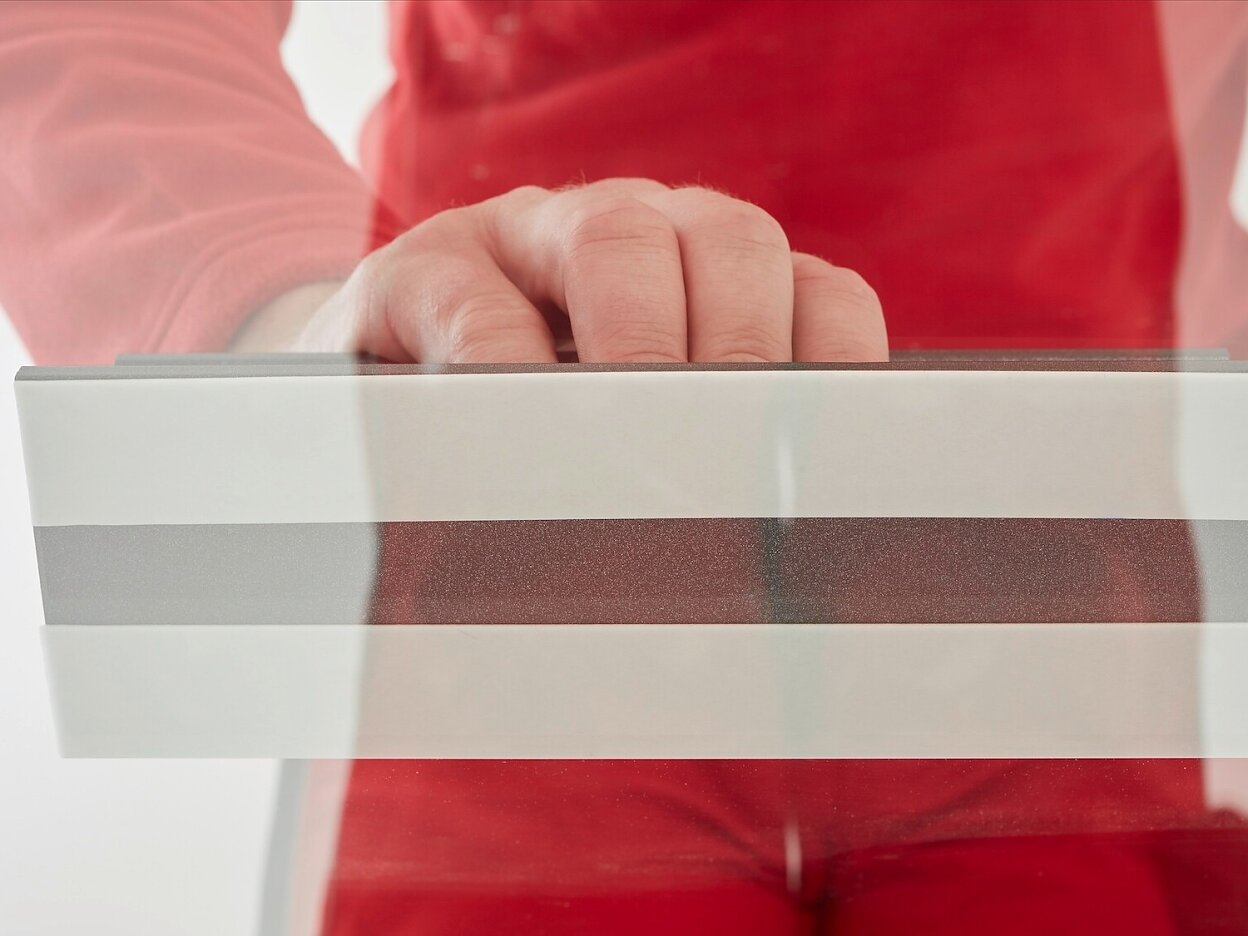

tesa 7044 acxplus 1000 double sided acrylic foam tape step8of8 ap

tesa® ACXplus 704x

tesa-acxplus-7044-1000-double-sided-acrylic-foam-tape-white-070440001928-pr

tesa 7044 acxplus 1000 double sided acrylic foam tape step1of8 ap

tesa 7044 acxplus 1000 double sided acrylic foam tape step2of8 ap

tesa 7044 acxplus 1000 double sided acrylic foam tape step5of8 ap

tesa 7044 acxplus 1000 double sided acrylic foam tape step6of8 ap

tesa 7044 acxplus 1000 double sided acrylic foam tape step7of8 ap

tesa 7044 acxplus 1000 double sided acrylic foam tape step8of8 ap

Technical properties

Backing material

foamed acrylic

Color

grey/white

Total thickness

1000 µm

Type of adhesive

pure acrylic

Elongation at break

710 %

Adhesion properties

Adhesion to ABS (after 3 days)

32 N/cm

Adhesion to Aluminium (after 3 days)

35 N/cm

Adhesion to Glass (after 3 days)

32 N/cm

Adhesion to PMMA (after 3 days)

24 N/cm

Adhesion to Steel (after 3 days)

33 N/cm

Rating properties

Temperature resistance short term

200 °C

Temperature resistance long term

110 °C

Tack

+

Ageing resistance (UV)

++

Humidity resistance

++

Resistance to chemicals

++

Softener resistance

+

Static shear resistance at 23°C

++

Static shear resistance at 70°C

++

T-block

++

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
