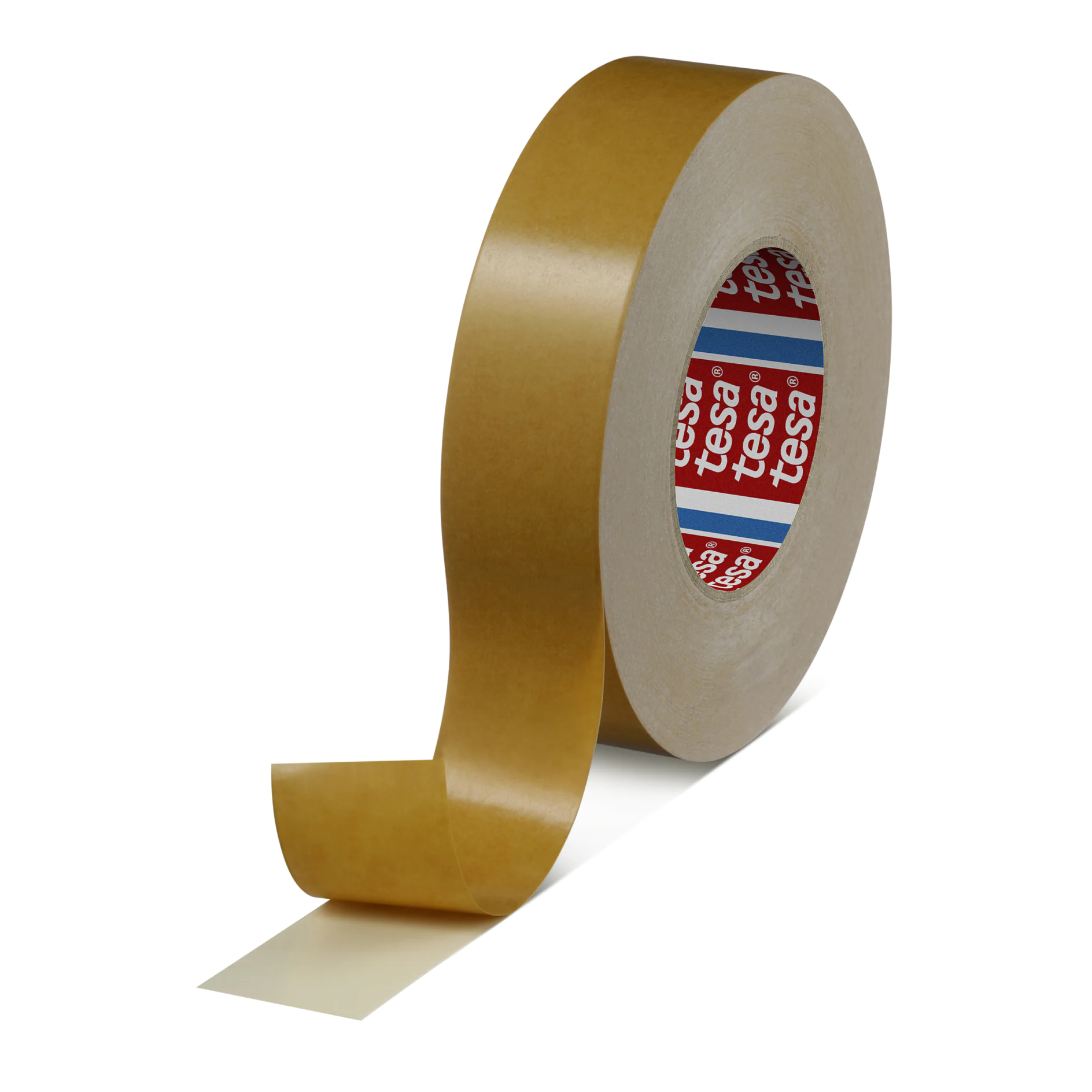

tesa® 88643
Product details and specifications
Product Construction
Backing material | non-woven |
---|---|
Color | translucent |
Colour of liner | white/blue logo |
Total thickness | 140 µm |
Type of adhesive | tackified acrylic |
Type of liner | PE-coated paper |
Product Construction
Backing material | non-woven |
---|---|
Color | translucent |
Colour of liner | white/blue logo |
Total thickness | 140 µm |
Type of adhesive | tackified acrylic |
Type of liner | PE-coated paper |
Properties / Performance Values
Temperature resistance short term | 110 °C |
---|---|
Tack | good |
Temperature resistance long term | 70 °C |
Properties / Performance Values
Temperature resistance short term | 110 °C |
---|---|
Tack | good |
Temperature resistance long term | 70 °C |
Adhesion to Values
Adhesion to ABS (initial) | 11.2 N/cm |
---|---|
Adhesion to ABS (after 3 days) | 13.2 N/cm |
Adhesion to Glass (initial) | 12.7 N/cm |
Adhesion to Glass (after 3 days) | 15 N/cm |
Adhesion to PC (initial) | 10.5 N/cm |
Adhesion to PC (after 3 days) | 12.2 N/cm |
Adhesion to PE (initial) | 4.4 N/cm |
Adhesion to PE (after 3 days) | 4.7 N/cm |
Adhesion to PET (initial) | 8.3 N/cm |
Adhesion to PP (initial) | 3 N/cm |
Adhesion to PP (after 3 days) | 3.2 N/cm |
Adhesion to PVC (initial) | 6.4 N/cm |
Adhesion to Steel (initial) | 9.6 N/cm |
Adhesion to Steel (after 3 days) | 11.2 N/cm |
Adhesion to Values
Adhesion to ABS (initial) | 11.2 N/cm |
---|---|
Adhesion to ABS (after 3 days) | 13.2 N/cm |
Adhesion to Glass (initial) | 12.7 N/cm |
Adhesion to Glass (after 3 days) | 15 N/cm |
Adhesion to PC (initial) | 10.5 N/cm |
Adhesion to PC (after 3 days) | 12.2 N/cm |
Adhesion to PE (initial) | 4.4 N/cm |
Adhesion to PE (after 3 days) | 4.7 N/cm |
Adhesion to PET (initial) | 8.3 N/cm |
Adhesion to PP (initial) | 3 N/cm |
Adhesion to PP (after 3 days) | 3.2 N/cm |
Adhesion to PVC (initial) | 6.4 N/cm |
Adhesion to Steel (initial) | 9.6 N/cm |
Adhesion to Steel (after 3 days) | 11.2 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
