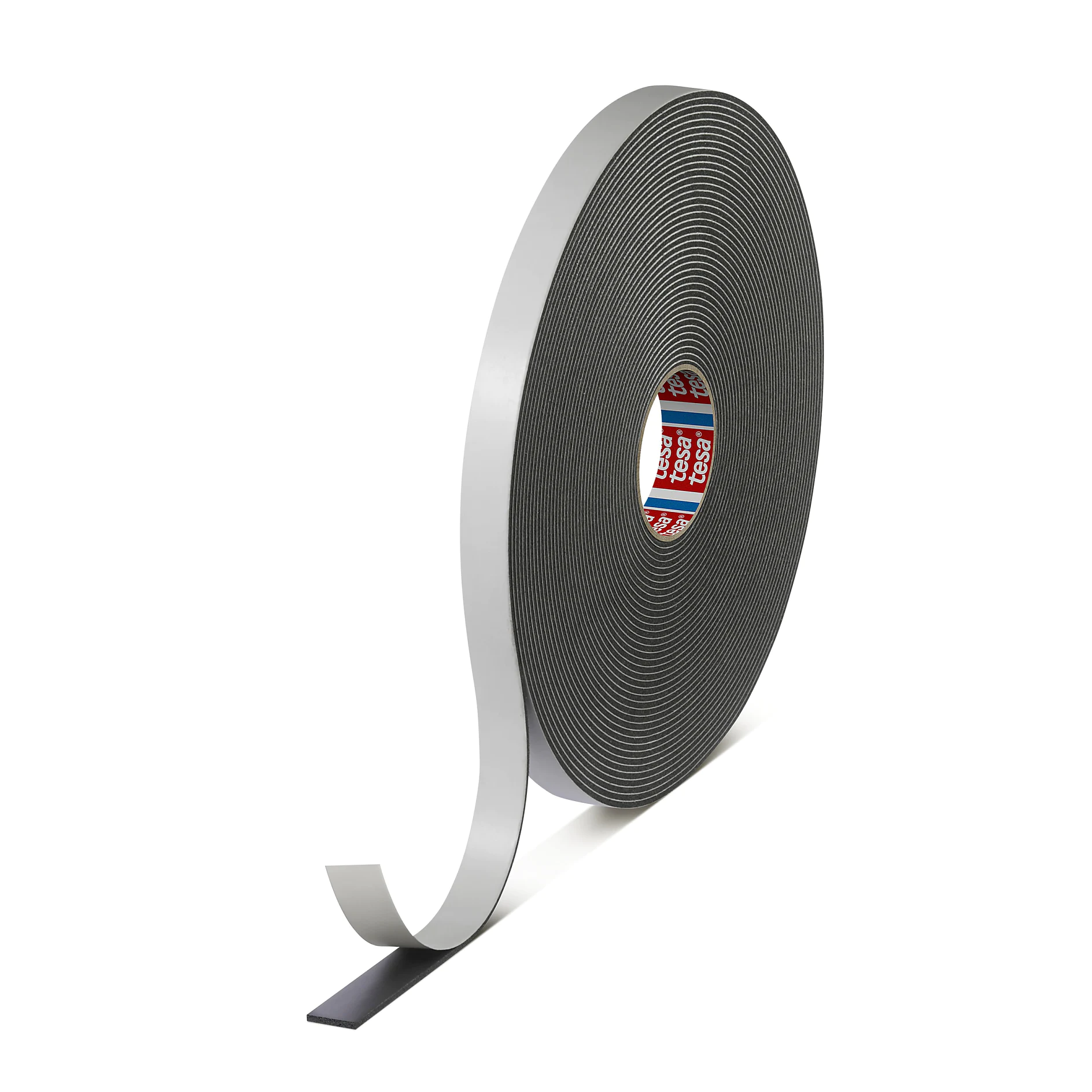

Double-sided PE foam mounting tape

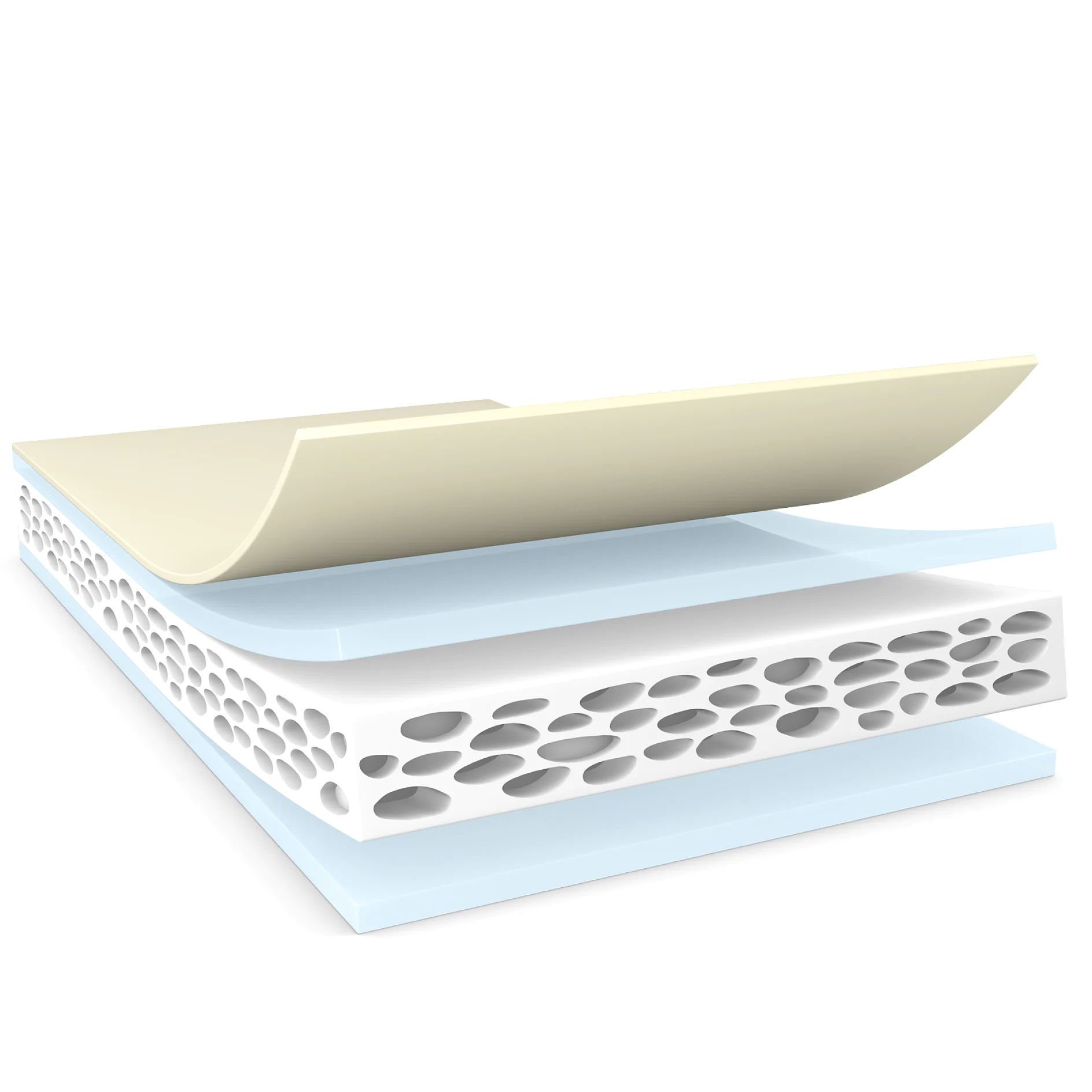

tesa® 62932 is a double sided PE foam tape for constructive mounting applications. It consists of a highly conformable closed cell PE foam backing and a tackified acrylic adhesive. The foam tape features good adhesion on highly structured surfaces as well as a high tack and a short dwell time until reaching final adhesion. tesa® 62932 is able to withstand humidity, chemicals, softeners and UV light. tesa® 62932 is a highly versatile adhesive, offering excellent immediate adhesion on numerous substrates, even at low bonding pressures. The double sided foam tape is fully suitable for outdoor use, featuring water-, ageing- and UV-resistance. The acrylic foam offers very good cold shock absorption, is capable of levelling out different thermal expansions and offers excellent bonding strength. Due to the foam’s conformability, tesa® 62932 has a strong hold even on irregular or rough substrates.
| Backing material | PE foam |
|---|---|
| Color | black/white |
| Total thickness | 500 µm |
| Type of adhesive | tackified acrylic |
| Backing material | PE foam |
|---|---|
| Color | black/white |
| Total thickness | 500 µm |
| Type of adhesive | tackified acrylic |
| Elongation at break | 270 % |
|---|---|
| Tensile strength | 8 N/cm |
| Static shear resistance at 23°C | good |
| Ageing resistance (UV) | good |
| Temperature resistance long term | 80 °C |
| Humidity resistance | very good |
| Temperature resistance short term | 80 °C |
| Tack | good |
| Static shear resistance at 40°C | good |
| Chemical resistance | good |
| Softener resistance | medium |
| Elongation at break | 270 % |
|---|---|
| Tensile strength | 8 N/cm |
| Static shear resistance at 23°C | good |
| Ageing resistance (UV) | good |
| Temperature resistance long term | 80 °C |
| Humidity resistance | very good |
| Temperature resistance short term | 80 °C |
| Tack | good |
| Static shear resistance at 40°C | good |
| Chemical resistance | good |
| Softener resistance | medium |
| Adhesion to ABS (initial) | 14 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 17 N/cm |
| Adhesion to Aluminium (initial) | 13 N/cm |
| Adhesion to Aluminium (after 14 days) | 17 N/cm |
| Adhesion to PC (initial) | 9 N/cm |
| Adhesion to PC (after 14 days) | 17 N/cm |
| Adhesion to PE (initial) | 1.7 N/cm |
| Adhesion to PE (after 14 days) | 3 N/cm |
| Adhesion to PET (initial) | 12.5 N/cm |
| Adhesion to PET (after 14 days) | 17 N/cm |
| Adhesion to PP (initial) | 1.8 N/cm |
| Adhesion to PP (after 14 days) | 3.3 N/cm |
| Adhesion to PS (initial) | 10.5 N/cm |
| Adhesion to PS (after 14 days) | 17 N/cm |
| Adhesion to PVC (initial) | 14.5 N/cm |
| Adhesion to PVC (after 14 days) | 17 N/cm |
| Adhesion to Steel (initial) | 13 N/cm |
| Adhesion to Steel (after 14 days) | 17 N/cm |
| Adhesion to ABS (initial) | 14 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 17 N/cm |
| Adhesion to Aluminium (initial) | 13 N/cm |
| Adhesion to Aluminium (after 14 days) | 17 N/cm |
| Adhesion to PC (initial) | 9 N/cm |
| Adhesion to PC (after 14 days) | 17 N/cm |
| Adhesion to PE (initial) | 1.7 N/cm |
| Adhesion to PE (after 14 days) | 3 N/cm |
| Adhesion to PET (initial) | 12.5 N/cm |
| Adhesion to PET (after 14 days) | 17 N/cm |
| Adhesion to PP (initial) | 1.8 N/cm |
| Adhesion to PP (after 14 days) | 3.3 N/cm |
| Adhesion to PS (initial) | 10.5 N/cm |
| Adhesion to PS (after 14 days) | 17 N/cm |
| Adhesion to PVC (initial) | 14.5 N/cm |
| Adhesion to PVC (after 14 days) | 17 N/cm |
| Adhesion to Steel (initial) | 13 N/cm |
| Adhesion to Steel (after 14 days) | 17 N/cm |
Download the files below for more technical details and information on this product.
