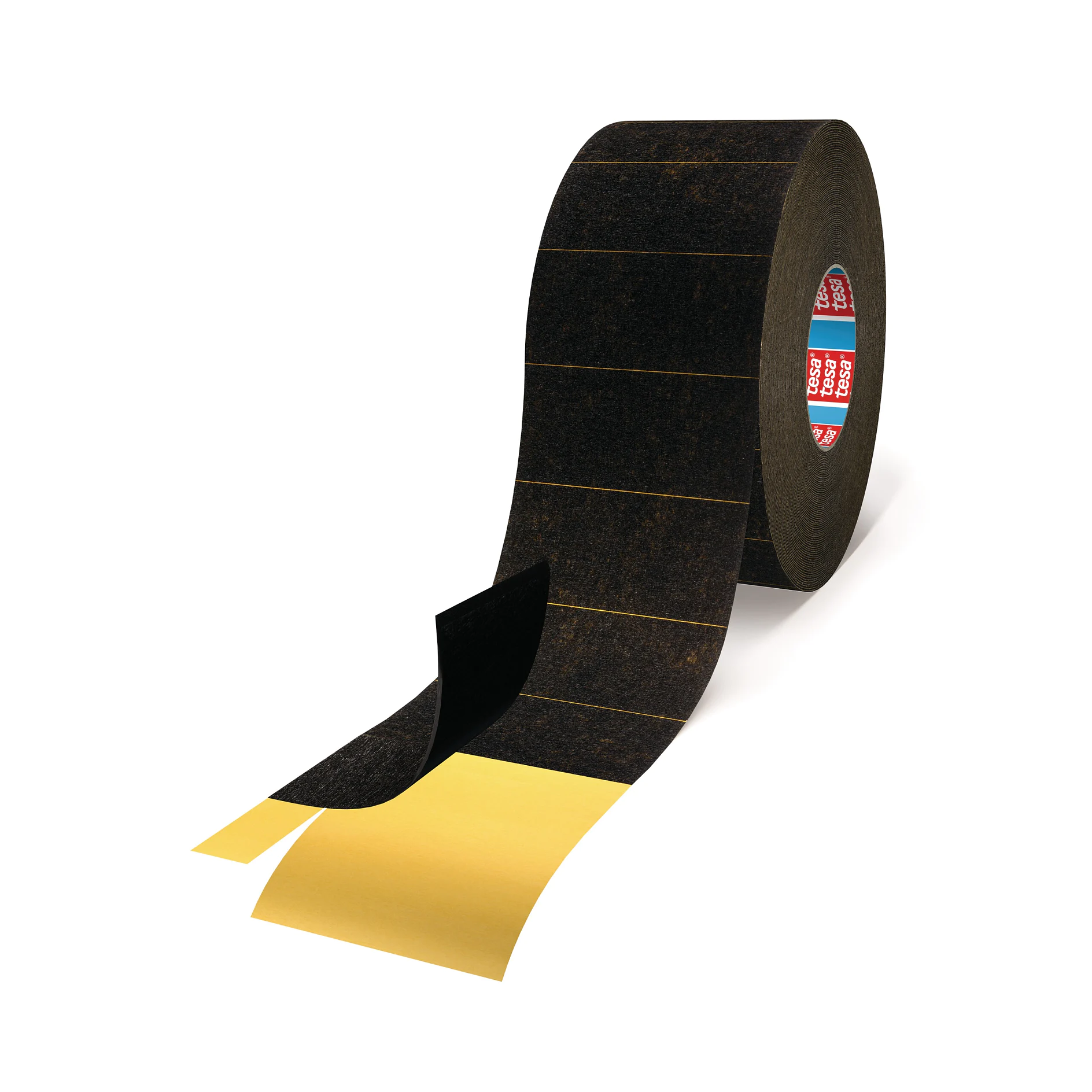

tesa® 50128 Low VOC

390 µm modified acrylic adhesive with PP non-woven backing

Product description

tesa® 50128 is a 390 µm PP non-woven tape with a modified acrylic adhesive. This tape has been designed for a wide range of automotive interior applications like immediate and secure mounting of cables to headliners. Due to its low VOC property it is particularly designed to meet automotive interior requirements.
This tape is characterized by a high adhesion strength on critical surfaces like nonpolar and rough substrates.

tesa® 50128 is available in black and white and as a die-cut solution and is suitable for automatic dispensers.

Main features:

  • Very good damping properties
  • Low VOC (according to VDA278) – no critical substances detectable
  • High peel resistance on irregular, rough, and nonpolar surfaces
  • High shear strength
  • Tear resistant
  • Suitable for automatic tape dispensers

Product details and specifications

Application Fields

tesa® 50128 is suitable for mounting thick cables and wire harnesses on different components inside a car. It ensures an extremely quick and secure fixation of flat and round cables.
To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Example applications are:
  • Mounting thick and heavy cables to headliners with high initial performance
  • Die-cut solutions are available
  • According to VDA278 analysis, our CM tapes do not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by Health, Labour and Welfare Ministry (Japan).

tesa’s automation and application department provides customized equipment and self-designed application tools to enhance productivity.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 50128_en-US 72.7 kB
Get in contact with us!

Contact us

Something went wrong. Please try again later.

Product comparison

Name of product
50128-00000-00
tesa® 50128 Low VOC

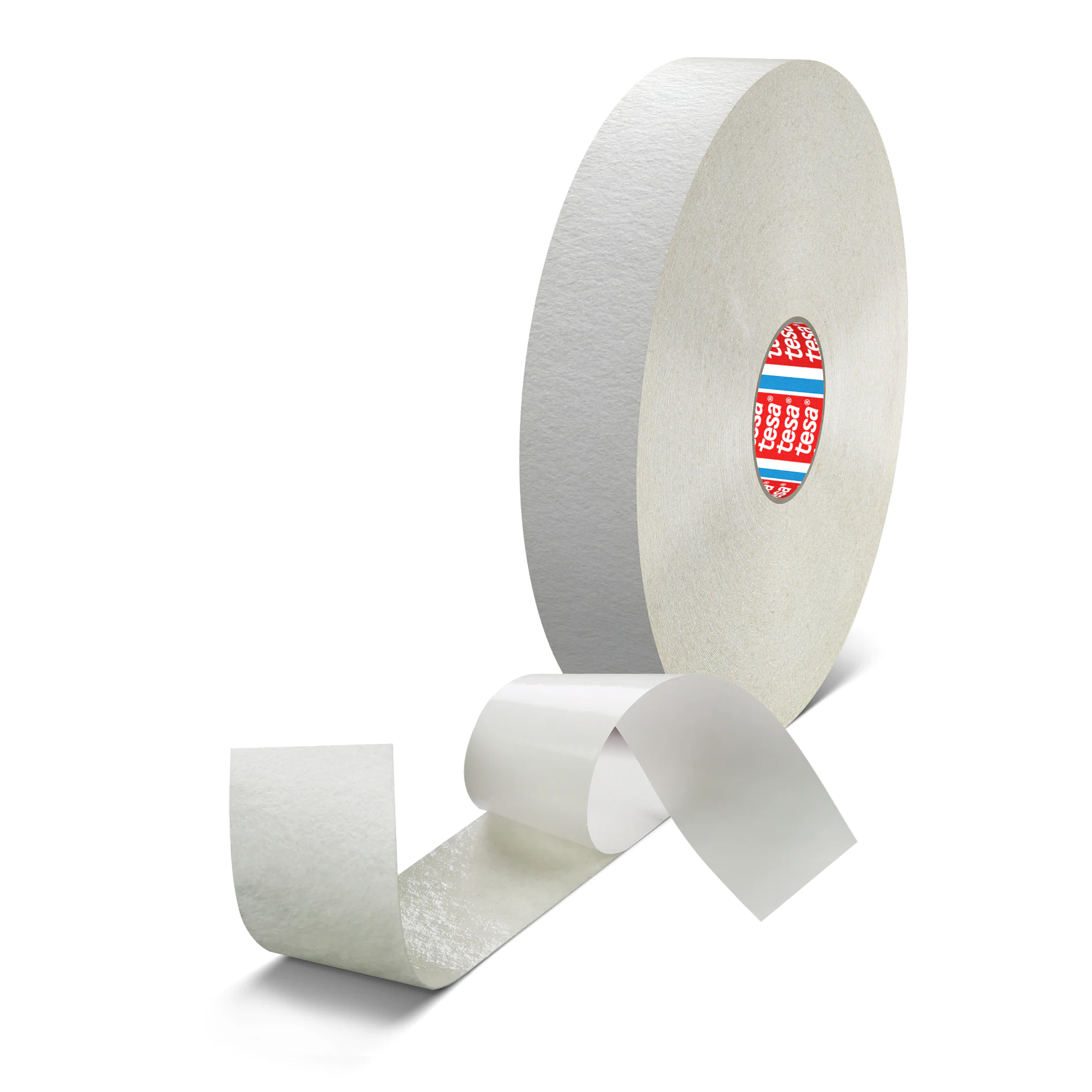

tesa-50118-pv1-540-acrylic-adhesive-PET-fleece-white-501180000701-pr
tesa® 50118 PV2 Low VOC

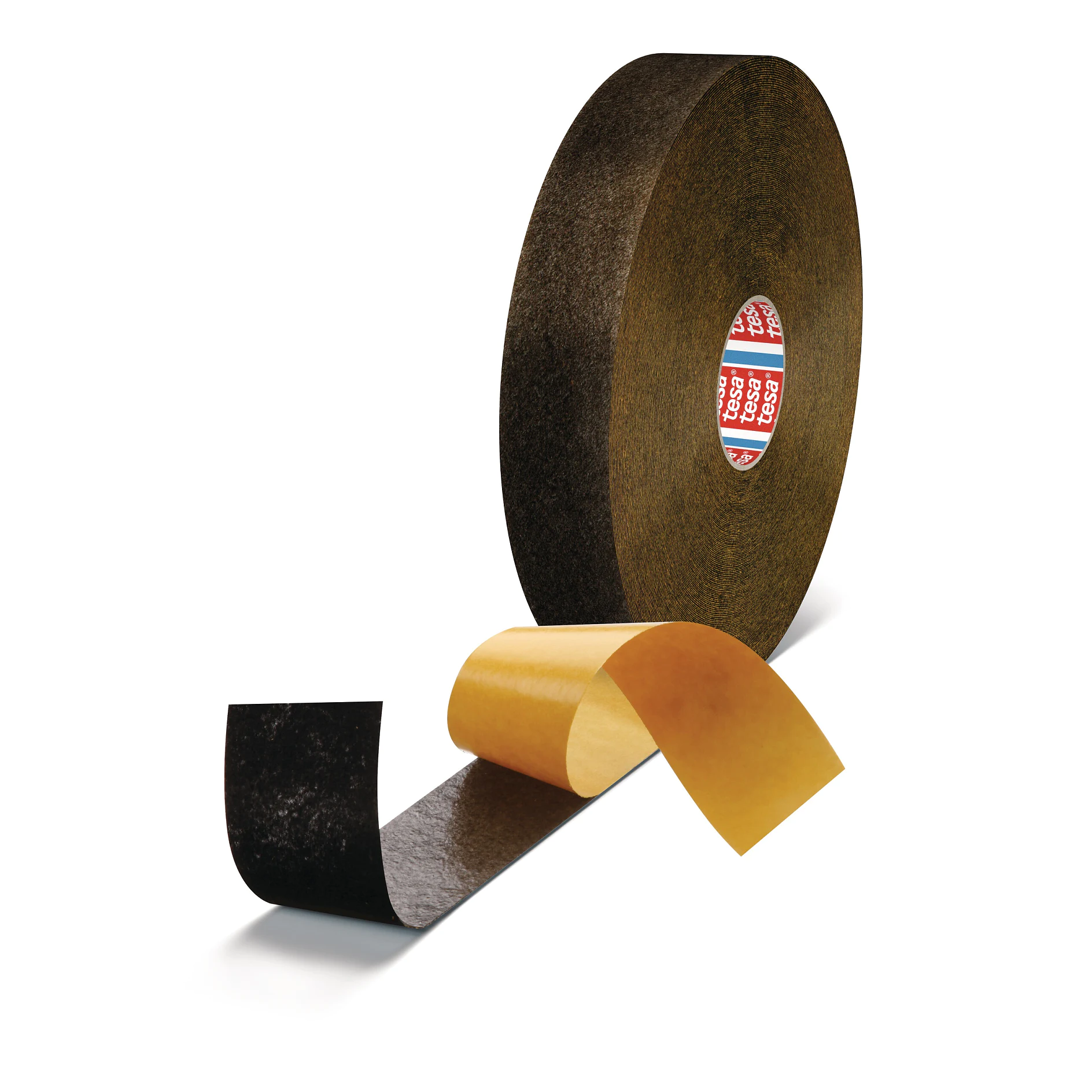

tesa-52215-150micrometer-double-sided-non-woven-tape-522150001000-pr
tesa® 52215 Ultra Low VOC

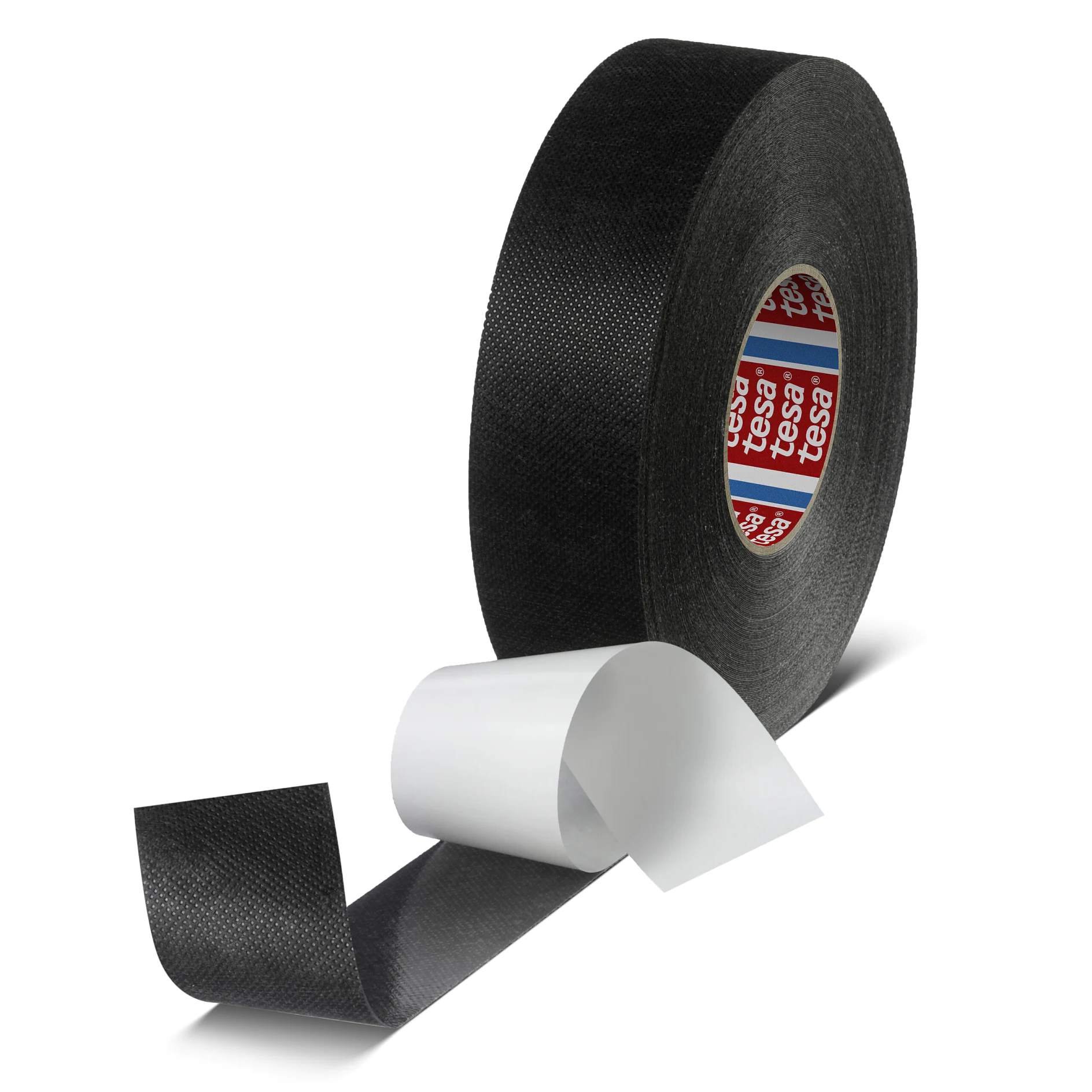

tesa_54118_pr_002_fullsize
tesa® 54118 Precision Die Cuts
tesa_50118_pr_002_fullsize
tesa® 50118 PV1
Adhesive Type
modified acrylic
modified acrylic
water-based acrylic
acrylic
Backing material
non-woven
PET fleece
non-woven
PET fleece
Thickness of tape
390 µm
540 µm
540 µm
Tensile strength
33 N/cm
31 N/cm
10 N/cm
31 N/cm
Tack
very good
very good
good
very good
Total thickness
150 µm
