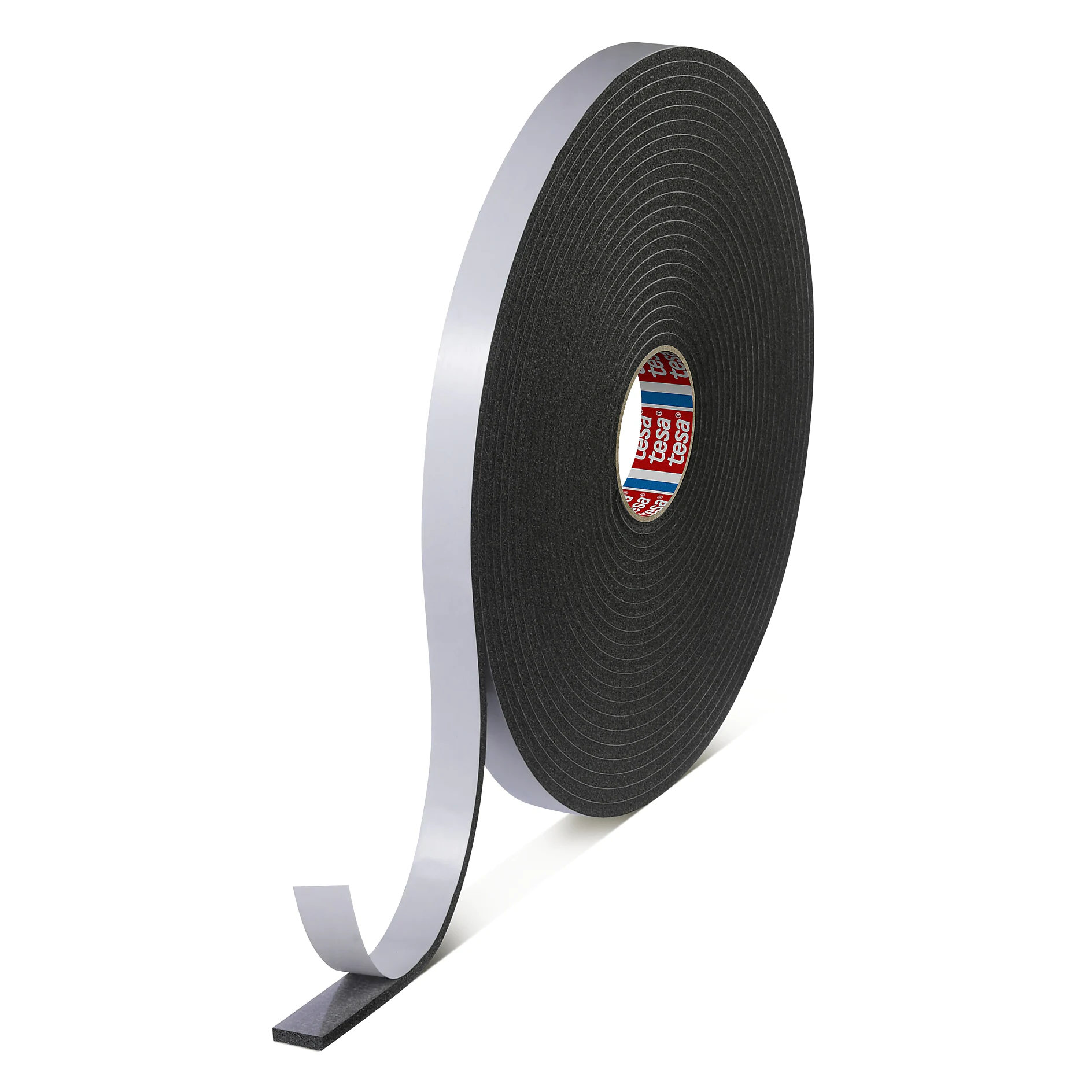

tesa® 64706

PVC closed cell single sided foam tape 6.4mm thick (black)

Product description

tesa® 64706 foam tape consists of a closed cell polyvinyl chloride (PVC) foam backing with an acrylic adhesive on one side. The closed cell foam can create a dust and moisture seal when compressed and is conformable to help seal uneven surfaces. The acrylic adhesive allows for easy application to various surface materials.

- Adheres to wide variety of surfaces
- Foam backing will absorb sound and dampen vibration
- Resistant to moisture & UV
- Compressible foam can be used for die cutting and gasket

Product details and specifications

Application Fields

• Windows and doors
• Vibration damping and sealing in building construction
• Sealing between panels in trucks, buses, and caravans
• Vibration dampening for transport applications
• Sealing access panels on industrial machinery
• Sealing electrical housings, enclosures, and cabinet doors

Backing material	PVC foam
Color	black
Total thickness	6.4 mm
Type of adhesive	acrylic
Type of liner	coated paper

Elongation at break	130 %
Tensile strength	20
Temperature resistance max.	90 °C
Hardness - Shore 00	35 STK
Thermal conductivity z-direction	0.037 W/mK

Foam density: 180 kg/m³ ASTM D792
Foam compression set (50%): ≤10% ASTM D1056
Foam 25% compression strength: 35 kPa ASTM D1056
Fire resistance: FMVSS 302

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 64706_en-AU 61.3 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Name of product	tesa® 64706	tesa® 87510	tesa® 87512	tesa® 87506	tesa® 87503	tesa® 64703	tesa® 63615	tesa® flameXtinct 45001 flameXtinct	tesa® 62934	tesa® 4957	tesa® 62508
Total thickness	6.4 mm	10 mm	12 mm	6 mm	3 mm	3.2 mm	1,500 µm	1,000 µm	800 µm	1,100 µm	800 µm
Type of adhesive	acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	acrylic	tackified acrylic	FR acrylic	tackified acrylic	tackified acrylic	tackified acrylic
Backing material	PVC foam	PE foam	PE foam	PE foam	PE foam	PVC foam	PE foam	FR PE foam	PE foam	PE foam	PE foam
Color	black	grey	grey	grey	grey	black	black/white	white	black/white	black/white	black/white
Adhesion to Steel (initial)		4 N/cm	4 N/cm	4 N/cm	4 N/cm	6.5 N/cm	12 N/cm	19.2 N/cm	17 N/cm	4 N/cm	13.5 N/cm
Adhesion to Steel (after 14 days)		5 N/cm	5 N/cm	5 N/cm	5 N/cm	8 N/cm	12 N/cm	22 N/cm	17 N/cm	4 N/cm	13.5 N/cm
Adhesion to PVC (initial)		3 N/cm	3 N/cm	3 N/cm	3 N/cm		6 N/cm		17 N/cm	4 N/cm	8 N/cm
