Additional Info
REACH and RoHS compliant
tesa® 60406

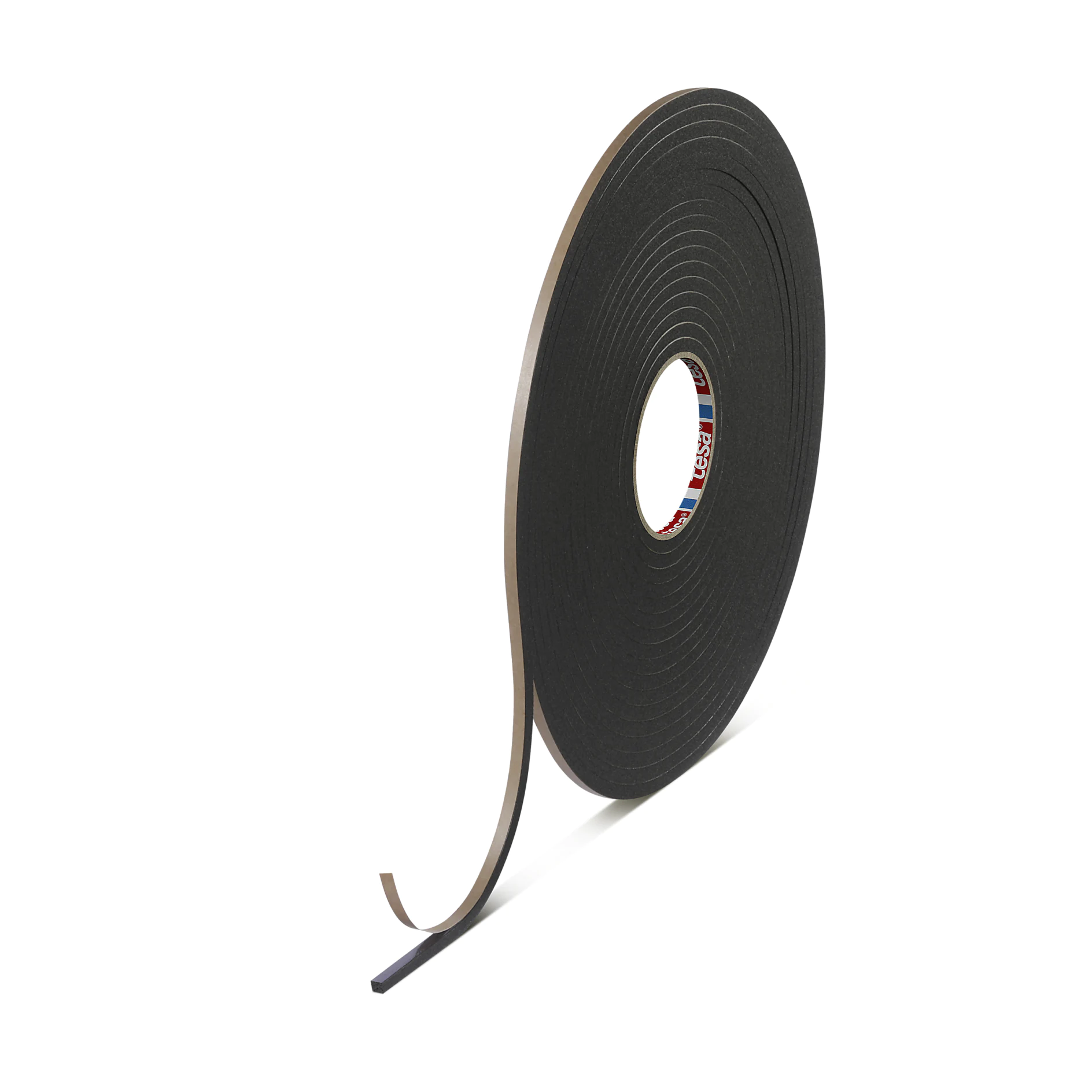

Hard grade PVC closed cell double sided foam tape 6.4mm thick (black). Ideal for use in the glazing market
Product description
tesa® 60406 is a 6.4mm hard grade closed cell PVC foam tape with a paper liner and an aggressive acrylic adhesive on both sides. The closed cell foam can create a waterproof barrier when compressed while still being flexible enough to seal uneven surfaces. The high-density foam has excellent resistance to water penetration, making it the ideal choice for sealing applications in the glazing market. tesa® 60406 is resistant to fungi, oxidation, UV and ozone. It also complies with A.A.M.A.**810-85 type 1 and AS 2047 standards. tesa® 60406 has a permanently elastic adhesive and is not suitable for bonding or mounting applications.
Product details and specifications
Application Fields
- tesa® 60406 foam tape is an approved primary glazing seal for domestic and commercial glazing systems
- The foam tape is used as a primary seal between the glass and metal frame in commercial and domestic windows and window walls
- The sealing tape is ideal for damping vibrations between the metal frame and cladding in the transport industry
- tesa® 60406 is used as a die cut corner seal in domestic and commercial windows
- The tape is available in a range of thicknesses: 1.6mm, 3.2mm, 4.8mm and 6.4mm
Product Construction
| Backing material | PVC foam |
|---|---|
| Color | black |
| Total thickness | 6400 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Product Construction
| Backing material | PVC foam |
|---|---|
| Color | black |
| Total thickness | 6400 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Properties / Performance Values
| Elongation at break | 160 % |
|---|---|
| Temperature resistance long term | 90 °C |
Properties / Performance Values
| Elongation at break | 160 % |
|---|---|
| Temperature resistance long term | 90 °C |
Adhesion to Values
| Adhesion to Glass (after 14 days) | 7.8 N/cm |
|---|
Adhesion to Values
| Adhesion to Glass (after 14 days) | 7.8 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
