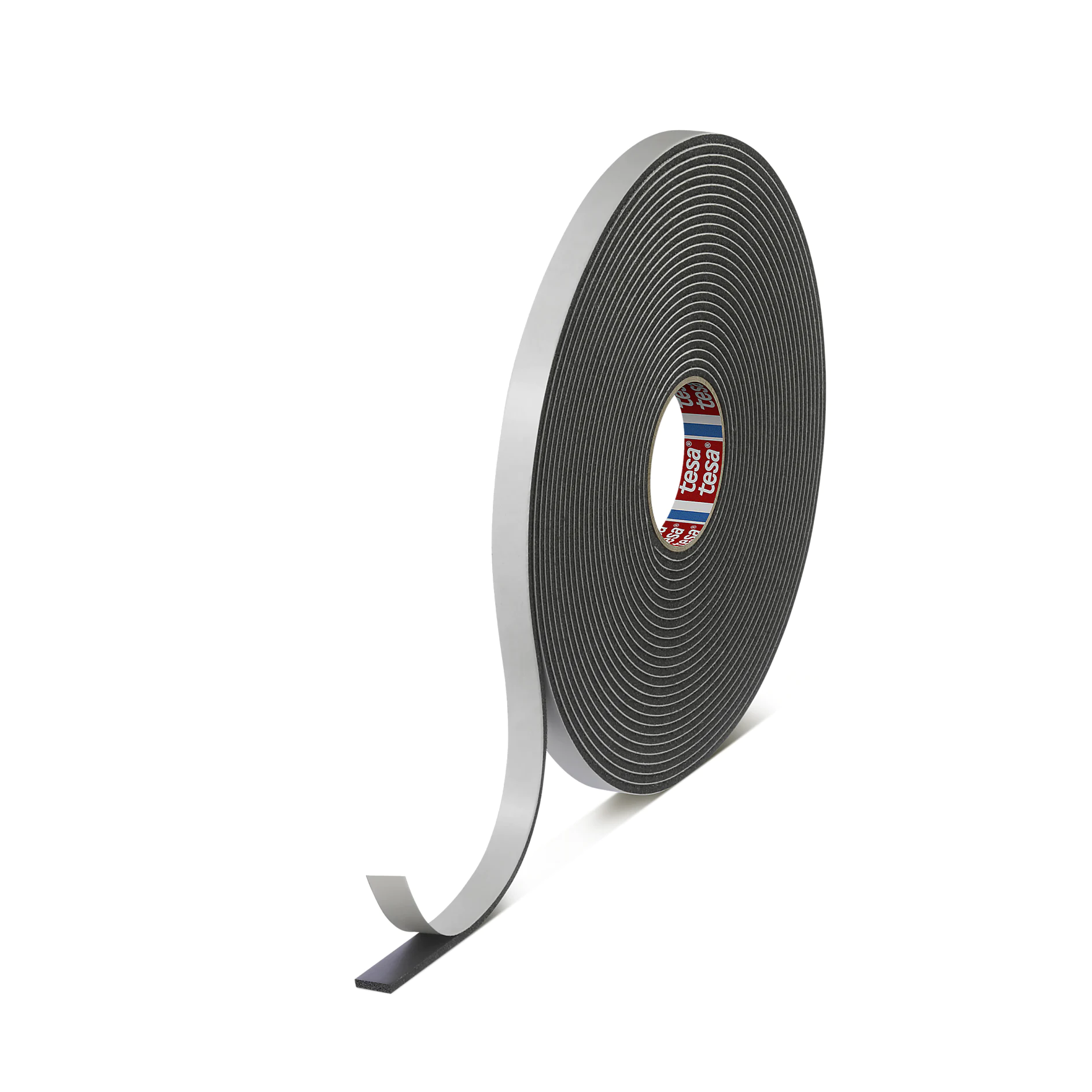

tesa® 60105

Soft grade PVC closed cell single sided foam tape 4.8mm thick (black)

tesa-60105-super-soft-pvc-closed-cell-single-sided-foam-tape-601050000400-pr
Product description

tesa® 60105 is a 4.8mm thick soft grade closed cell polyvinyl chloride (PVC) foam tape with an acrylic adhesive on one side. The closed cell foam can create a waterproof barrier when compressed, while the soft grade PVC foam is flexible and conformable to help seal uneven surfaces. Even after long periods of holding heavy weight, it will rapidly return to its original state. The PVC foam tape is resistant to UV, ozone, oxidation and fungi. The black foam tape version is flame retardant to FMVSS 302 and approved for use in the automotive industry. The tape is available in black and grey, in additional thicknesses: 3.2mm (tesa® 60103), 6.4mm (tesa® 60106), 9.5mm (tesa® 60109) and 12.7mm (tesa® 60112).

Product details and specifications

Application Fields

  • tesa® 60105 is suitable for a number of sealing applications, especially on uneven surfaces including corrugated sheeting which requires sealing
  • The tape is used for sealing panels on portable buildings, caravan panels or dam walls
  • tesa® 60105 is used for sound reduction on aluminium boat hulls
  • The foam tape is used as a vibration dampener on automotive weather shields
  • The black tape acts as a flame retardant

Product Construction

Backing material PVC foam
Total thickness 4800 µm
Type of adhesive acrylic

Properties / Performance Values

Elongation at break 150 %
Temperature resistance max. 80 °C
Chemical resistance good
Flame retardance good
Tensile strength cm2 17 N/cm²
Suitable for die cutting yes
Hardness - Shore 00 21 STK
Water resistance very good
Temperature resistance min. -40 °C
Compression set 4 %

Adhesion to Values

Adhesion to steel 6 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60105_en-AU 54.6 kB
