Additional Info
REACH and RoHS compliant

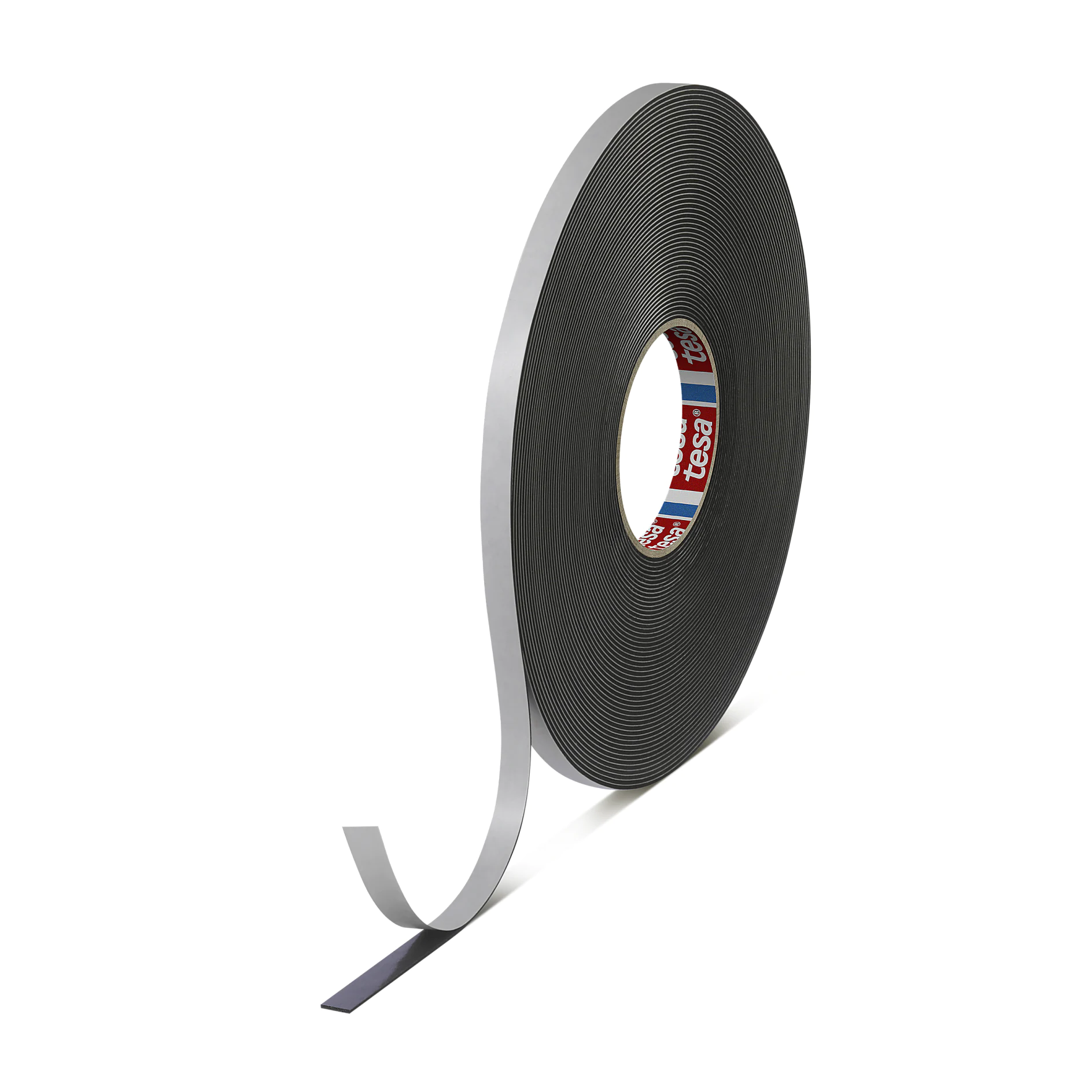

tesa® 61101
EPDM rubber closed cell single sided foam tape 1.6mm thick (black)
Product description
tesa® 61101 is a high-performance 1.6mm thick closed cell EPDM foam tape with an acrylic adhesive on one side. The EPDM foam is non-staining, non-corrosive and electrically non-conductive. The foam offers high temperature resistance (-40°C to 105°C) as well as resistance to UV light and ozone. tesa® 61101 is FDA approved to Section 177.26 (non-toxic, non-carcinogenic) standards and will not contaminate drinking water. It complies with auto industry standards and is compatible with plastics. The EPDM foam is flame retardant for thicknesses ≥ 2.5mm according to Federal Motor Vehicle Safety Standard (FMVSS 302). The tape is available in six other thicknesses: 3.2 mm (tesa® 61102), 4.8 mm (tesa® 61103), 6.4 mm (tesa® 61104), 9.5 mm (tesa® 61105), 12.7 mm (tesa® 61106) and 19 mm (tesa® 61107).
Product details and specifications
Application Fields
- tesa® 61101 foam tape is an ideal sealing solution for a wide range of sealing applications across the automotive, marine, food and beverage, enclosure and window glazing industries.
- Sealing electrical enclosures and switch cabinets
- Sealing exterior and interior lighting
- Sealing industrial access doors and hatches
- Sealing hatches on boats
- Sealing domestic and commercial glazing systems
- Sealing externally mounted air conditioning equipment
- REACH and RoHS Certified
Product Construction
| Backing material | EPDM rubber foam |
|---|---|
| Total thickness | 1600 µm |
| Type of adhesive | acrylic |
Product Construction
| Backing material | EPDM rubber foam |
|---|---|
| Total thickness | 1600 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 175 % |
|---|---|
| Flame retardance | very good |
| Water resistance | very good |
| Temperature resistance min. | -40 °C |
| Compression set | 7 % |
| Tensile strength cm2 | 54 N/cm² |
| Hardness - Shore 00 | 37 STK |
| Suitable for die cutting | yes |
| Temperature resistance max. | 105 °C |
Properties / Performance Values
| Elongation at break | 175 % |
|---|---|
| Flame retardance | very good |
| Water resistance | very good |
| Temperature resistance min. | -40 °C |
| Compression set | 7 % |
| Tensile strength cm2 | 54 N/cm² |
| Hardness - Shore 00 | 37 STK |
| Suitable for die cutting | yes |
| Temperature resistance max. | 105 °C |
Adhesion to Values
| Adhesion to steel | 12 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 12 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
