tesa® 60257
250µm double sided grey electrically conductive woven tape
Product description

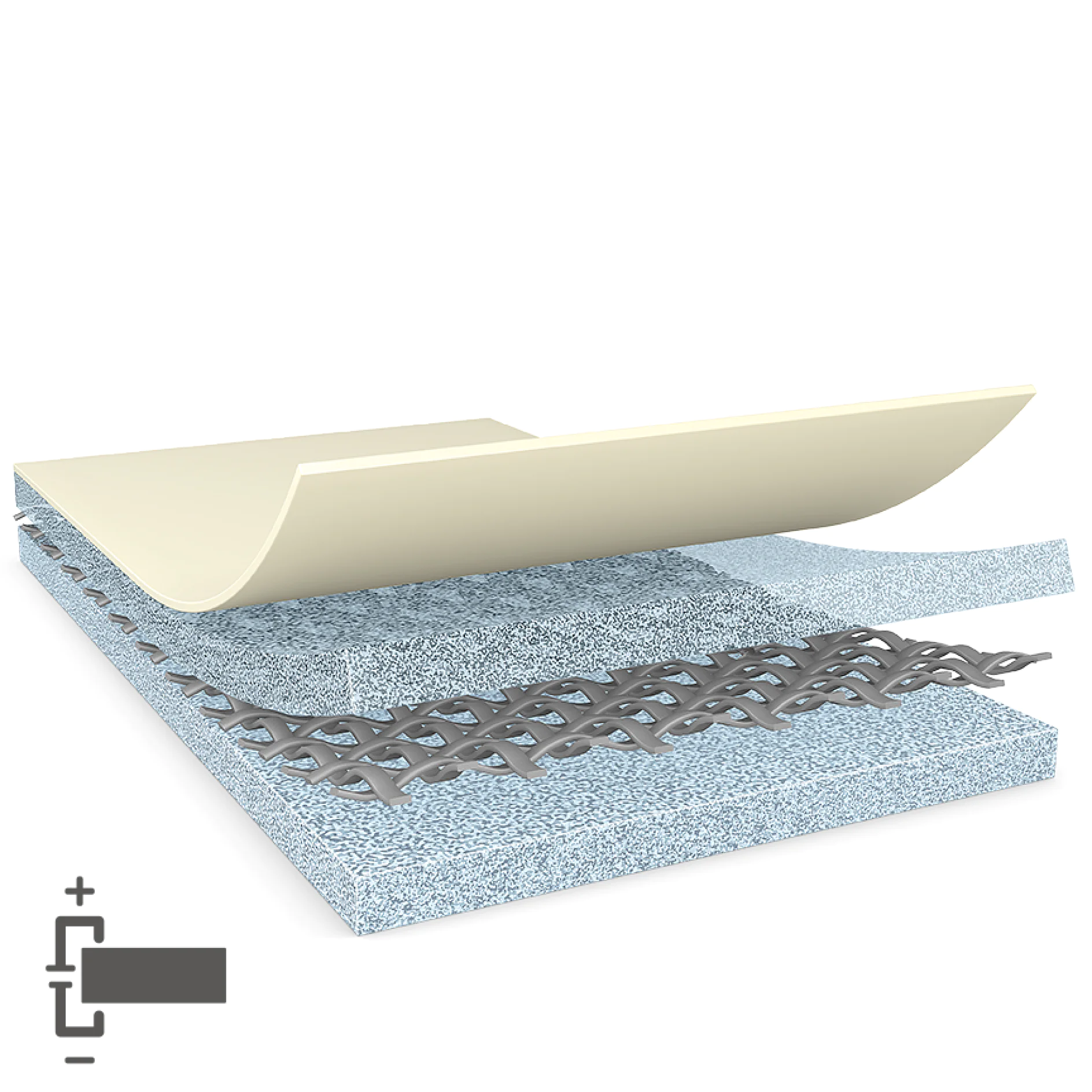

tesa® 60257 is a grey double sided electrically conductive self adhesive tape. It consists of an electrically conductive woven backing and an electrically conductive acrylic adhesive.
tesa® 60257 features especially:
- Thickness: 250µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good adhesion level even at harsh environmental conditions
- Tear resistant backing which provides very good dimensional stability
Product details and specifications
Application Fields
- EMC applications, such as grounding
- Electrostatic discharge applications
| Backing material | conductive woven |
|---|---|
| Color | grey |
| Colour of liner | white/blue logo |
| Thickness of liner | 120 µm |
| Total thickness | 250 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PE-coated paper |
| Temperature resistance short term | 160 °C |
|---|---|
| Static shear resistance at 23°C | medium |
| Static shear resistance at 40°C | low |
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Release of liner | easy |
| Adhesion to Steel (initial) | 4.8 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 10.8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
Contact us
Product comparison
Last updated on 16 Apr 2024
