Product information

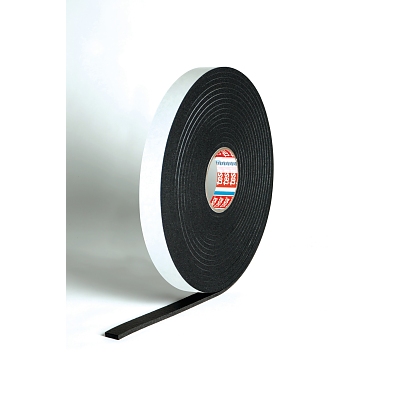

tesa® 50603

Soft grade skinned PVC/Nitrile closed cell single sided foam tape 9mm thick (black)



Product description

The tesa® 50603 is a 9mm thick single sided PVC nitrile closed cell foam tape with an acrylic adhesive. The foam 'skinned', which creates an abrasion resistant layer, particularly suited where contact with sharp or rough surfaces will occur such as in enclosure doors. The PVC nitrile foam is highly conformable while also offering a low compression set, which allows the foam to return to its original state even after long periods of compression. The closed cell foam allows tight sealing from dust and water, while the acrylic adhesive features easy application to various surfaces. The foam tape backing is soft and conformable, making it well suited for use on uneven surfaces. The robust foam is resistant to weathering, tearing and abrasion and offers excellent resistance to temperatures from -10°C to 80°C. tesa 5060 Series is available in 3mm, 6mm, 9mm and 12mm thicknesses.

Main applications

  • Due to the abrasion resistant skin, 5060 series foam is particularly well suited where contact with sharp or rough surfaces will occur
  • Can be used for sealing electrical enclosures and switch cabinets
  • Suitable for sealing industrial access doors and hatches
  • Ideal for sealing hatches on boats
  • Can be used to seal externally mounted air conditioning equipment
  • Tape can be used for pipe wrap insulation on both hot and cold pipes
tesa_50601_pr_001
tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030000300-pr
tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030000300-pr
tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030000500-pr
tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030000700-pr
tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030001100-pr
tesa-50601-single-sided-foam-tape-3mm-01-ap
tesa-50601-single-sided-foam-tape-3mm-step1of7-ap
tesa-50601-single-sided-foam-tape-3mm-step2of7-ap
tesa-50601-single-sided-foam-tape-3mm-step3of7-ap
tesa-50601-single-sided-foam-tape-3mm-step4of7-ap
tesa-50601-single-sided-foam-tape-3mm-step5of7-ap
tesa-50601-single-sided-foam-tape-3mm-step6of7-ap
tesa-50601-single-sided-foam-tape-3mm-step7of7-ap

tesa_50601_pr_001

tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030000300-pr

tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030000300-pr

tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030000500-pr

tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030000700-pr

tesa-50603-soft-grade-pvc-nitrile-single-sided-foam-tape-506030001100-pr

tesa-50601-single-sided-foam-tape-3mm-01-ap

tesa-50601-single-sided-foam-tape-3mm-step1of7-ap

tesa-50601-single-sided-foam-tape-3mm-step2of7-ap

tesa-50601-single-sided-foam-tape-3mm-step3of7-ap

tesa-50601-single-sided-foam-tape-3mm-step4of7-ap

tesa-50601-single-sided-foam-tape-3mm-step5of7-ap

tesa-50601-single-sided-foam-tape-3mm-step6of7-ap

tesa-50601-single-sided-foam-tape-3mm-step7of7-ap

Technical properties

Elongation at break

100 %

Water Tightness

100 %

Type of adhesive

acrylic

Temperature resistance up to

80 °C

Water Absorption

6 %

Interliner

Yes

Tensile strength

29.4 N/cm

Temperature resistance from

-10 °C

Total thickness

9000 µm

Backing material

PVC / Nitrile foam

Adhesion to steel

2.4 N/cm

Rating properties

Flame retardant

++

Resistance to chemicals

+

Suitable for die cutting

Yes

Water resistance

++

UV-resistance

+

Additional Info

REACH and RoHS compliant

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
