Product Construction
| Backing material | Neoprene rubber foam |
| Total thickness | 12700 µm |
| Type of adhesive | type: natural rubber |

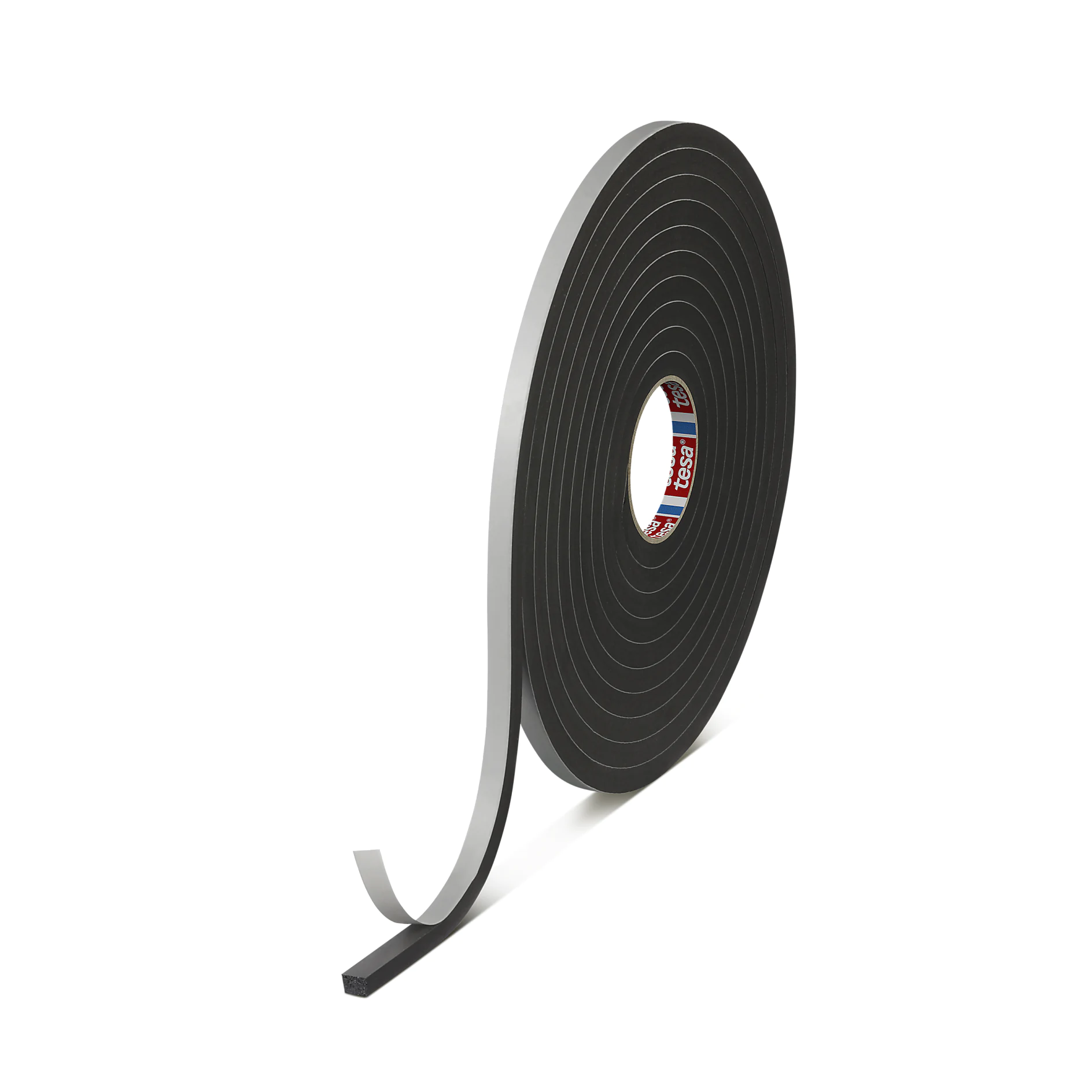

tesa® 61116
Neoprene closed cell single sided foam tape 12.7mm thick (black)
Product description
tesa® 61116 is a 12.7mm thick black neoprene foam tape with a natural rubber adhesive on one side. The closed cell foam offers outstanding resistance to oils and other petrochemicals and is compatible with most plastics. tesa® 61116 is flame retardant to FMVSS302 and complies with automotive industry standards. The product also creates an electrolysis barrier between different metals, making it suitable for enclosure type applications, particularly where contact with oil and petrol will occur. The tape is also available in other thicknesses: 1.6 mm (tesa® 61111), 3.2 mm (tesa® 61112), 4.8 mm (tesa® 61113), 6.4 mm (tesa® 61114) and 9.5 mm (tesa® 61115).
Product details and specifications
Application Fields
- tesa® 61116 foam tape is well-suited for sealing in transport applications due to high resistance to petrol and oil. The product is commonly used in sealing applications in trucks, buses, special-purpose vehicles, boats, yachts and caravans
- Sealing engine bays where contact with oil can occur
- Sealing access panel doors in machinery and transportation vehicles
- Sealing electrical enclosures and switch cabinets
- Sealing hatches on boats and yachts
- Sealing industrial access doors and hatches
- Sealing exterior and interior lighting
Product Construction
| Backing material | Neoprene rubber foam |
| Total thickness | 12700 µm |
| Type of adhesive | type: natural rubber |
Properties / Performance Values
| Suitable for die cutting | yes |
| Elongation at break | 175 % |
| Tensile strength cm2 | 41 N/cm² |
| Water resistance | very good |
| Chemical resistance | very good |
| Temperature resistance max. | 70 °C |
| Hardness - Shore 00 | 37 STK |
| Compression set | 9 % |
| Temperature resistance min. | -40 °C |
| Flame retardance | very good |
Properties / Performance Values
| Suitable for die cutting | yes |
| Elongation at break | 175 % |
| Tensile strength cm2 | 41 N/cm² |
| Water resistance | very good |
| Chemical resistance | very good |
| Temperature resistance max. | 70 °C |
| Hardness - Shore 00 | 37 STK |
| Compression set | 9 % |
| Temperature resistance min. | -40 °C |
| Flame retardance | very good |
Adhesion to Values
| Adhesion to steel | 12 N/cm |
Adhesion to Values
| Adhesion to steel | 12 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
