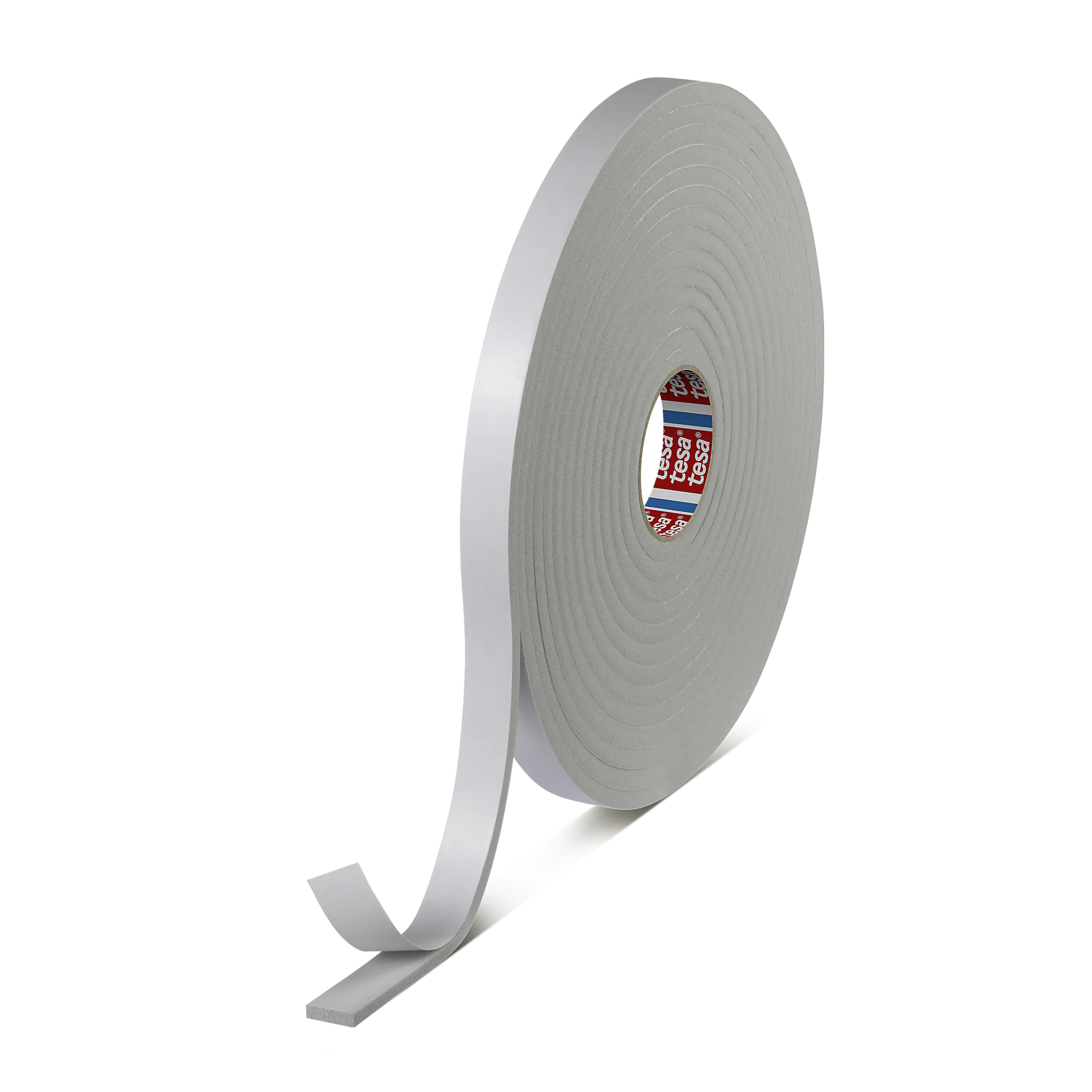

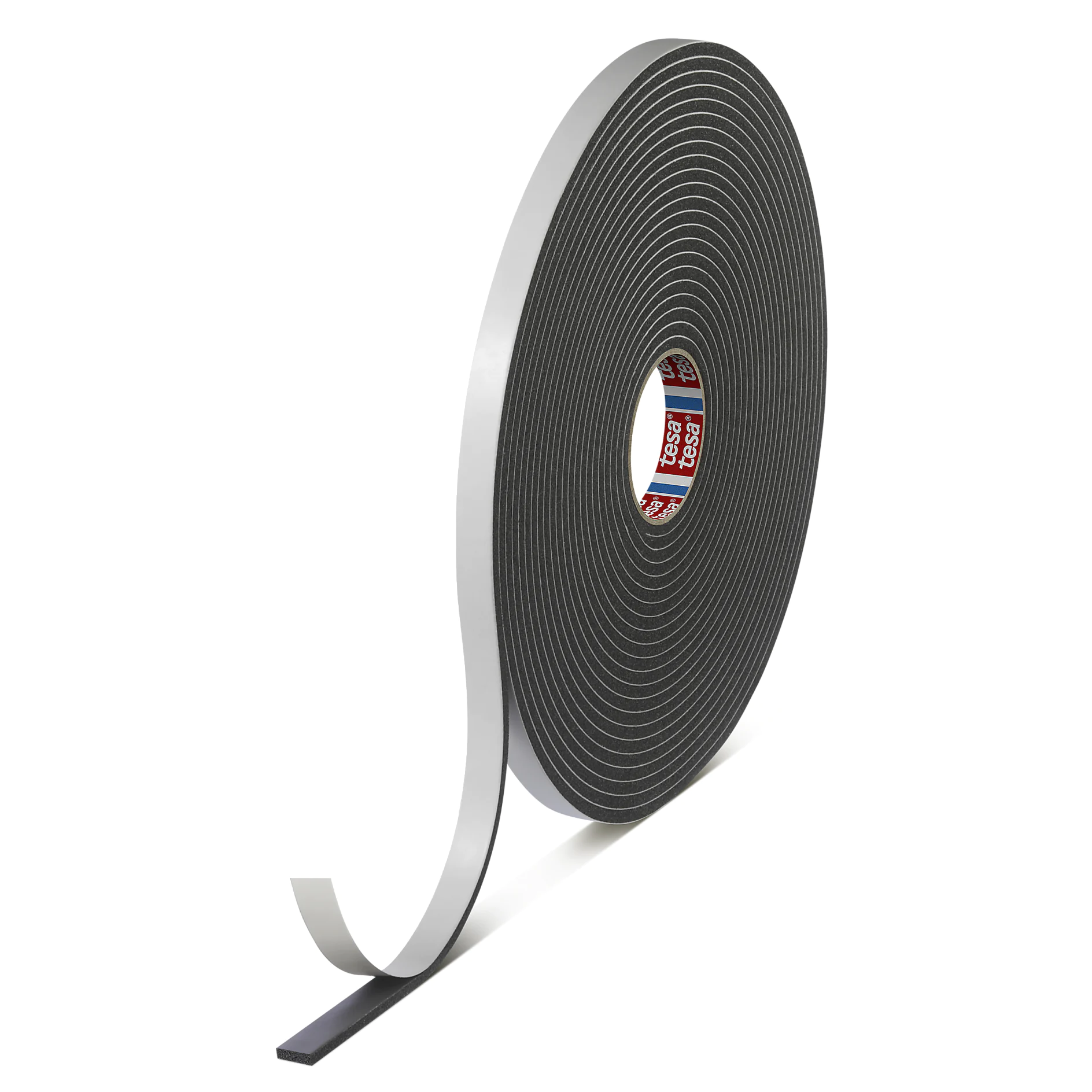

tesa® 60106 Grey

Soft grade PVC closed cell single sided foam tape 6.4mm thick (black and grey)

Product description

tesa® 60106 is a 6.4mm thick soft grade closed cell polyvinyl chloride (PVC) foam tape with an acrylic adhesive on one side. The closed cell foam can create a waterproof barrier when compressed, while the soft grade PVC foam is flexible and conformable to help seal uneven surfaces. Even after long periods of holding heavy weight, it will rapidly return to its original state. The PVC foam tape is resistant to UV, ozone, oxidation and fungi. The black foam tape version is flame retardant to FMVSS 302 and approved for use in the automotive industry. The tape is available in black and grey, in additional thicknesses: 3.2mm (tesa® 60103), 4.8mm (tesa® 60105), 9.5mm (tesa® 60109) and 12.7mm (tesa® 60112).

Product details and specifications

Application Fields

tesa® 60106 is suitable for a number of sealing applications, especially on uneven surfaces including corrugated sheeting which requires sealing
The tape is used for sealing panels on portable buildings, caravan panels or dam walls
tesa® 60106 is used for sound reduction on aluminium boat hulls
The foam tape is used as a vibration dampener on automotive weather shields
The black tape acts as a flame retardant
REACH and RoHS compliant

Backing material	soft PVC
Total thickness	6,400 µm
Type of adhesive	acrylic

Elongation at break	150 %
Temperature resistance max.	80 °C
Compression set	5 %
Tensile strength cm2	20 N/cm²
Temperature resistance min.	-40 °C
Hardness - Shore 00	25 STK

Adhesion to steel	6 N/cm

Black is flame retardant
Black differs from Grey in compression set and shore hardness. Figures shown are those relating to Grey
Black: Adhesion to Steel (6N/cm), Hardness - Shore 00 (21), Compression Set (4%)

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60106_en-AU 51.9 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Name of product	tesa® 60106 Grey	tesa® 60106 Black	tesa® 61115	tesa® 66703	tesa® 61116	tesa® 60403	tesa® 66701	tesa® 61114	tesa® 50604	tesa® 61103	tesa® 7495	tesa® 60103 Black
Total thickness	6,400 µm	6,400 µm	9,500 µm	3.2 mm	12,700 µm	3,200 µm	1.6 mm	6,400 µm	12,000 µm	4,800 µm	12,000 µm	3,200 µm
Type of adhesive	acrylic	acrylic	natural rubber	acrylic	natural rubber	acrylic	acrylic	natural rubber	acrylic	acrylic	acrylic	acrylic
Backing material	soft PVC	soft PVC	Neoprene rubber foam	EPDM rubber foam	Neoprene rubber foam	PVC foam	EPDM rubber foam	Neoprene rubber foam	PVC / Nitrile foam	EPDM rubber foam	PE foam	PVC foam
Color				black		black	black
Adhesion to Steel (after 14 days)							5.5 N/cm
