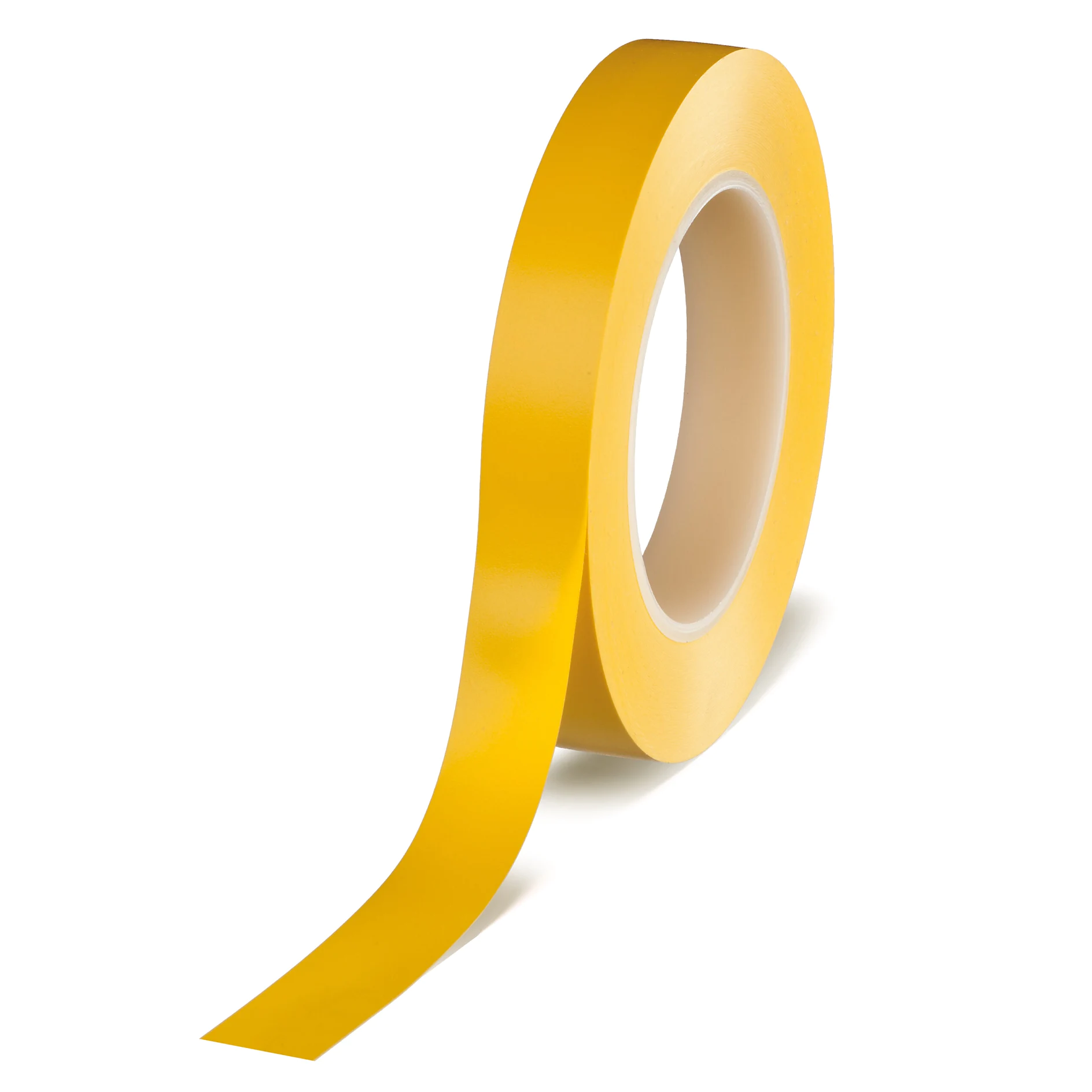

tesa® 4244 PV0

Fineline tape for design painting


Product description

tesa® 4244 is a flexible soft PVC tape with a natural rubber adhesive for fineline masking if a very sharp paint edge is required, especially on painted or unpainted plastic parts and for multi-colour painting.

  • no shrinking at high temperatures
  • conforms to the dimensional change during oven-drying
  • no edge lifting off and removable without leaving any residues
  • good conformability to multi dimensional surfaces


Product details and specifications

Application Fields

Masking & Design, for wide range of fineline applications
Backing material PVC film
Total thickness 110 µm
Type of adhesive natural rubber
Elongation at break 237 %
Tensile strength 27 N/cm
Sharp colour edge yes
Flame retardance very good
Paint anchorage yes
Easy to remove yes
Suitable for die cutting yes
Temperature resistance (60 min) 140 °C
Adhesion to steel 3.7 N/cm
tesa® 4244 is also available for converting and die-cutting with a paper liner 4244 PV4:
adhesion to steel = 4,7 N/cm
peel off force from liner = 14 cN/cm,
die cuts are available as tesa® 54244
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 4244 PV0 tesa® 51485 NOPI® 64110 hand tesa® 67330 tesa® 60804 tesa® 4646 tesa® 54994 tesa® 4089 tesa® 51482 tesa® 54337 PV1 tesa® 4101 PV2
Total thickness
110 µm
115 µm
49 µm
30 µm
150 µm
180 µm
187
46 µm
250 µm
450 µm
51 µm
Type of adhesive
natural rubber
natural rubber
acrylic
acrylic
acrylic
natural rubber
rubber based
tackified acrylic
natural & synthetic rubber
Backing material
PVC film
PVC film
PVC film
Polyimide
PVC film
PE film
PU film
PP film
PVC film
PVC film
hydrate cellulose
