Additional Info
REACH and RoHS compliant

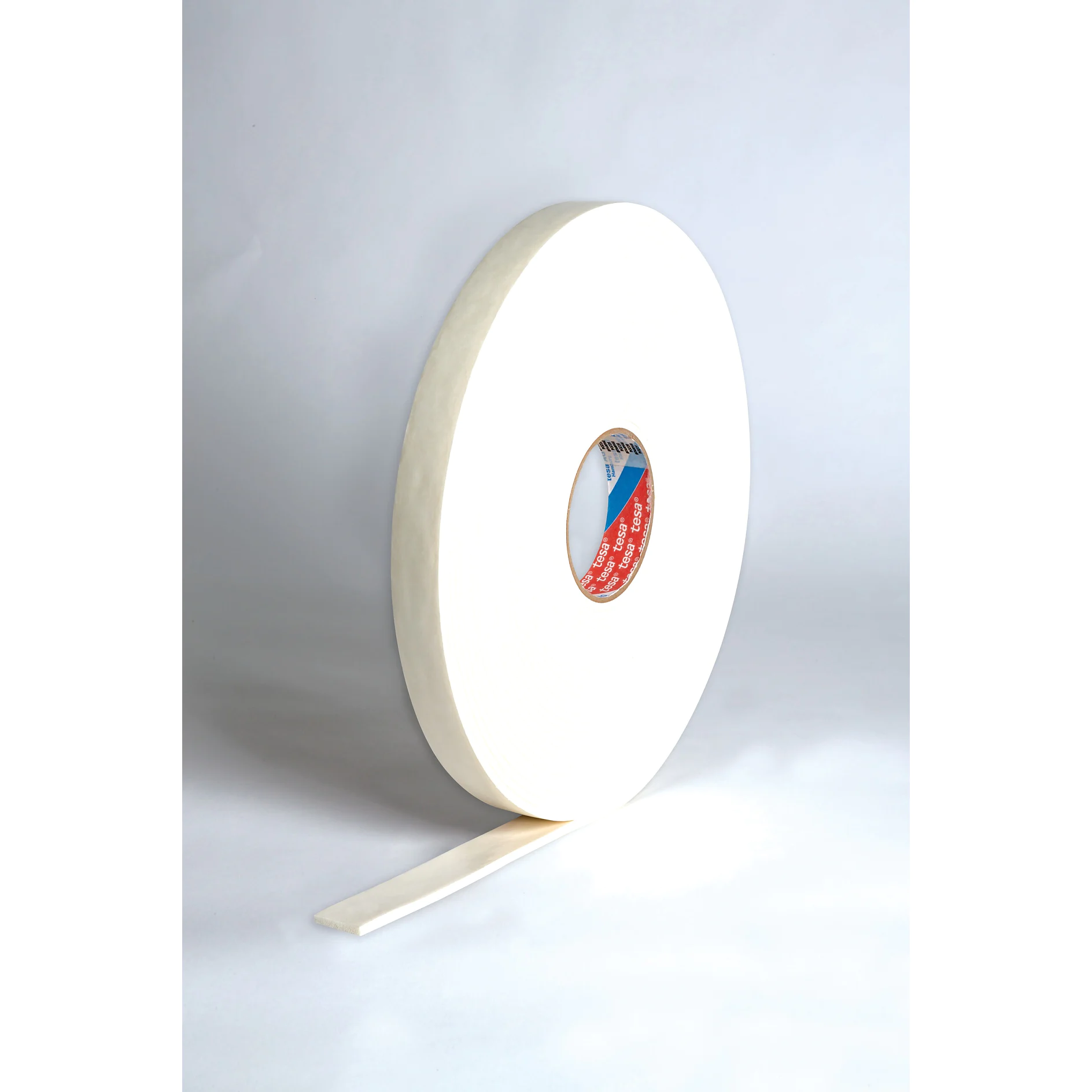

tesa® 60204
Medium/hard grade PVC closed cell single sided foam tape 4mm thick (grey and white)
Product description
tesa® 60204 is a 4mm medium/hard grade closed cell PVC foam tape with an acrylic adhesive on one side. The closed cell foam creates a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces. The high-density foam has a greater resistance to water penetration than tesa 600 and 601 series foam tapes, making it an ideal choice for sealing applications in the glazing industry. tesa® 60204 foam tape is resistant to UV, ozone, oxidation and fungi and is therefore perfect for tough environments. The product is silicone compatible and available in customised die cuts. The tape is also available in the following thicknesses: 1.6mm (tesa® 60202), 3.2mm (tesa® 60203), 6.4mm (tesa® 60206), 9.5mm (tesa® 60209) and 12.7mm (tesa® 60212).
Product details and specifications
Application Fields
- tesa® 60204 foam tape is ideal for use in concreting, marine and transportation applications, including bus, truck and caravan manufacturing
- Sealing between panels in trucks and buses
- Sealing panels and uneven surfaces in portable buildings
- Dam wall sealing in concreting
- Sealing light fittings
- Sealing externally mounted air-conditioning fan units on walls or roofs
- Sealing electrical access panels on industrial machinery
- Sealing electrical housings, enclosures and cabinet doors
- Sealing under glass stove-tops
Product Construction
| Backing material | PVC foam |
|---|---|
| Total thickness | 4000 µm |
| Type of adhesive | acrylic |
Product Construction
| Backing material | PVC foam |
|---|---|
| Total thickness | 4000 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 130 % |
|---|---|
| Compression set | 2 % |
| Temperature resistance min. | -35 °C |
| Hardness - Shore 00 | 28 STK |
| Temperature resistance max. | 90 °C |
| Tensile strength cm2 | 34 N/cm² |
| Suitable for die cutting | yes |
Properties / Performance Values
| Elongation at break | 130 % |
|---|---|
| Compression set | 2 % |
| Temperature resistance min. | -35 °C |
| Hardness - Shore 00 | 28 STK |
| Temperature resistance max. | 90 °C |
| Tensile strength cm2 | 34 N/cm² |
| Suitable for die cutting | yes |
Adhesion to Values
| Adhesion to steel | 2.8 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 2.8 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
