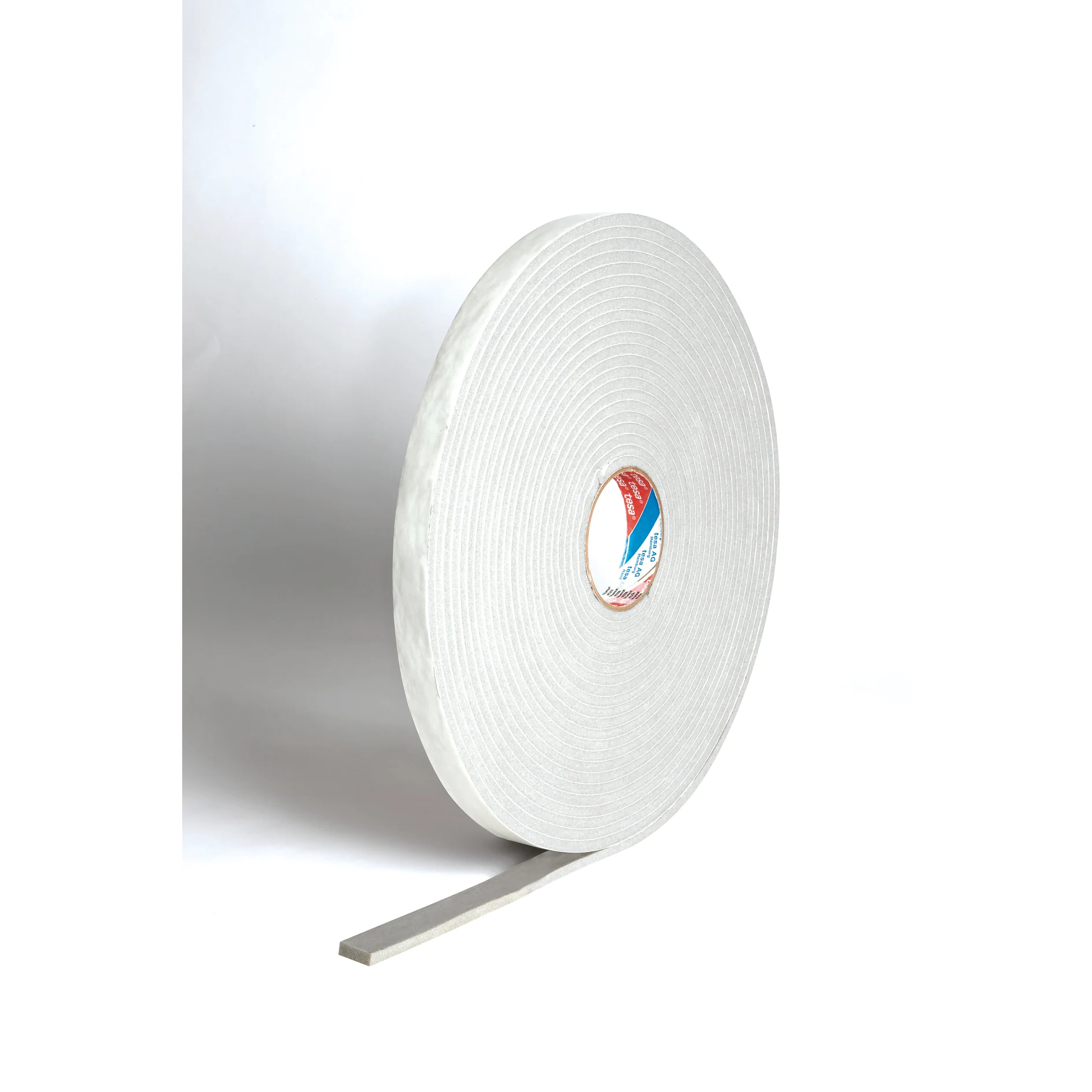

tesa® 60203
Medium/hard grade PVC closed cell single sided foam tape 3.2mm thick (grey)
Product description
tesa® 60203 is a 3.2mm medium/hard grade closed cell PVC foam tape with an acrylic adhesive on one side. The closed cell foam creates a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces. The high-density foam has a greater resistance to water penetration than tesa 600 and 601 series foam tapes, making it an ideal choice for sealing applications in the glazing industry. tesa® 60203 foam tape is resistant to UV, ozone, oxidation and fungi and is therefore perfect for tough environments. The product is silicone compatible and available in customised die cuts. The tape is also available in the following thicknesses: 1.6mm (tesa® 60202), 4mm (tesa® 60204), 6.4mm (tesa® 60206), 9.5mm (tesa® 60209) and 12.7mm (tesa® 60212).
Product details and specifications
Application Fields
- tesa® 60203 foam tape is ideal for use in concreting, marine and transportation applications, including bus, truck and caravan manufacturing
- Sealing between panels in trucks and buses
- Sealing panels and uneven surfaces in portable buildings
- Dam wall sealing in concreting
- Sealing light fittings
- Sealing externally mounted air-conditioning fan units on walls or roofs
- Sealing electrical access panels on industrial machinery
- Sealing electrical housings, enclosures and cabinet doors
- Sealing under glass stove-tops
- REACH and RoHS compliant
Product Construction
Backing material | PVC foam |
---|---|
Total thickness | 3200 µm |
Type of adhesive | acrylic |
Product Construction
Backing material | PVC foam |
---|---|
Total thickness | 3200 µm |
Type of adhesive | acrylic |
Properties / Performance Values
Elongation at break | 130 % |
---|---|
Temperature resistance max. | 90 °C |
Suitable for die cutting | yes |
Tensile strength cm2 | 34 N/cm² |
Compression set | 2 % |
Temperature resistance min. | -35 °C |
Hardness - Shore 00 | 28 STK |
Properties / Performance Values
Elongation at break | 130 % |
---|---|
Temperature resistance max. | 90 °C |
Suitable for die cutting | yes |
Tensile strength cm2 | 34 N/cm² |
Compression set | 2 % |
Temperature resistance min. | -35 °C |
Hardness - Shore 00 | 28 STK |
Adhesion to Values
Adhesion to steel | 2.8 N/cm |
---|
Adhesion to Values
Adhesion to steel | 2.8 N/cm |
---|
Download the files below for more technical details and information on this product.
