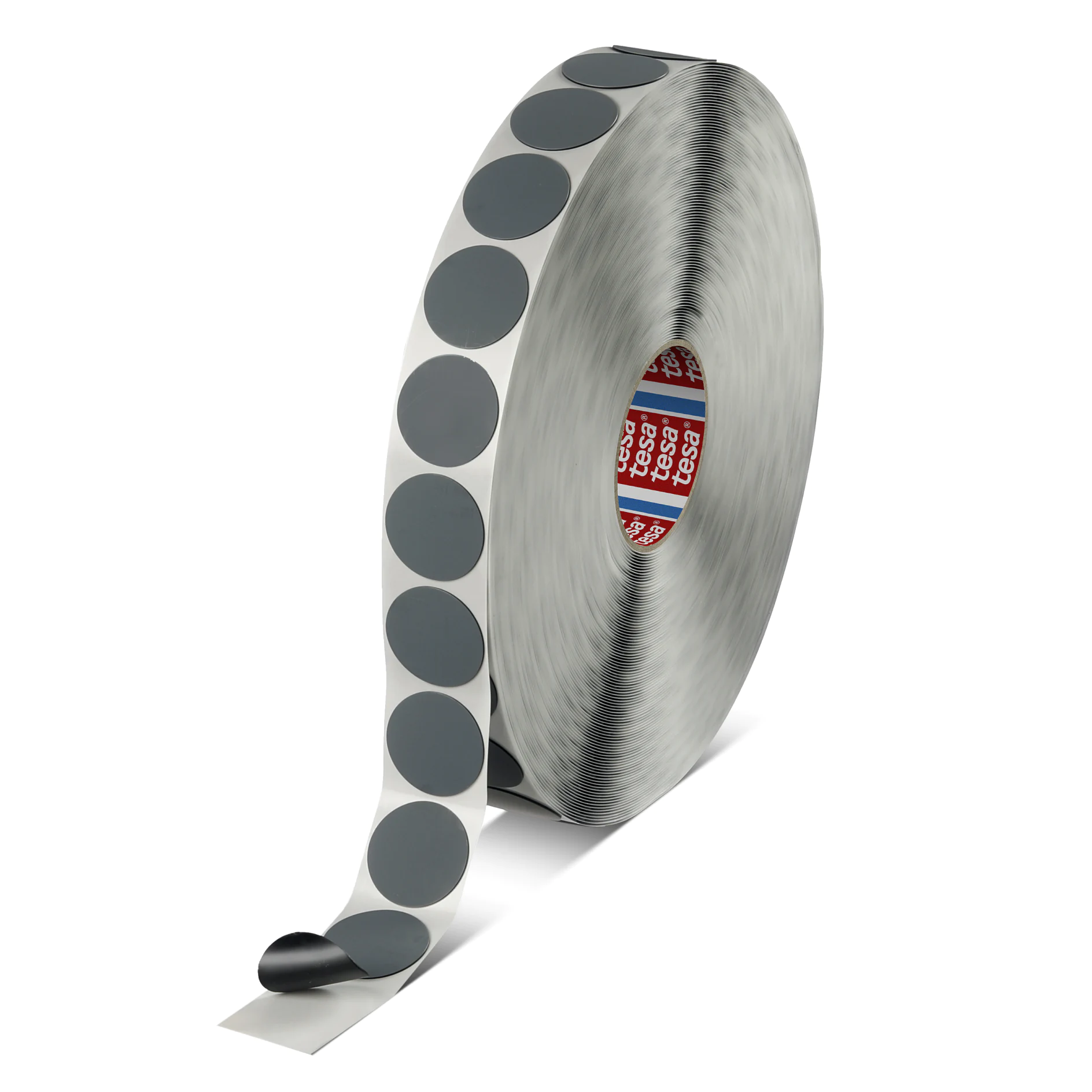

tesa® 54335 PV0 PunctureGuard

tesa® PunctureGuard - highest puncture resistance sealing patch for hole covering applications

Product description

tesa® PunctureGuard 54335 combines a strong PET layer with a thick acrylic adhesive sealer. This product is optimized for the automotive industry to cover exterior holes ensuring excellent paint anchorage, perfect sealing and best stone chipping protection even under harsh outdoor conditions after closure. In combination with our tesa® EfficienSeal automated dispensing tool we ensure a highly efficient and automated patch application.
Main features:

Reliable corrosion protection as e.g. punch burrs will be securely covered and sealed
Excellent stone chipping protection even at lowest temperature
High temperature resistance up to 160°C
Excellent puncture resistance
Very good paint anchorage and UBC (PVC) compatibility
Good acoustic insulation properties for higher drive comfort
Very good resistance to chemicals
Secure adhesion to steel, aluminum, plastics, painted substrates, and reinforced plastic substrates in automotive lightweight constructions, e.g. CFRP

Product details and specifications

Application Fields

tesa® PunctureGuard 54335 is suitable for different hole covering applications along the automotive production process.
Example applications are:

After e-coat where a good compatibility to UBC (PVC) and sealant is required, e.g. car body platform, wheel houses, engine compartment
Before paint shop where good paint compatibility is essential
At the assembly line for exterior hole covering on all car body areas, e.g. pillars, rocker, front/rear floor
Especially suitable for highly visible areas when painted

To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Backing material	PET
Color	grey
Total thickness	990 µm
Type of adhesive	modified acrylic
Type of liner	PE-coated paper

Backing material	PET
Color	grey
Total thickness	990 µm
Type of adhesive	modified acrylic
Type of liner	PE-coated paper

Area weight	900 g/m²
Sealing performance (IPX7 acc. ISO 20653:2023-08)	yes
Puncture resistance	1000 N
Noise damping	good

Area weight	900 g/m²
Sealing performance (IPX7 acc. ISO 20653:2023-08)	yes
Puncture resistance	1000 N
Noise damping	good

Adhesion to steel	12 N/cm

Adhesion to steel	12 N/cm

Also available as:

tesa® PunctureGuard 54335 PV1 in 690 µm
tesa® PunctureGuard 54335 PV2 in 1690 µm

Rolls with customer specific patch dimensions can be delivered according to customer requirements and applications.

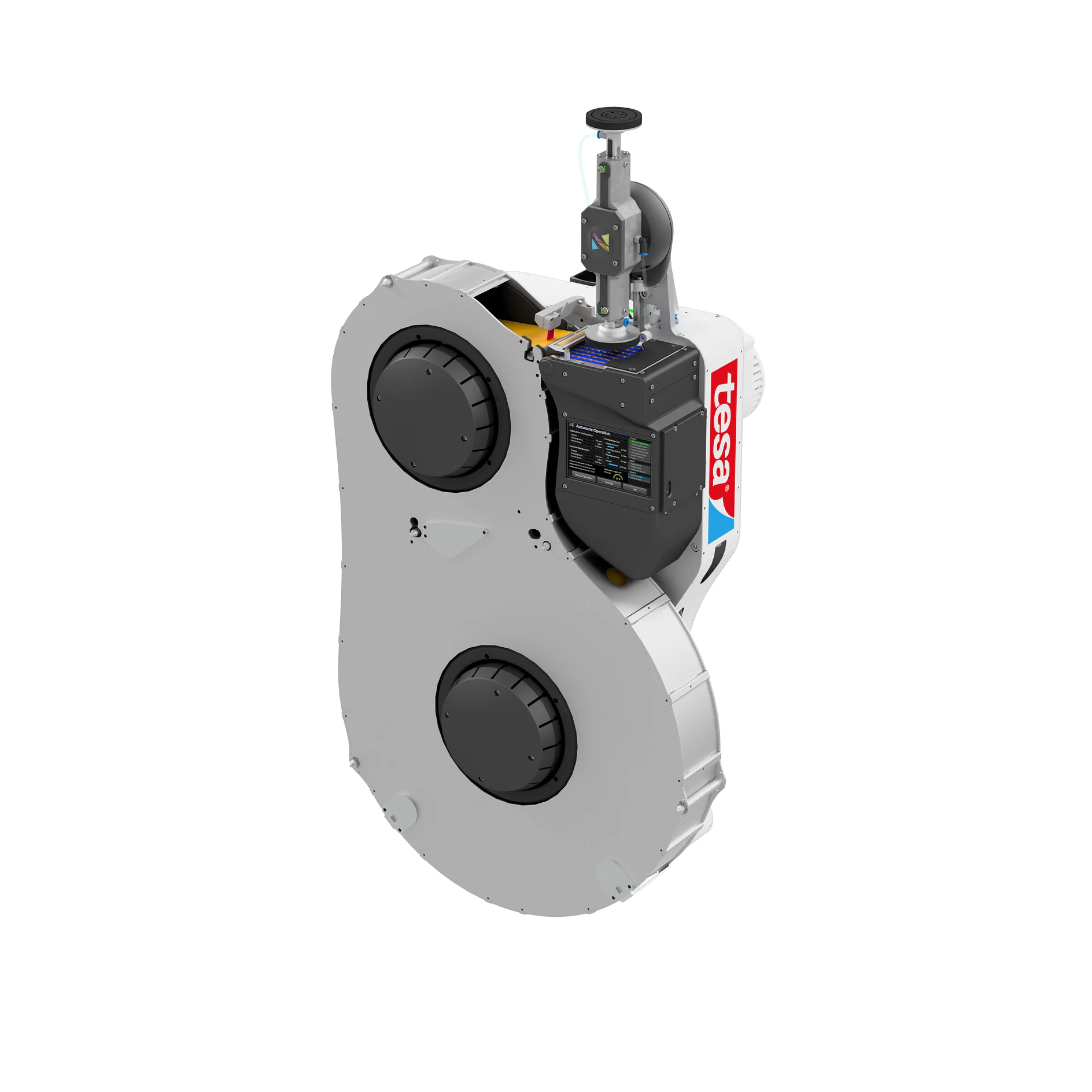

We support your individual application process with tesa designed dispensing solutions to ensure a quick and reliable sealing of holes in the car body.
By fitting your robot with the best end arm tooling we enable a smart automation concept in your production side. Aks for our tesa® EfficienSeal dispensing tool to ensure a highly efficient and automated patch application.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 54335_en-SG 65.6 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Product comparison

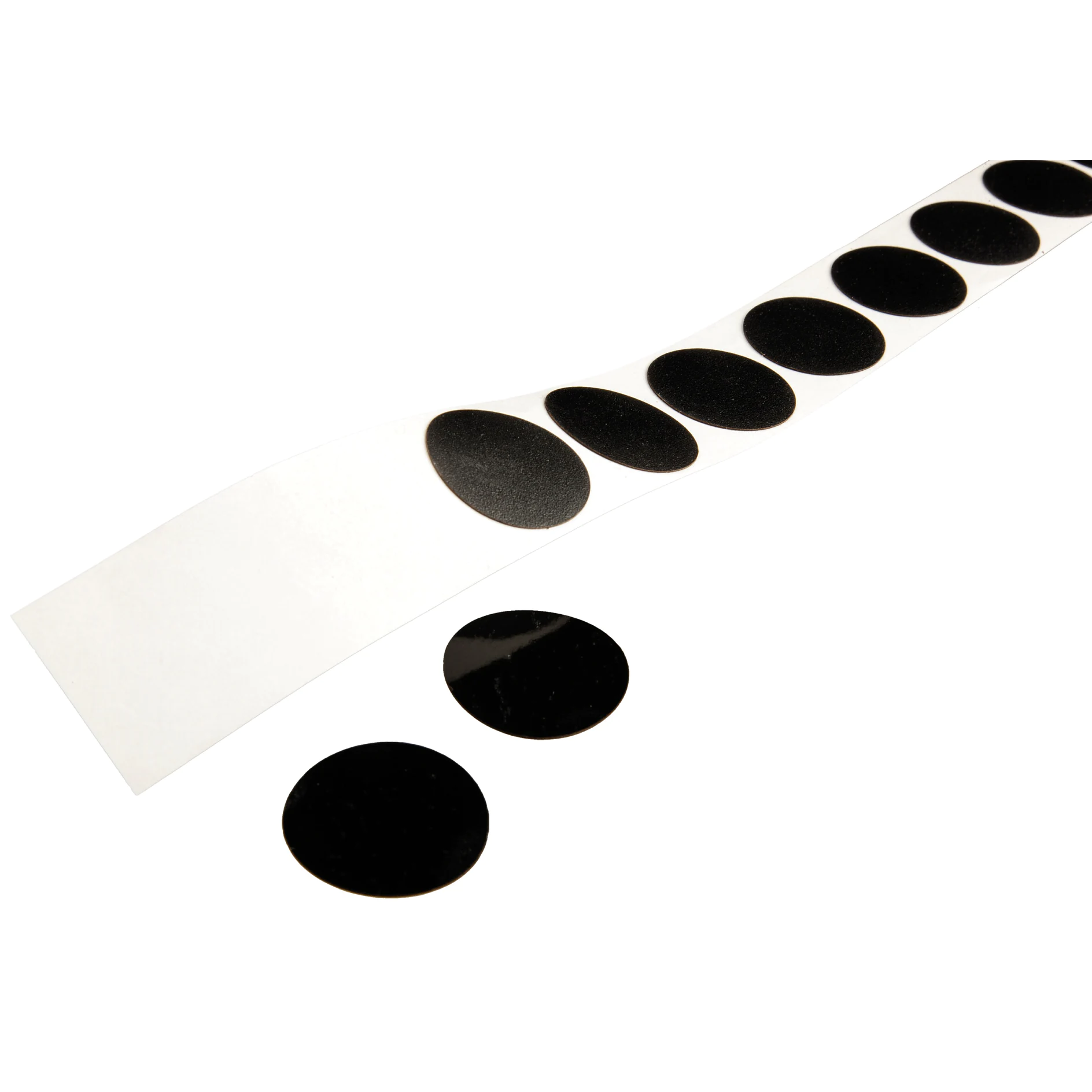

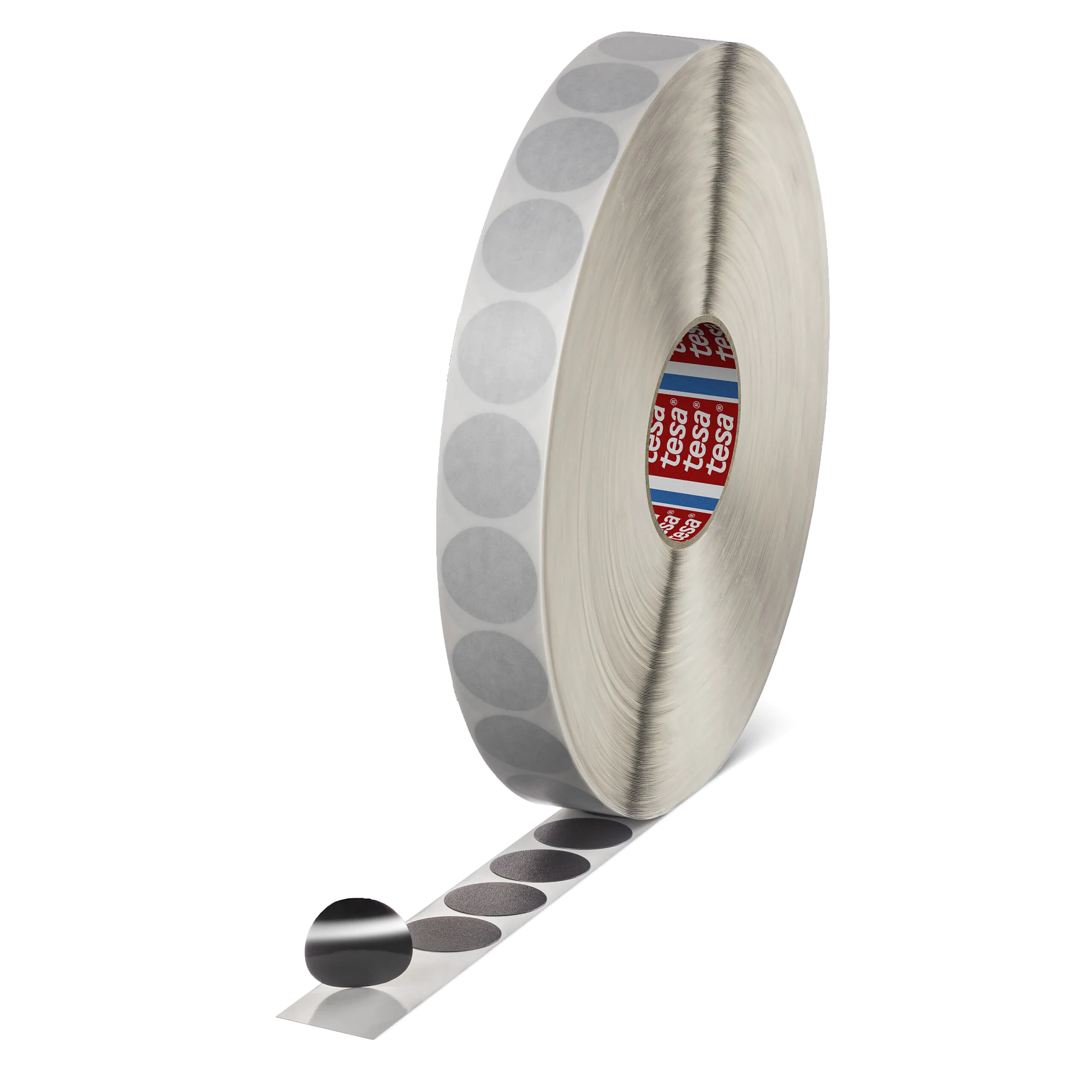

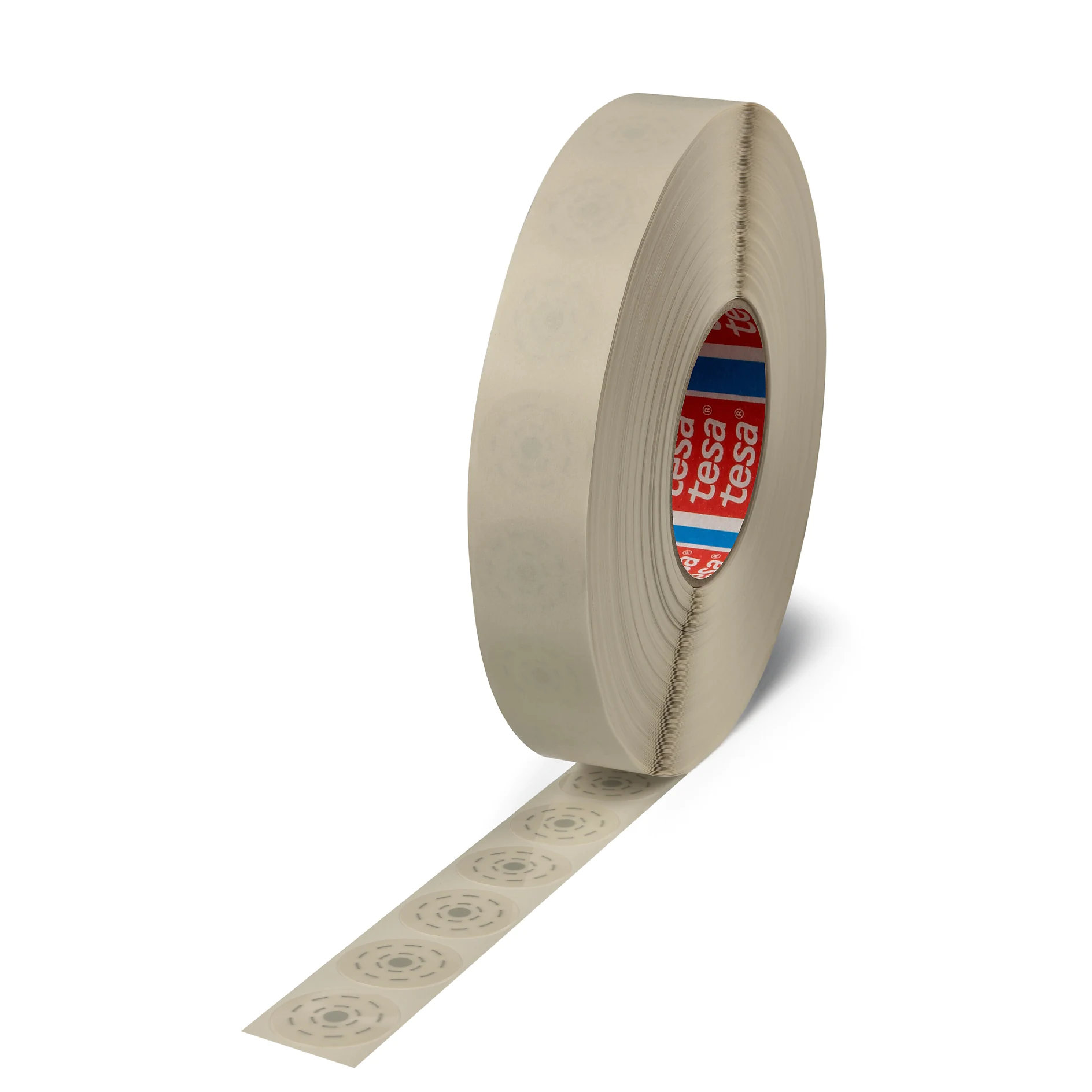

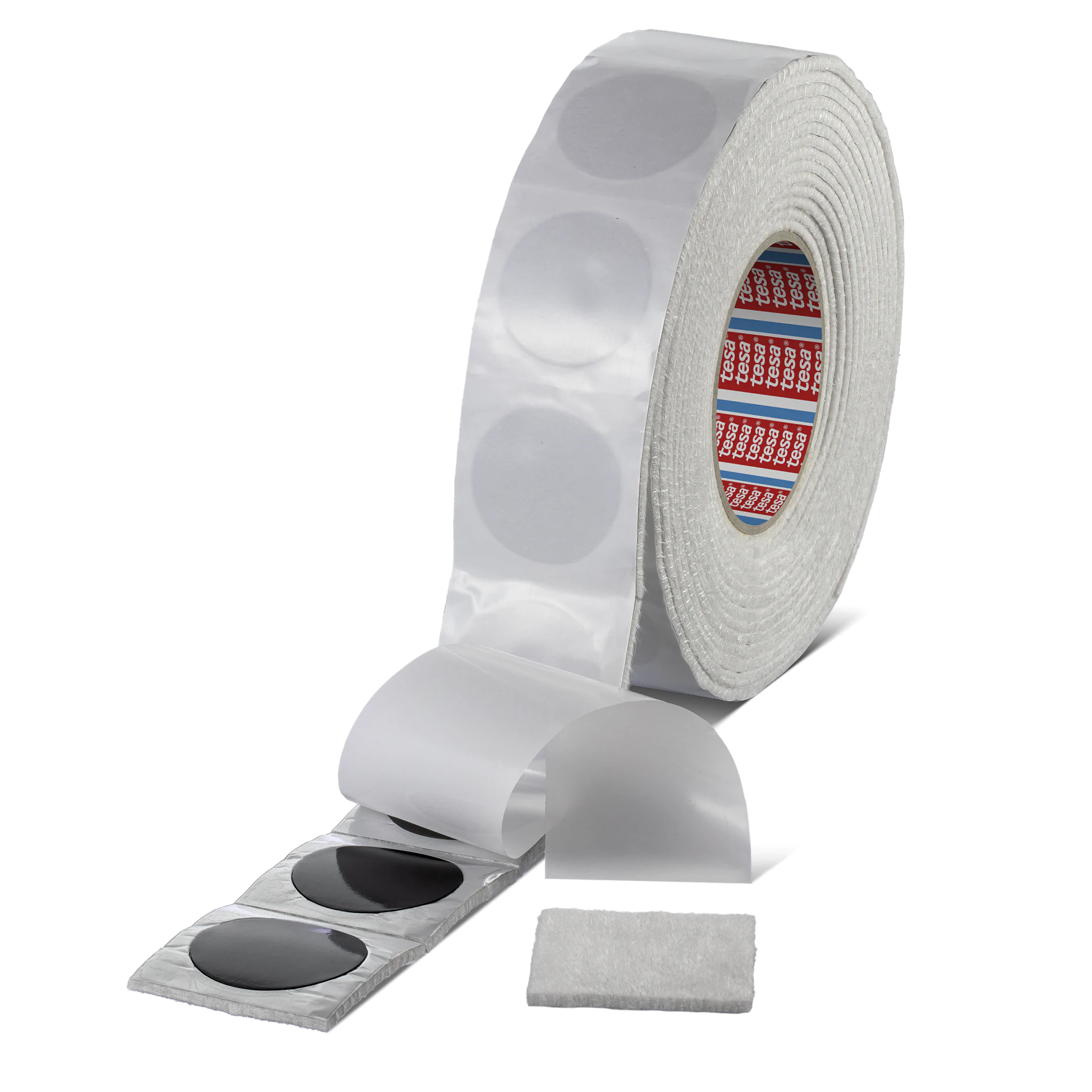

Name of product	tesa® 54335 PV0 PunctureGuard	tesa® 54338	tesa® 54337 PV1	tesa® 54337 PV1	tesa® 54339 Low VOC	tesa® 54339 Low VOC	tesa® 54718 Paintable Noise Blocker	tesa® 54717 Noise Blocker Water Resistant	tesa® 54485 Fireman Access	tesa® 54337 PV1	tesa® 6042 ProSeal
Total thickness	990 µm	95 µm	450 µm	450 µm	260 µm	260 µm	1350 µm	1240 µm	9690 µm	450 µm
Type of adhesive	modified acrylic	modified acrylic	tackified acrylic	tackified acrylic	modified acrylic	modified acrylic	modified acrylic	modified acrylic	modified acrylic	tackified acrylic
Backing material	PET	PET film	PVC film	PVC film	PET film	PET film	polyolefin	polyolefin	glassfibre / PET film	PVC film
Color	grey	transparent	black	black	transparent	transparent	grey	grey	white	black	colourless
