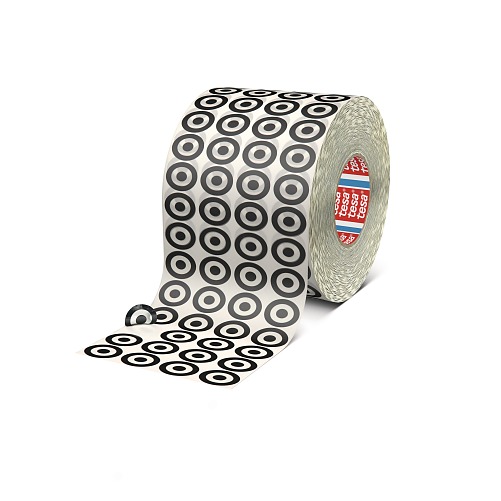

tesa® 54338PV0

Precision die-cuts for permanent hole covering applications


Product description

tesa® 54338 die cuts from strong polyester tape are suitable for permanent exterior and interior Hole Covering applications in automotive.
Die cuts are supplied on a white glassine liner. The liner is approved for paint applications.


Product details and specifications

Application Fields

This polyester tape is suitable for all PVC or paint oven drying processes up to 200 °C.
After electrophoretic painting where good compatibility and anchoring force to UBS (PVC) and sealant is required, e.g. car body platform, wheel houses, engine compartment.
Before paint shop where good paint compatibility is essential, e.g. A/B- pillar, sills, trunk.
At assembly line for exterior and interior Hole Covering on all car body areas.
Backing material PET film
Color transparent
Total thickness 95 µm
Type of adhesive modified acrylic
Type of liner glassine
Chemical resistance very good
Temperature resistance (30 min) 160 °C
We would like to recommend our stock assortment, which includes the following dimensions:
circles: 19 / 30 / 40 / 50 mm diameter

tesa® 54338 is available upon request in customer specific dimensions and can be delivered in either roll form or as sheets.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 54338PV0 tesa® 54337 PV1 tesa® 54339 Low VOC tesa® 54718 Paintable Noise Blocker tesa® 54485 Fireman Access tesa® 54337 PV1 tesa® 54335 PV0 PunctureGuard tesa® 6042PV0TL ProSeal tesa® 54657 Low VOC tesa® 54657 tesa® 54657 Low VOC
Total thickness
95 µm
450 µm
260 µm
1,350 µm
9,690 µm
450 µm
990 µm
290 µm
290 µm
290
Type of adhesive
modified acrylic
tackified acrylic
modified acrylic
modified acrylic
modified acrylic
tackified acrylic
modified acrylic
thermosetting natural rubber
thermosetting natural rubber
thermosetting natural rubber
Backing material
PET film
PVC film
PET film
polyolefin
glassfibre / PET film
PVC film
PET
Acrylic-coated cloth
Acrylic-coated cloth
Acrylic-coated cloth
Color
transparent
black
transparent
grey
white
black
grey
colourless
grey
grey
grey
