tesa® 54337 PV1

Precision die cuts for permanent hole covering applications with optical requirements

Product description

tesa® 54337 PV1 is a flexible high quality PVC with high adhesive power. The product is optimized for the automotive industry to cover unused holes that require a perfect optical appearance in combination with good sealing and damping properties.

Features:

Good damping properties to reduce the noise level within the passenger compartment
Perfect optical appearance permits to have no limitations in design even in the visible area
Soft and smooth backing assists an easy adaption even on curved or three dimensional surfaces

Product details and specifications

Application Fields

tesa® 54337 PV1 is especially designed for interior and exterior hole covering applications at the assembly line to ensure a reliable sealing and sound damping as well as to maintain a perfect optical appearance.

Backing material	PVC film
Color	black
Colour of liner	white
Total thickness	450 µm
Type of adhesive	tackified acrylic
Type of liner	glassine

Backing material	PVC film
Color	black
Colour of liner	white
Total thickness	450 µm
Type of adhesive	tackified acrylic
Type of liner	glassine

Elongation at break	289 %
Tensile strength	109 N/cm
Abrasion resistance	good
Suitable for die cutting	yes
Temperature resistance (30 min)	110 °C
Chemical resistance	very good

Elongation at break	289 %
Tensile strength	109 N/cm
Abrasion resistance	good
Suitable for die cutting	yes
Temperature resistance (30 min)	110 °C
Chemical resistance	very good

Adhesion to Steel (initial)	6.9 N/cm

Adhesion to Steel (initial)	6.9 N/cm

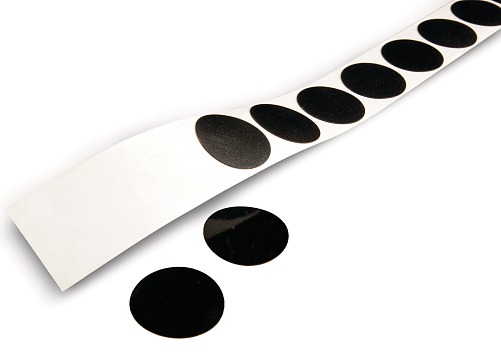

tesa® 54337 PV1 can be supplied as die cuts in roll or sheets individually to customer specific dimensions.

tesa’s automation and application solution department provides customized equipment and self-designed application tools to enhance productivity.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 54337_en-SG 63.8 kB
