tesa® 50103

PET - filmic tape for cable mounting in automotive interiors

Product description

tesa® 50103 is a PET filmic tape with an acrylic adhesive for applications in automotive interiors.

Features:

linerless
suitable for common irregular, rough and critical interior surfaces
often suitable without any kind of surface pretreatments
tear resistant
low and stable unwind force
can be used with automatic tape dispensers

Product details and specifications

Application Fields

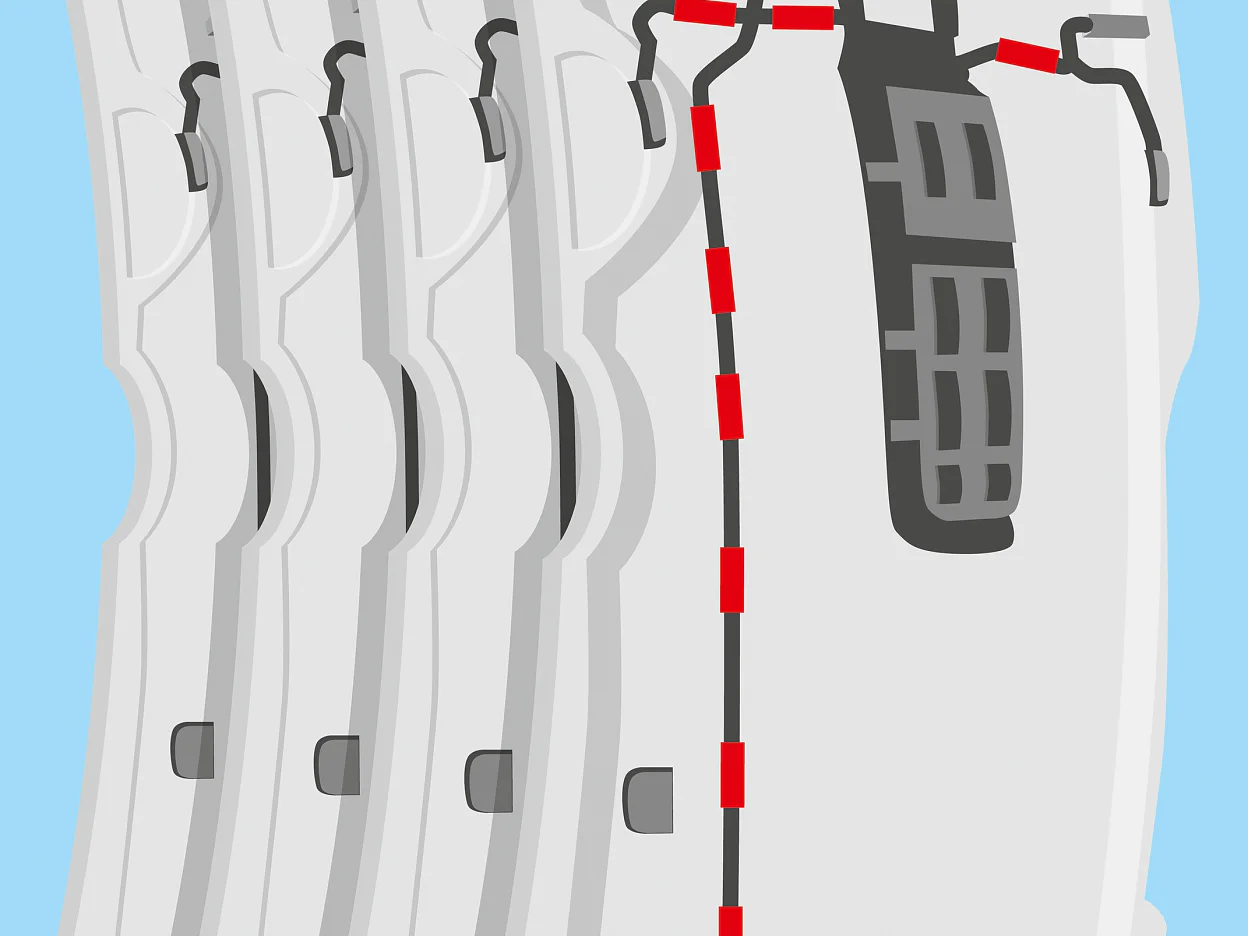

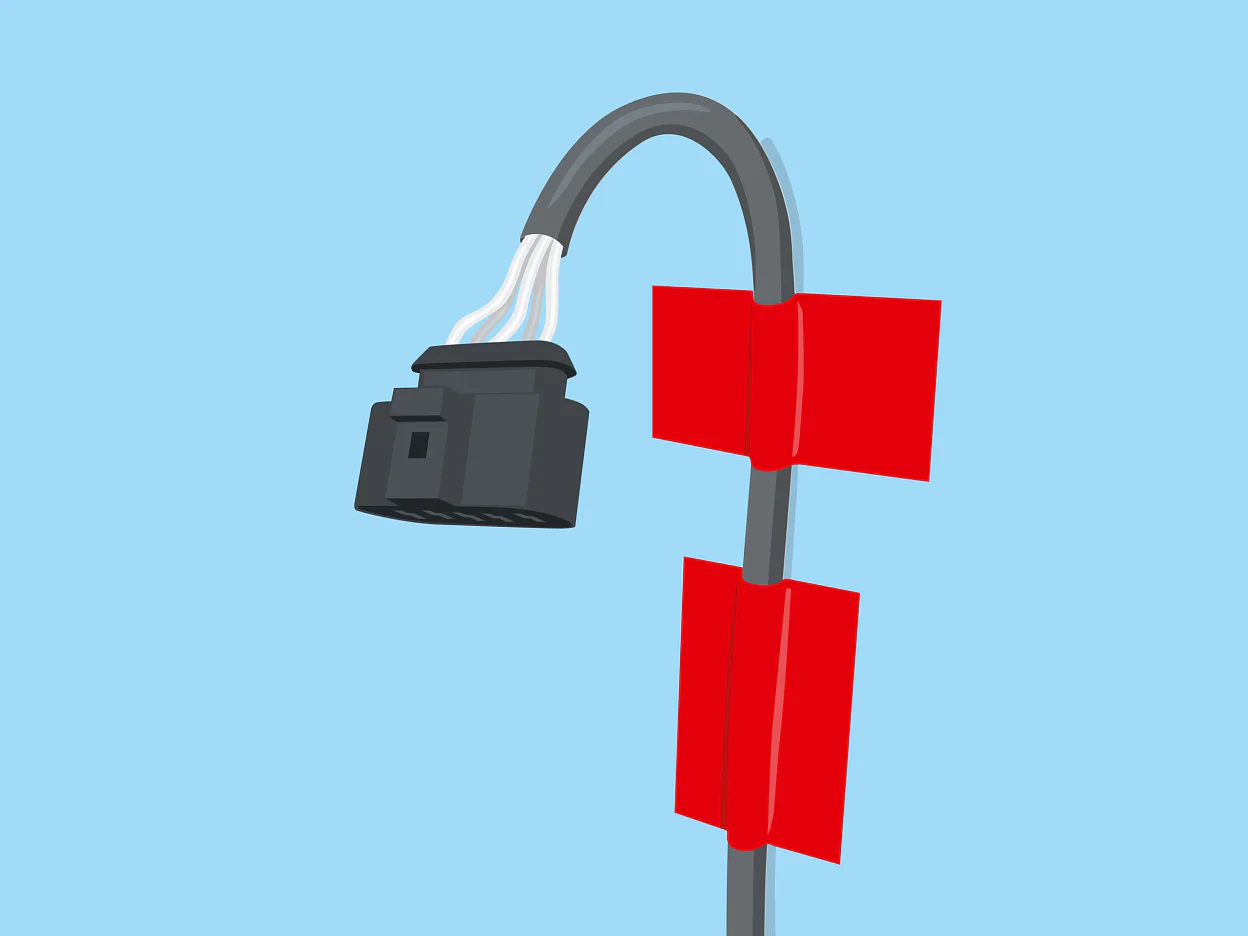

Cable mounting
quick and secure fixation of flat and round cables

Backing material	PET film
Color	transparent
Thickness of tape	90 µm
Type of adhesive	acrylic

Backing material	PET film
Color	transparent
Thickness of tape	90 µm
Type of adhesive	acrylic

Elongation at break	65 %
Tensile strength	45 N/cm
Hand tearability	low
Temperature resistance short term	160 °C
Static shear resistance	medium
Low VOC	very good
Tack	good
Suitable for rough surfaces	very good

Elongation at break	65 %
Tensile strength	45 N/cm
Hand tearability	low
Temperature resistance short term	160 °C
Static shear resistance	medium
Low VOC	very good
Tack	good
Suitable for rough surfaces	very good

Adhesion to PET (initial)	6 N/cm
Adhesion to PET (after 3 days)	7.2 N/cm
Adhesion to PET fleece Headliner A (after 3 days)	5.9 N/cm
Adhesion to PET fleece surface (initial)	3.4 N/cm
Adhesion to PET fleece Headliner A (initial)	5.8 N/cm
Adhesion to PET fleece surface (after 3 days)	4.1 N/cm

Adhesion to PET (initial)	6 N/cm
Adhesion to PET (after 3 days)	7.2 N/cm
Adhesion to PET fleece Headliner A (after 3 days)	5.9 N/cm
Adhesion to PET fleece surface (initial)	3.4 N/cm
Adhesion to PET fleece Headliner A (initial)	5.8 N/cm
Adhesion to PET fleece surface (after 3 days)	4.1 N/cm

AF89 = handtearable

tesa’s automation and application department provides customized equipment and self-designed application tools to enhance productivity.

Adhesion values to:
PET
PET fleece surface
PET fleece Headliner A
are not part of the product specification

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 50103_en-SG 52 kB
