Additional Info
tesa® 54337 is available upon request in customer specific dimensions and can be delivered according to customer requirements and applications in either roll form or as sheets.

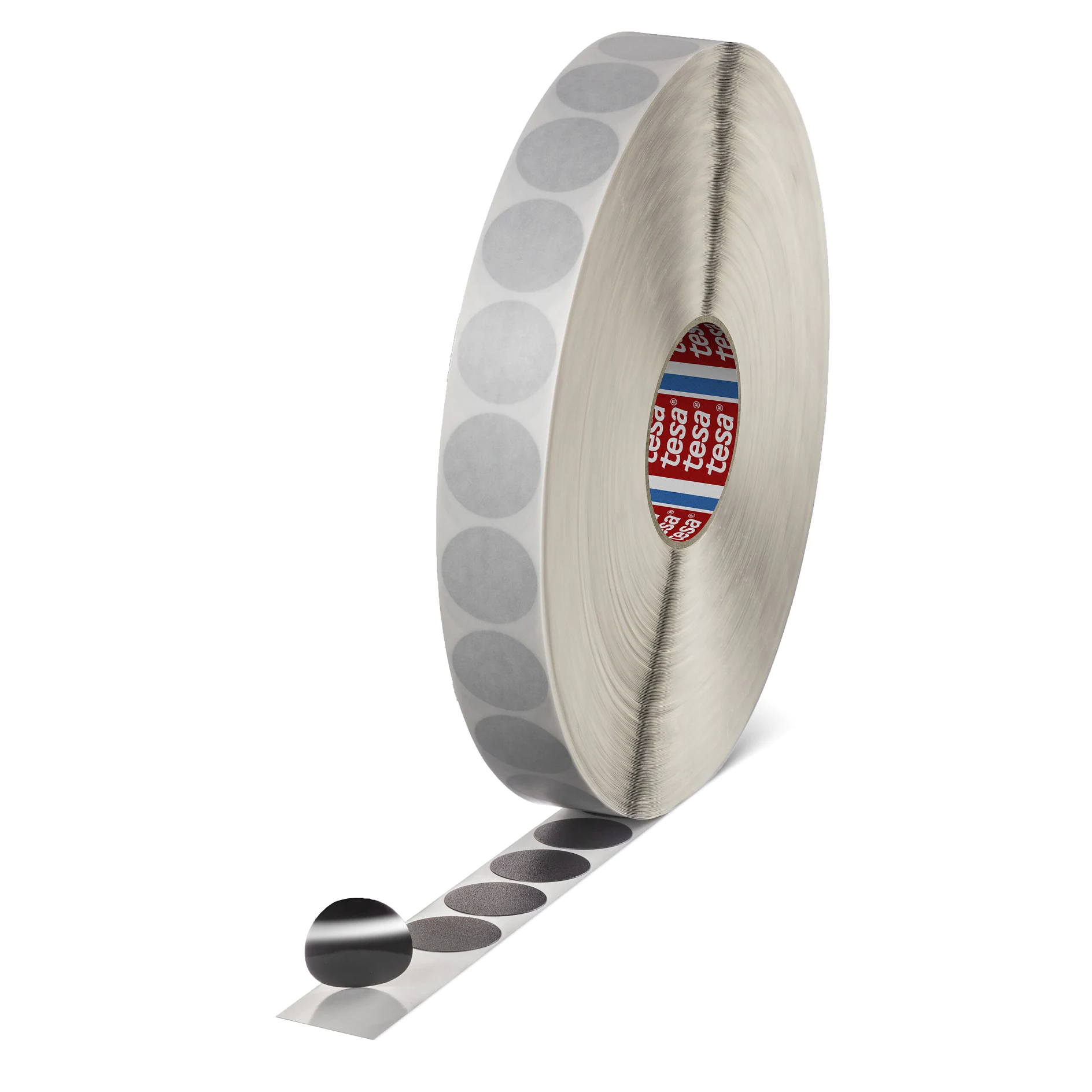

tesa® 54337 PV1
Precision die cuts for hole covering applications
Product description
tesa® 54337 die cuts consist of a high quality PVC film coated with an acrylic adhesive. Die cuts are supplied on a white glassine liner.
Features:
- Perfect optical appearance
- Reliable adhesion on painted surfaces
- Good sealing properties against moisture, water and dust
- Temperature-resistant up to 110 °C
- Good mechanical properties with respect to abrasion and puncture resistance
- Good water resistance
Product details and specifications
Application Fields
tesa® 54337 die cuts are suitable for permanent hole covering solutions. This high performance PVC tape provides a perfect design and good acoustic properties.
Product Construction
| Backing material | PVC film |
|---|---|
| Color | black |
| Colour of liner | white |
| Total thickness | 450 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | glassine |
Product Construction
| Backing material | PVC film |
|---|---|
| Color | black |
| Colour of liner | white |
| Total thickness | 450 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | glassine |
Properties / Performance Values
| Elongation at break | 289 % |
|---|---|
| Tensile strength | 109 N/cm |
| Suitable for die cutting | yes |
| Abrasion resistance | good |
| Chemical resistance | very good |
| Temperature resistance (30 min) | 110 °C |
Properties / Performance Values
| Elongation at break | 289 % |
|---|---|
| Tensile strength | 109 N/cm |
| Suitable for die cutting | yes |
| Abrasion resistance | good |
| Chemical resistance | very good |
| Temperature resistance (30 min) | 110 °C |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
