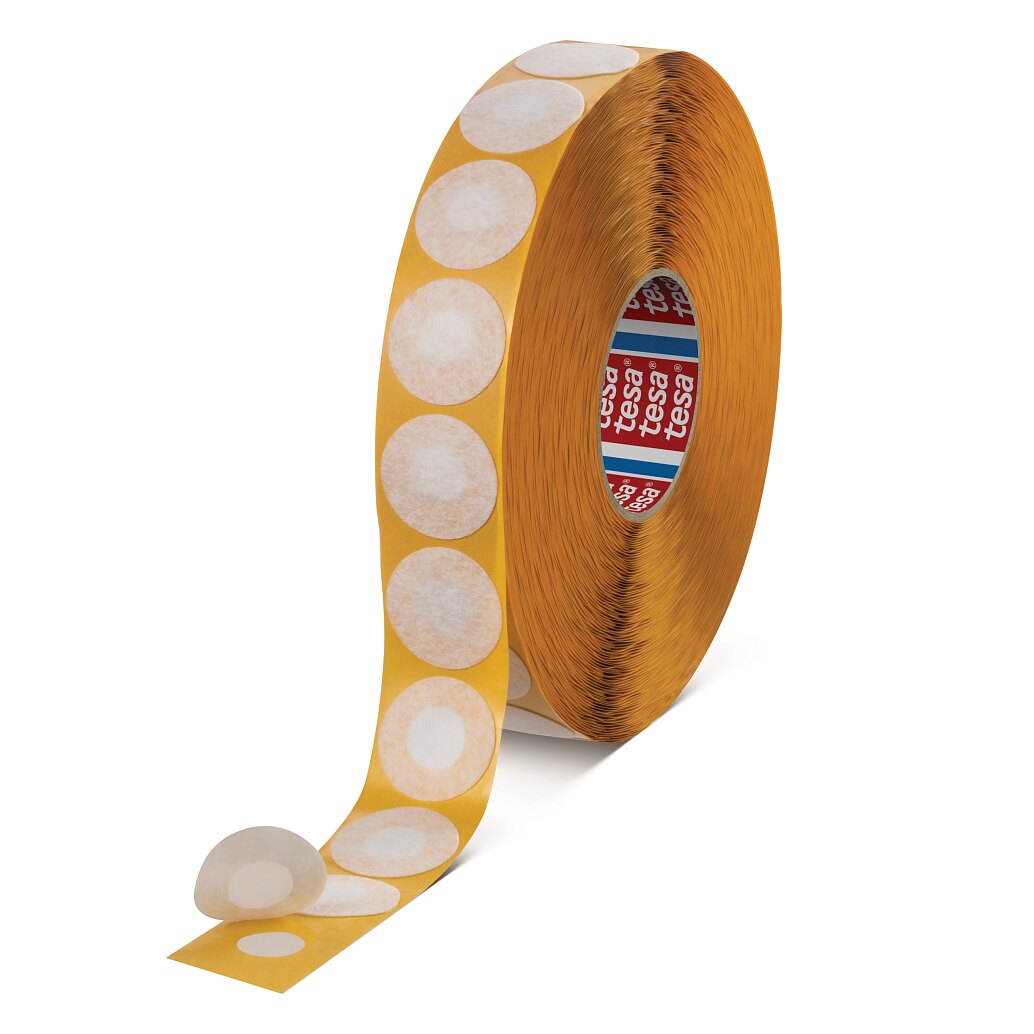

tesa® 54321

Precision die cuts for permanent hole covering of venting holes

Product description

tesa® 54321 is a thick PET-fleece with acrylic adhesive. This product is optimized for the automotive industry to cover venting holes.
The product is designed as a die cut, where the inner ring zone is free of adhesive to generate the venting effect. The outer ring zone is coated with a strong adhesive to ensure permanent bonding.
Features:

High air permeability (DIN EN ISO 9237): ≥ 2360 L/m²s
Strong adhesive ensures permanent bonding even at high stress
Thick PET-fleece prevents PU-foam from oozing out during infusion process
Reduces cleaning and rework

Product details and specifications

Application Fields

Expanding PU-foams are often used to reduce NVH (noise, vibration, harshness) and provide additional stiffness by local reinforcement of body structures for crash and energy management.
tesa® 54321 venting tape prevents squeezing out of the PU-foam during the infusion and foaming process by allowing air flow through the non-coated fleece backing and thereby avoiding excess pressure.

Backing material	PET fleece
Color	white
Total thickness	690 µm
Type of adhesive	tackified acrylic
Type of liner	glassine

Value of peel adhesion is based on the part of the product that is equipped with an adhesive tape. The value for the finished product can differ.
In addition to our standard product we offer 54321 PV1 version. 54321 PV1 is equipped with a special release liner for paint shop appliations. Our product solutions can also be customized with finger tabs.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 54321_en-SG 66.7 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 54321	tesa® 6042PV0TL ProSeal	tesa® 54338PV0	tesa® 54678	tesa® 54335 PV0 PunctureGuard	tesa® 54337 PV1	tesa® 54485 Fireman Access	tesa® 54657 Low VOC	tesa® 54718 Paintable Noise Blocker	tesa® 54332 FireGuard	tesa® 54651 Low VOC
Total thickness	690 µm		95 µm	250 µm	990 µm	450 µm	9,690 µm	290 µm	1,350 µm	1,010 µm	310 µm
Type of adhesive	tackified acrylic		modified acrylic	natural rubber	modified acrylic	tackified acrylic	modified acrylic	thermosetting natural rubber	modified acrylic	modified acrylic	natural rubber
Backing material	PET fleece		PET film	PE extruded cloth	PET	PVC film	glassfibre / PET film	Acrylic-coated cloth	polyolefin	aluminium laminated glasscloth	Acrylic-coated cloth
Color	white	colourless	transparent		grey	black	white	grey	grey	silver	black

Last updated on 7 May 2024
