Additional Info
- Standard widths: 9, 19, 25, 32, 38 mm
- Standard lengths: 25, 50 m
- Standard core diameter: 38 mm
- Further dimensions are available upon request

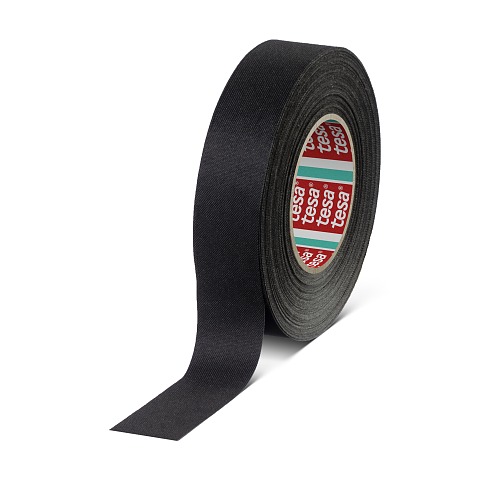

tesa® 51025
Handtearable PET cloth tape for basic bundling
Product Features
- Temperature resistance 125°C
- Stable unwinding force
- Solvent-free adhesive
Product description
tesa® 51025 is a PET cloth wire harness tape with a solvent-free rubber based adhesive. This tape is specifically designed for basic bundling of wires in the passenger compartment and environmental conditions up to 125°C.
Product details and specifications
Product Features
- Temperature resistance 125°C
- Stable unwinding force
- Solvent-free adhesive
- Handtearable
Application Fields
- Basic bundling of wires
- Protection of wire splices
Product Construction
| Backing material | PET cloth |
|---|---|
| Total thickness | 150 µm |
| Type of adhesive | rubber based |
Product Construction
| Backing material | PET cloth |
|---|---|
| Total thickness | 150 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Elongation at break | 25 % |
|---|---|
| Tensile strength | 80 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Dielectric breakdown voltage | 6,300 V |
| Unwind force (roll width > 9mm) | 8 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Noise damping (LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 8 N/roll (30 m/min) |
| Hand tearability | yes |
| Temperature resistance max. | 125 °C |
Properties / Performance Values
| Elongation at break | 25 % |
|---|---|
| Tensile strength | 80 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Temperature resistance min. | -40 °C |
| Dielectric breakdown voltage | 6,300 V |
| Unwind force (roll width > 9mm) | 8 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Noise damping (LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 8 N/roll (30 m/min) |
| Hand tearability | yes |
| Temperature resistance max. | 125 °C |
Adhesion to Values
| Adhesion to steel | 6.5 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 6.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
