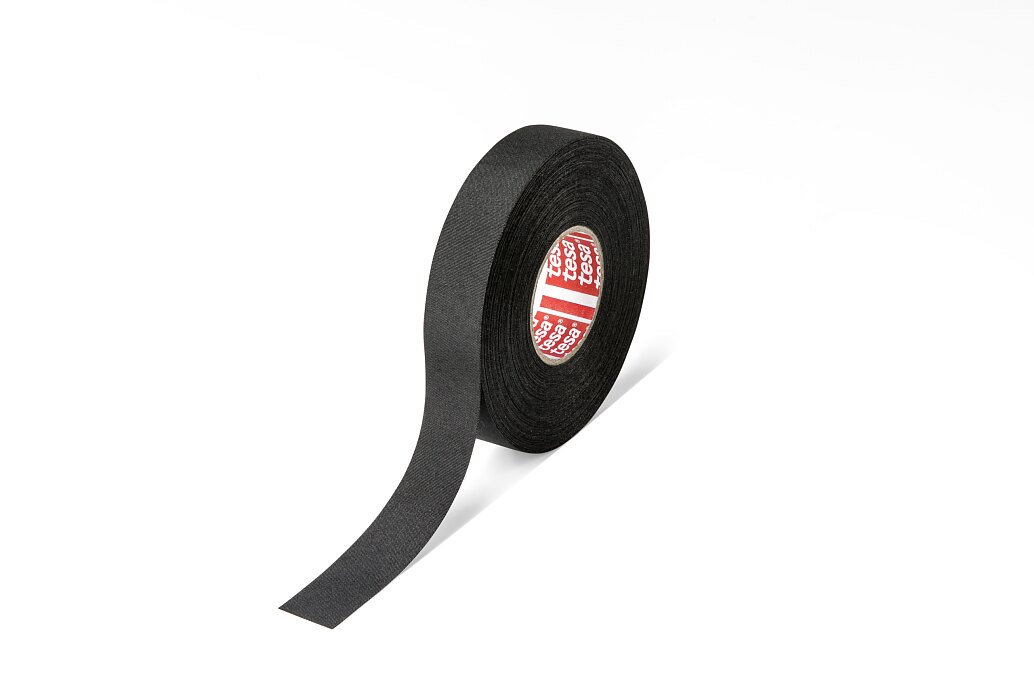

tesa® 51026

PET cloth tape for high abrasion protection



Product description

tesa® 51026 is a PET cloth wire harness tape with an acrylic adhesive.

Major Features:
  • High temperature resistance 150°C/3000h
  • High abrasion resistance

Color: Black and orange"

Main applications

tesa® 51026 is designed for the engine compartment, providing high abrasion protection.

Technical properties

Elongation at break

40 %

Type of adhesive

acrylic

Abrasion resistance (5mm mandrel)

Class D (acc. to LV312)

Temperature resistance min.

-40 °C

Temperature resistance (3000h)

150 °C

Tensile strength

275 N/cm

Unwind force (roll width ≤ 9mm)

5 N/roll (30 m/min)

Unwind force (roll width > 9mm)

11 N/roll (30 m/min)

Total thickness

260 µm

Backing material

PET cloth

Adhesion to steel

5.5 N/cm

Flame resistance as composite

Class B (acc. to LV312)

Noise damping (decibel)

Class A (acc. to LV312)

Abrasion resistance (10mm mandrel)

Class D (acc. to LV312)

Additional Info

Standard widths: 9, 19, 25, 32 mm
Standard lengths: 25 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm

  • Applicable for red ring assembly aid
  • " = RAL 2007. Some color fadings can occur under continous strong heat conditions. A standard for color is not specified.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
