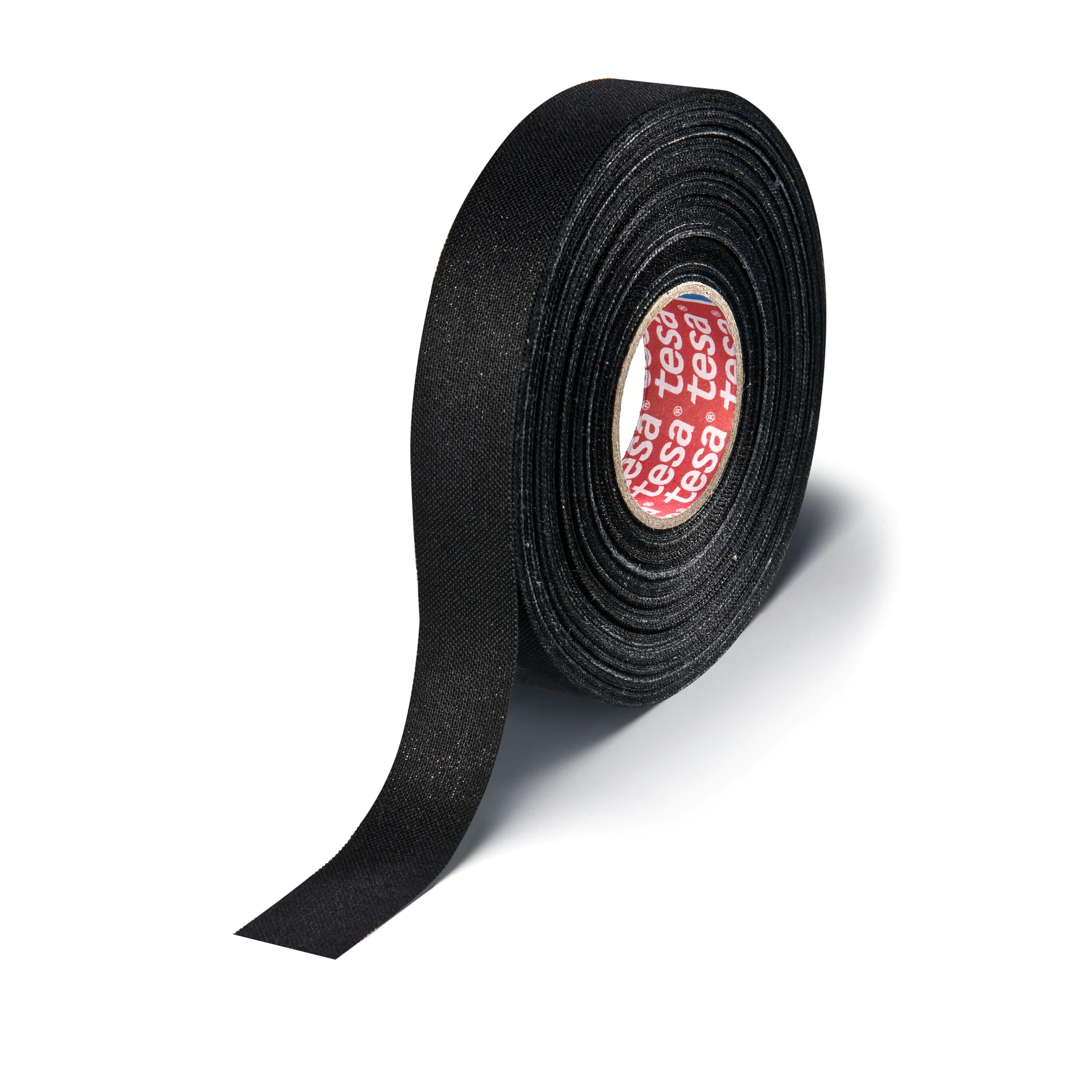

tesa® 51007

PET cloth tape for abrasion protection


Product description

tesa® 51007 is a PET cloth wire harness tape with a rubber based adhesive.

Major Features:

  • High temperature resistance 150°C/3000h
  • Abrasion resistant
  • Strong adhesion

Color: Black


Product details and specifications

Application Fields

tesa® 51007 is designed for the engine compartment, providing abrasion protection.
Specifically made for automatic bundling
Backing material PET cloth
Total thickness 320 µm
Type of adhesive rubber based
Elongation at break 22 %
Tensile strength 175 N/cm
Abrasion resistance (5mm mandrel, LV312) Class B
Temperature resistance max. 150 °C
Temperature resistance min. -40 °C
Unwind force (roll width > 9mm) 6 N/roll (30 m/min)
Noise damping (LV312) Class A
Unwind force (roll width ≤ 9mm) 6 N/roll (30 m/min)
Abrasion resistance (10mm mandrel, LV312) Class C
Adhesion to steel 4.5 N/cm
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 50 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 76 mm

  • Applicable for red ring assembly aid
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 51007 tesa® 68000 PV1 tesa® Spiralsleeve 51036 PV5 tesa® Supersleeve 51026 PV6 tesa® Sleeve 51036 PV9 OR tesa® Sleeve 51036 PV9 A tesa® 51036 PV01 tesa® 51035 tesa® Supersleeve 51036 PV6 A tesa® 51036 PV0 tesa® Sleeve 51036 PV9 tesa® 51026
Total thickness
320 µm
210 µm
530 µm
530 µm
220 µm
220 µm
260 µm
240 µm
530 µm
260 µm
220 µm
260 µm
Type of adhesive
rubber based
acrylic
advanced acrylic
acrylic
acrylic
acrylic
advanced acrylic
advanced acrylic
advanced acrylic
acrylic
acrylic
Backing material
PET cloth
aluminium laminated glasscloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
PET cloth
Temperature resistance max.
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
150 °C
Adhesion to steel
4.5 N/cm
6 N/cm
3 N/cm
5.5 N/cm
5 N/cm
5 N/cm
5 N/cm
4 N/cm
5 N/cm
3 N/cm
5 N/cm
5.5 N/cm
Temperature resistance min.
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
