tesa® 4309 Roll Masker Light
Economic overmasking solution for 2-tone paintings with medium oven temperatures
Product description

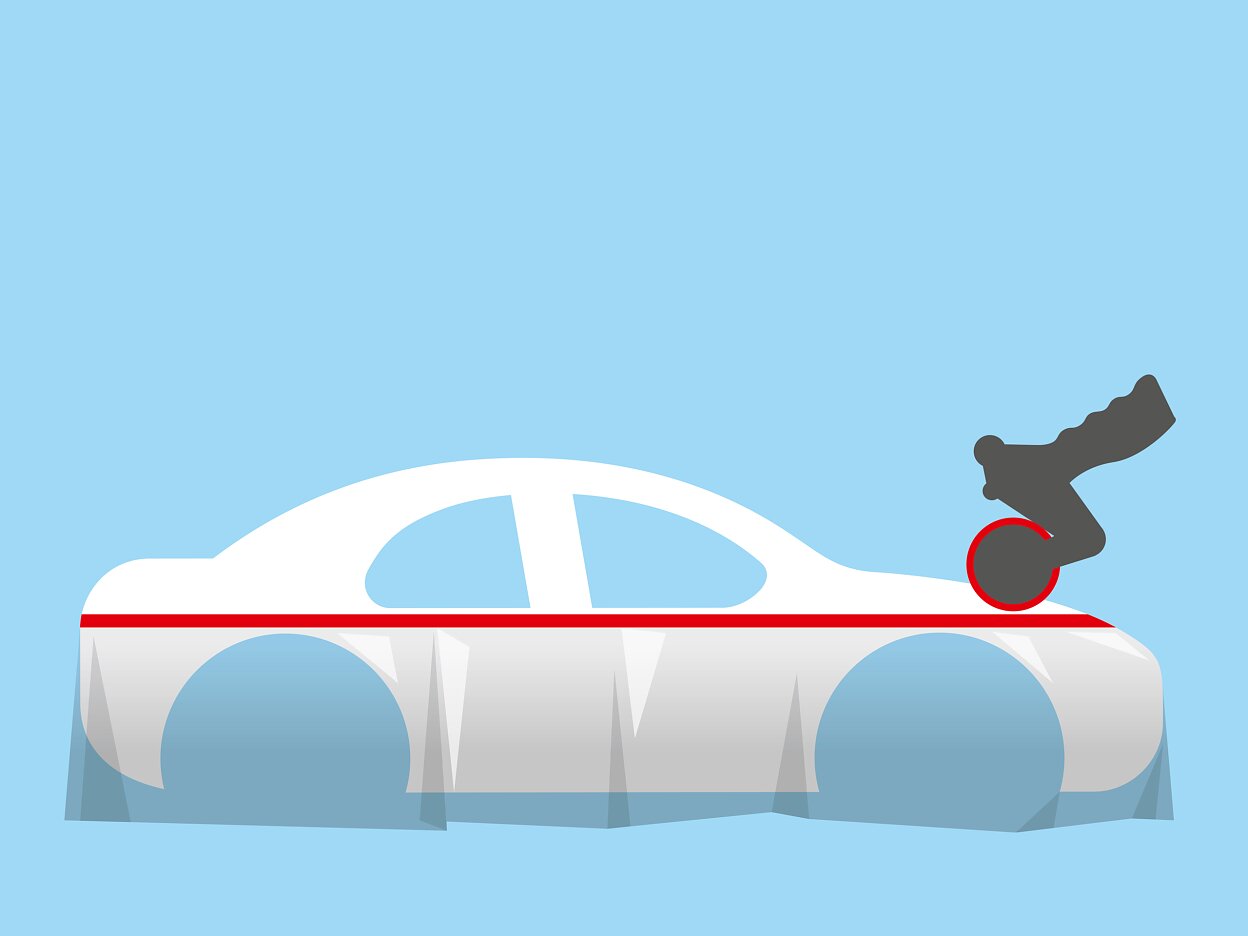

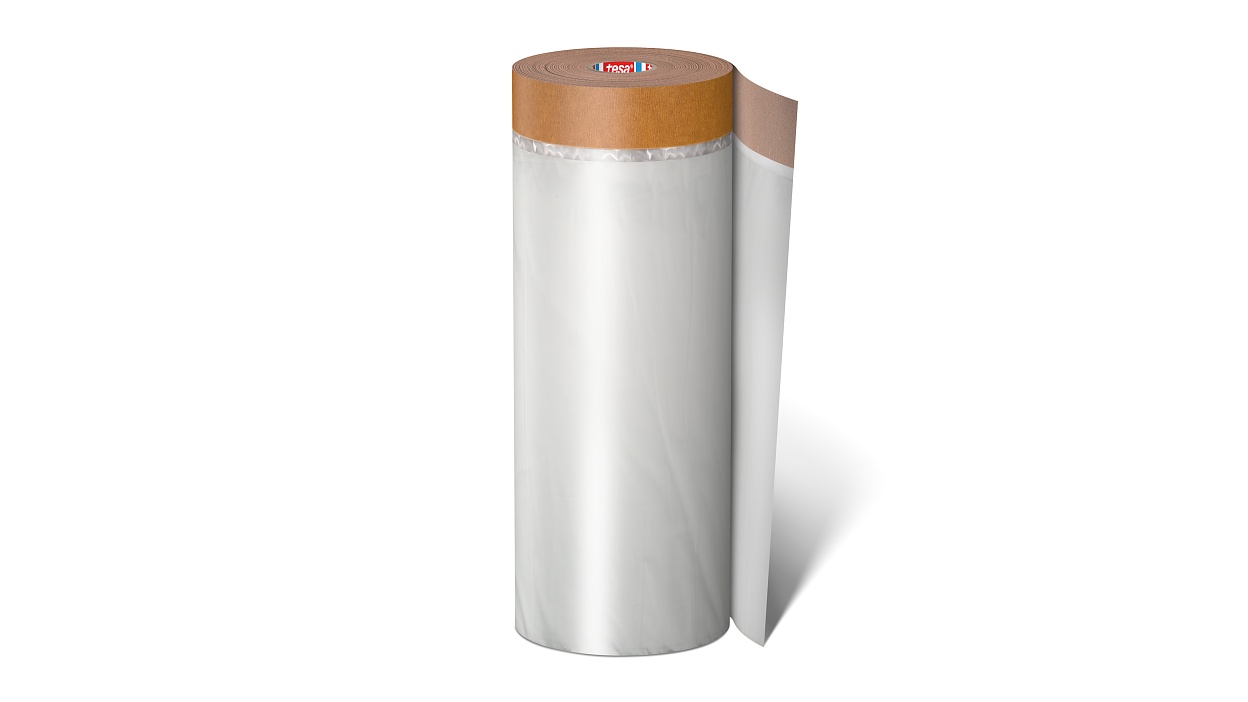

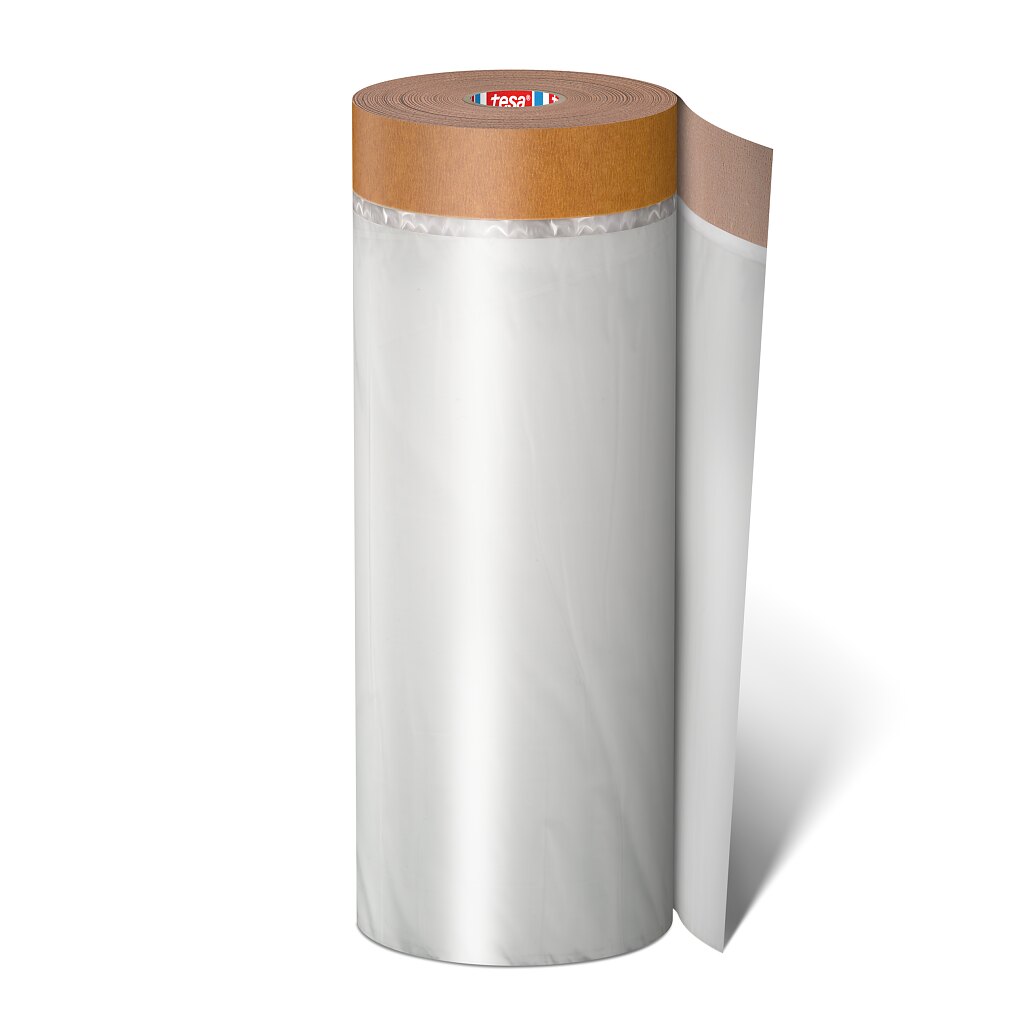

tesa RollMasker 4903 LT is a combination of 4309-tape and HDPE-film for large area maskings during mulitcolor car paintings in the paint shop at automotive OEMs.
The combination of tape and film reduces process times and material waste at the OEM compared to a stand-alone filmic hood. It ensures an efficient and reliable masking process with a temperature resistance of up to 120°C/1h. Thus, it can be used at paintings with wet-demasking processes or medium temperature oven temperatures.
Besides, it offers the following features:
- Tear resistant paper masking tape enable quick de-masking drying
- Statical loading of film eliminates risk of overspray as well as paint deformations on the car body
- tesa dispenser available for roll masker
Product details and specifications
Application Fields
- Car body masking
- Efficient overmasking
- Bumper masking without flaming or powerwash requirements
- Large area masking at low to medium temperatures
- Masking with wet de-masking processes
Product Construction
| Backing material | Paper |
|---|---|
| Total thickness | 170 µm |
| Type of adhesive | natural rubber |
Product Construction
| Backing material | Paper |
|---|---|
| Total thickness | 170 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 12 % |
|---|---|
| Tensile strength | 47 N/cm |
| Thickness of masking coverage | 20 µm |
| Material of masking coverage | HDPE |
Properties / Performance Values
| Elongation at break | 12 % |
|---|---|
| Tensile strength | 47 N/cm |
| Thickness of masking coverage | 20 µm |
| Material of masking coverage | HDPE |
Adhesion to Values
| Adhesion to steel | 3.5 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 3.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
