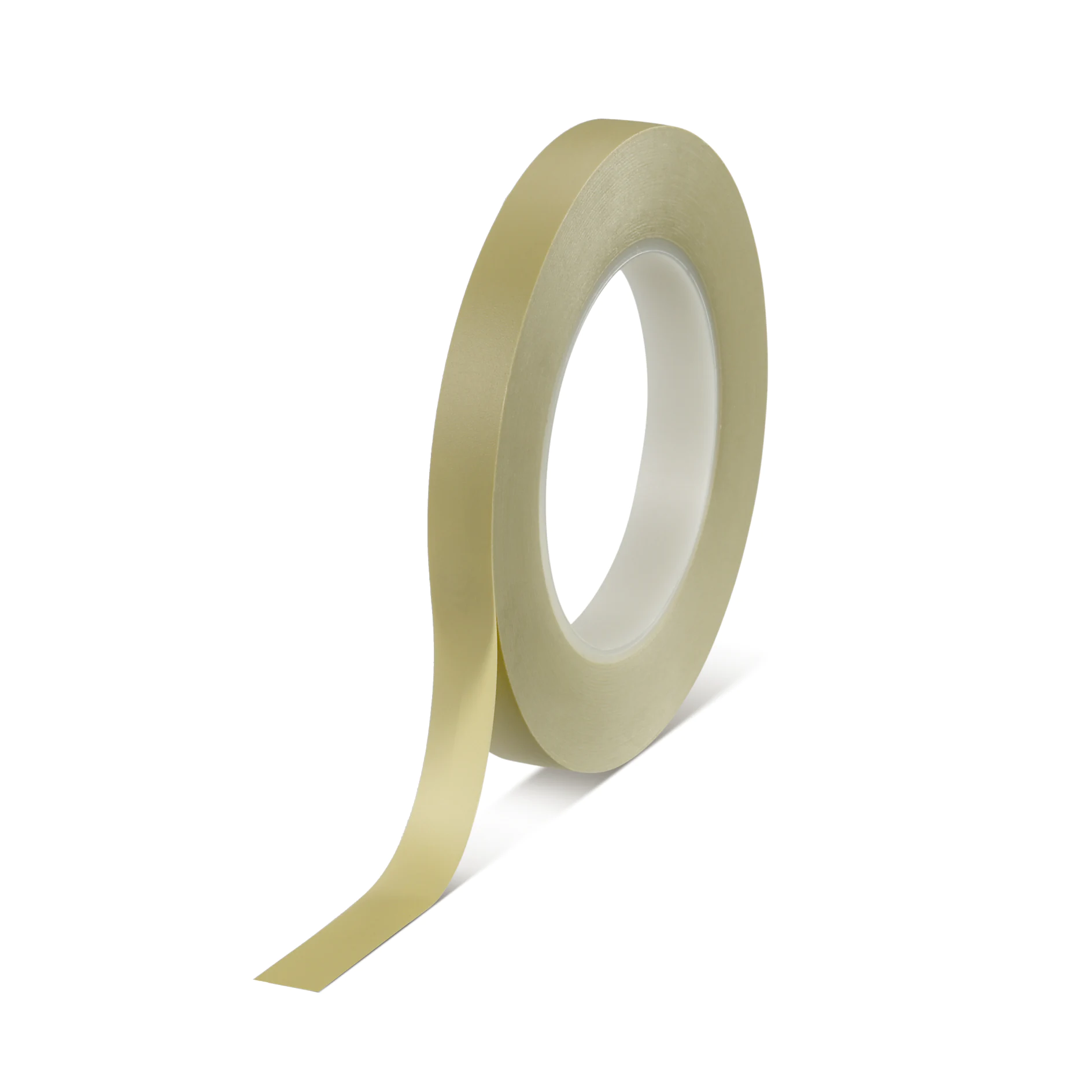

tesa® 4174

Fineline tape for design painting in the automotive industry

Product Features

Excellent masking performance on painted and non-painted substrates
No ghosting or residues until 150°C/1h
Good conformability with multidimensional surfaces

All product features

Product description

tesa® 4174 is your reliable partner for professional paint work. The very thin, highly flexible and temperature-resistant masking tape is suited e.g. to cover plastic elements, allows creating flat paint edges and supports you in working on tight curves. tesa ® 4174 consists of a PVC film fitted with an adhesive made from natural rubber, can be comfortably used and removed without any residues.

Product details and specifications

Product Features

Excellent masking performance on painted and non-painted substrates
No ghosting or residues until 150°C/1h
Good conformability with multidimensional surfaces
Edge does not lift off and residue-free removal

Application Fields

tesa® 4174 is suitable for various types of masking applications. Example applications are:

Masking of painted and non-painted substrates (e.g. automotive plastic parts) that require sharp and flat paint edges
Two-tone car body masking To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.

Backing material	PVC film
Total thickness	110 µm
Type of adhesive	natural rubber

Elongation at break	200 %
Tensile strength	25 N/cm
Easy to remove	yes
Sharp colour edge	yes
Paint anchorage	yes
Temperature resistance (60 min)	150 °C
Flame retardance	very good
Suitable for die cutting	yes

Adhesion to steel	3.7 N/cm

tesa® 4174 in small width (10mm): adhesion to steel = 2,4N/cm. tesa® 4174 is also available for converting and die-cutting with a paper liner 4174 PV4: adhesion to steel = 4,4N/cm, peel off force from liner = 14 cN/cm. Also available as customized die cuts upon request as tesa® 54174

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 4174_en-SG 51.2 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 4174	tesa® 4185 RollMasker HT	tesa® 7140 PV3	tesa® 4244 PV0	tesa® 51109	tesa® 4185 RollMasker MT	tesa® 4244 PV2	tesa® 7140 HT RollMasker	tesa® 4216	tesa® 50555	tesa® 4309 Roll Masker Light
Total thickness	110 µm	100 µm	181 µm	110 µm	80 µm	100 µm	130	168 µm	105	120 µm	170 µm
Type of adhesive	natural rubber	natural rubber	natural rubber	natural rubber	natural rubber	natural rubber	natural rubber	natural rubber	acrylic	acrylic	natural rubber
Backing material	PVC film	PVC film	PVC film	PVC film	PET film	PVC film	PVC film	PVC film	PE film	PVC film	Paper
Thickness of masking coverage		30 µm				30 µm		30 µm			20 µm
Material of masking coverage		HDPE				PO film		HDPE			HDPE
