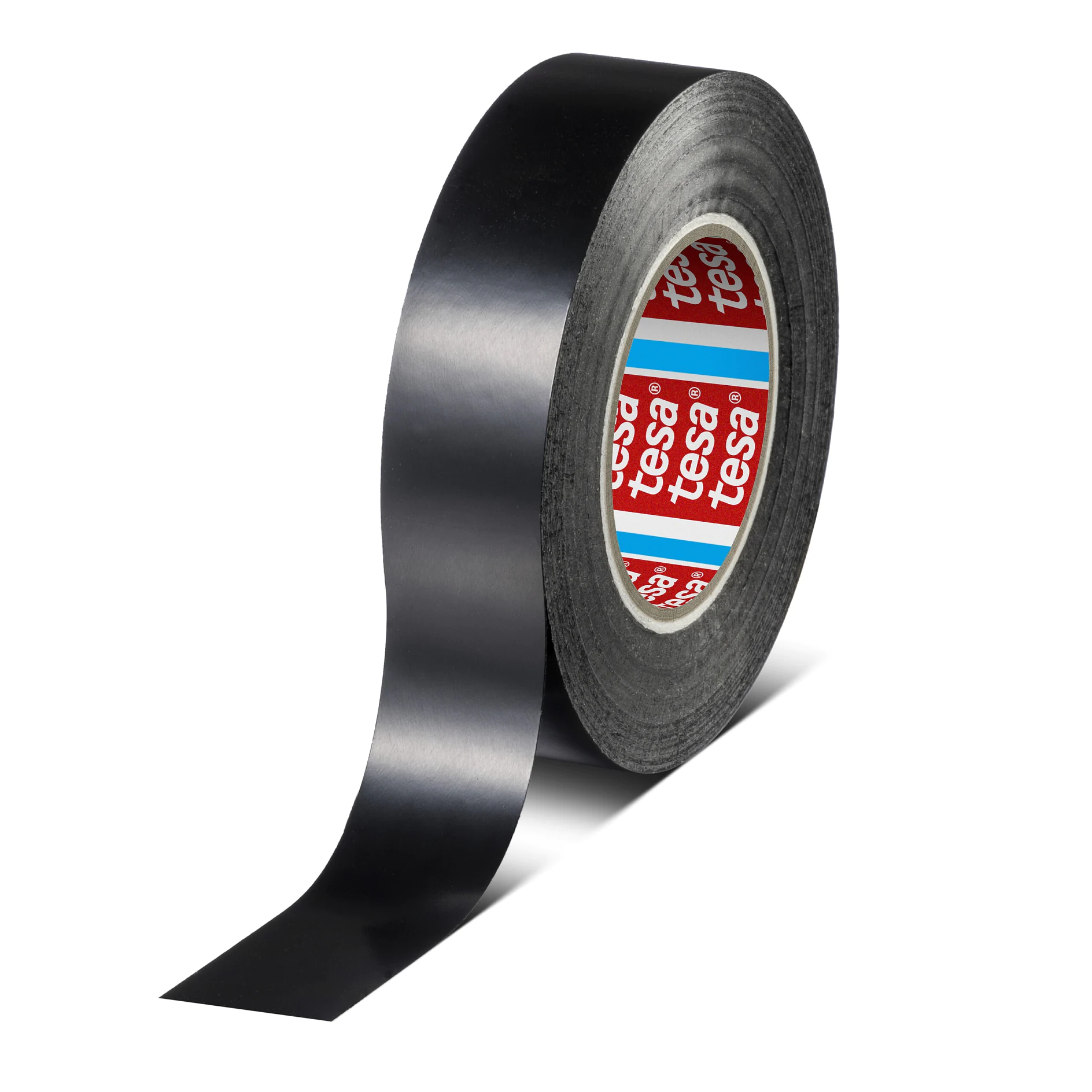

tesa® 4173 PV2

Soft PVC tape for standard wrapping


Product description

tesa® 4173 PV2 is a PVC film wire harness tape with an acrylic adhesive.

Major Features:

  • Temperature resistance 105°C/3000h
  • Flexible
  • Handtearable

Color: Black


Product details and specifications

Application Fields

tesa® 4173 is designed for the passenger compartment for standard wrapping up to a temperature class of 105°C.
Backing material PVC film
Total thickness 126 µm
Type of adhesive acrylic
Elongation at break 250 %
Tensile strength 30 N/cm
Temperature resistance min. -25 °C
Dielectric breakdown voltage 7,000 V
Abrasion resistance (5mm mandrel, LV312) Class A
Abrasion resistance (10mm mandrel, LV312) Class A
Noise damping (LV312) Class A
Temperature resistance max. 105 °C
Adhesion to steel 1.8 N/cm
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 33 m

1 Most combinations of width and length are possible
1 Further dimensions are available upon request

1 Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 4173 PV2 tesa® 62309 tesa® 51608 tesa® 51616 ID tesa® 51025 PV10 tesa® Spiralsleeve 51026 PV5 tesa® Sleeve 51026 PV9 tesa® 51616 tesa® 51006 tesa® 51026 tesa® Sleeve 51036 PV9
Total thickness
126 µm
95
280 µm
650 µm
150 µm
530 µm
220 µm
650 µm
320
260 µm
220 µm
Type of adhesive
acrylic
acrylic
rubber based
rubber based
rubber based
acrylic
acrylic
rubber based
rubber based
acrylic
acrylic
Backing material
PVC film
PE film
PET fleece
PET fleece
PET cloth
PET cloth
PET cloth
PET fleece
PET cloth
PET cloth
PET cloth
Temperature resistance max.
105 °C
125 °C
105 °C
105 °C
125 °C
150 °C
150 °C
105 °C
150 °C
150 °C
150 °C
Adhesion to steel
1.8 N/cm
2 N/cm
3 N/cm
3 N/cm
6.5 N/cm
5.5 N/cm
5.5 N/cm
3 N/cm
4.5 N/cm
5.5 N/cm
5 N/cm
Temperature resistance min.
-25 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
-40 °C
