Additional Info
- Liner: PV31 = White siliconized HDPE film liner, works with tesa® 50699/50099 PSA tabbing tapes.
tesa® ACXplus 77206 Base Line

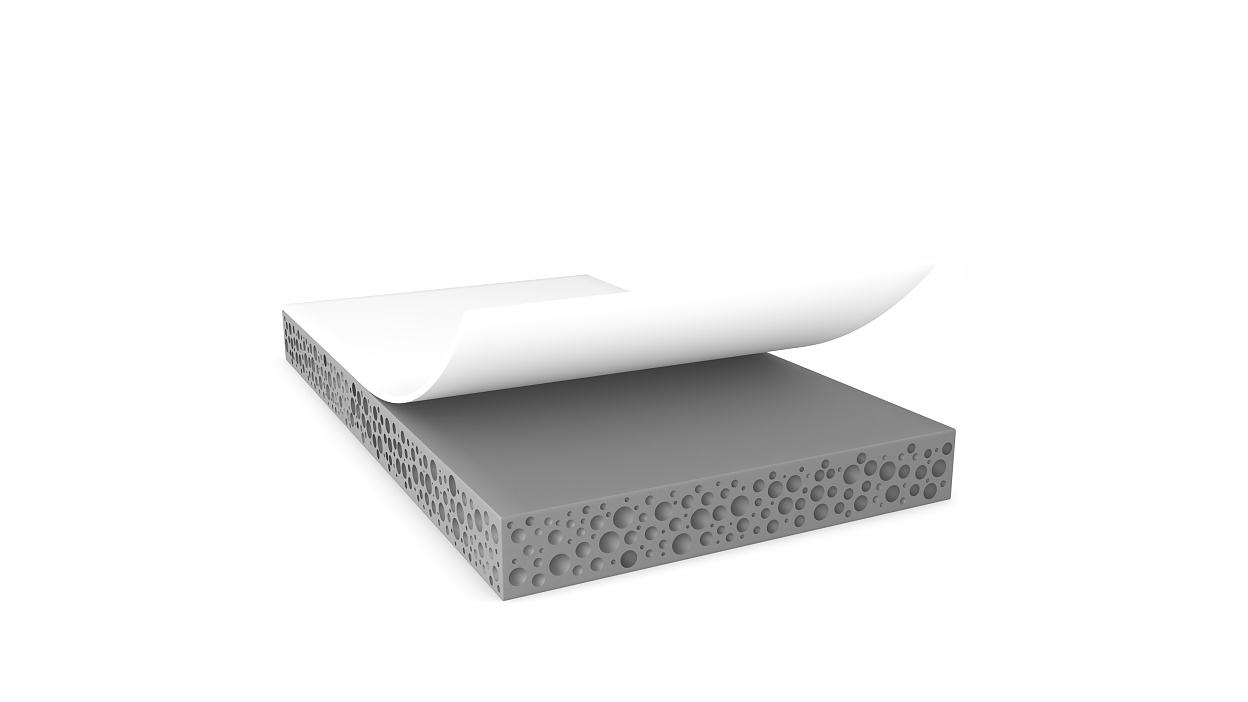

0.6 mm double-sided acrylic foam tape
Product description
tesa® ACXplus 77206 is a single layer acrylic foam tape designed for automotive attachment parts. Its viscoelastic acrylic foam core achieves reliable and high bonding performance on a variety of substrates, and it can withstand changing environmental conditions throughout the lifetime of a vehicle.
Also available in 0.4mm, 0.8mm, 1.0mm and 1.2mm thickness.
Main Features
- Viscoelastic acrylic foam core compensates stress caused by different thermal elongation of bonded parts
- Good dynamic and static shear resistance over a wide temperature range
- PFAS / PFOS free Product
- High UV resistance
- Good converting properties.
Product details and specifications
Application Fields
tesa® ACXplus 77206 is suitable for permanent exterior mounting applications like:

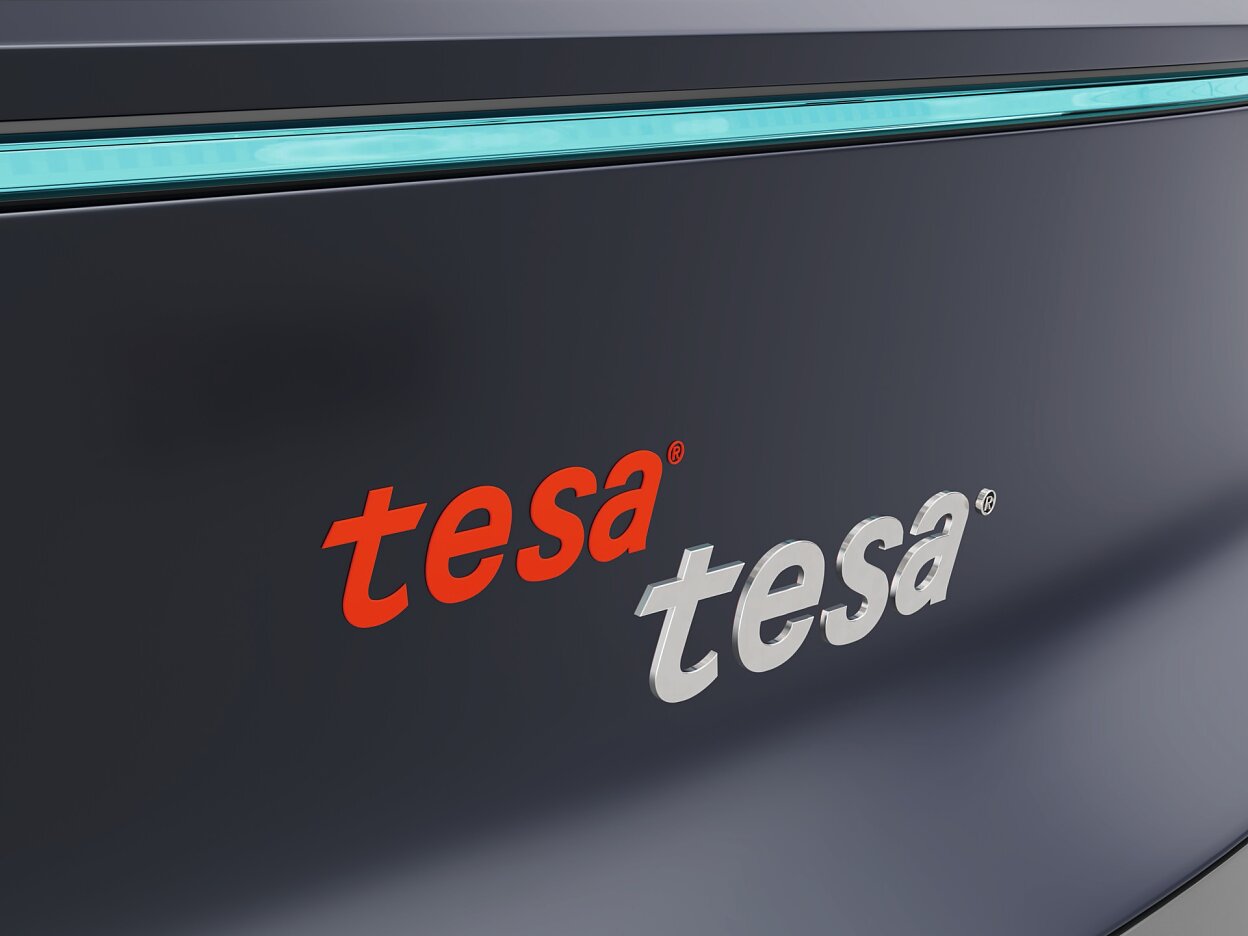

- Emblems

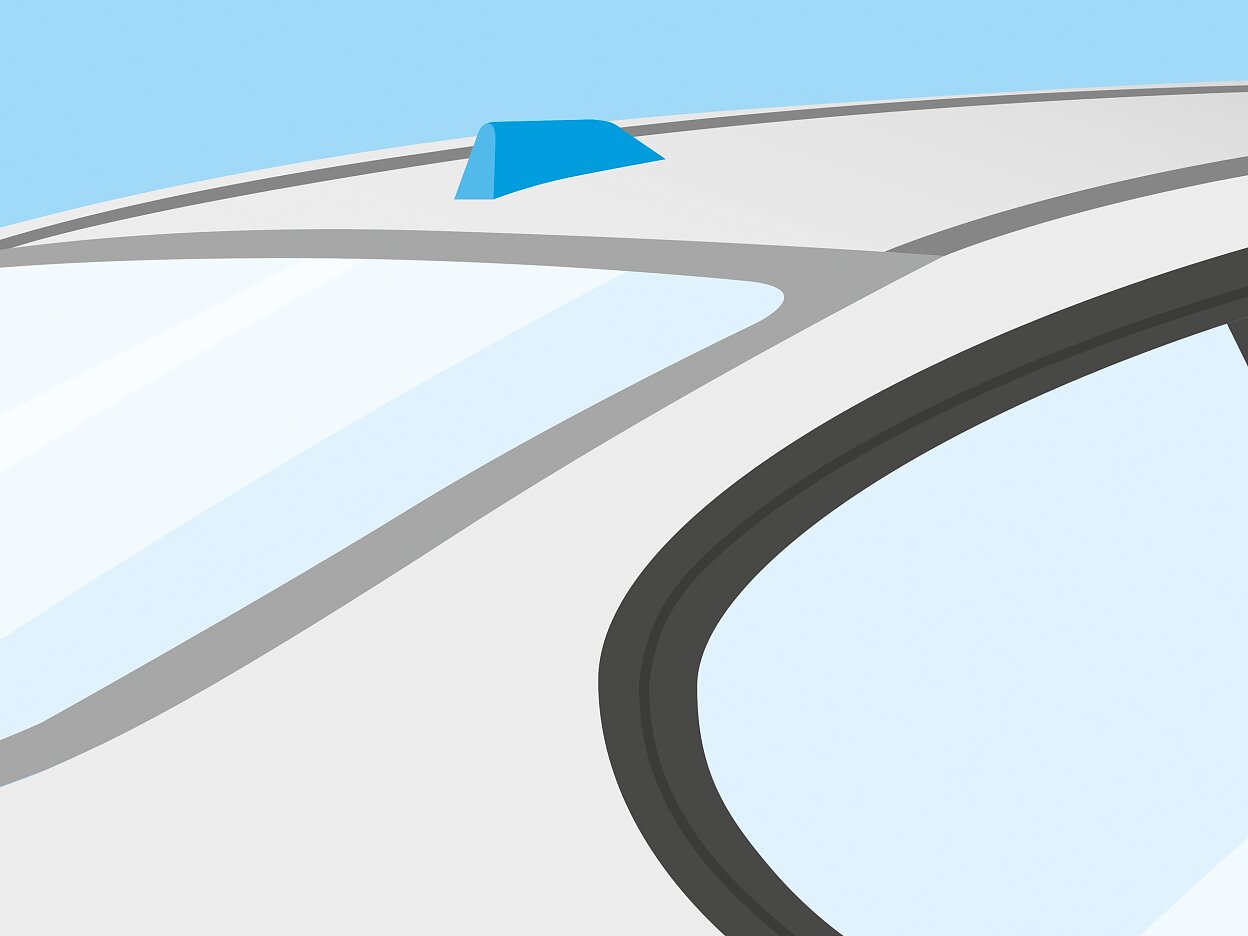

- Antennas

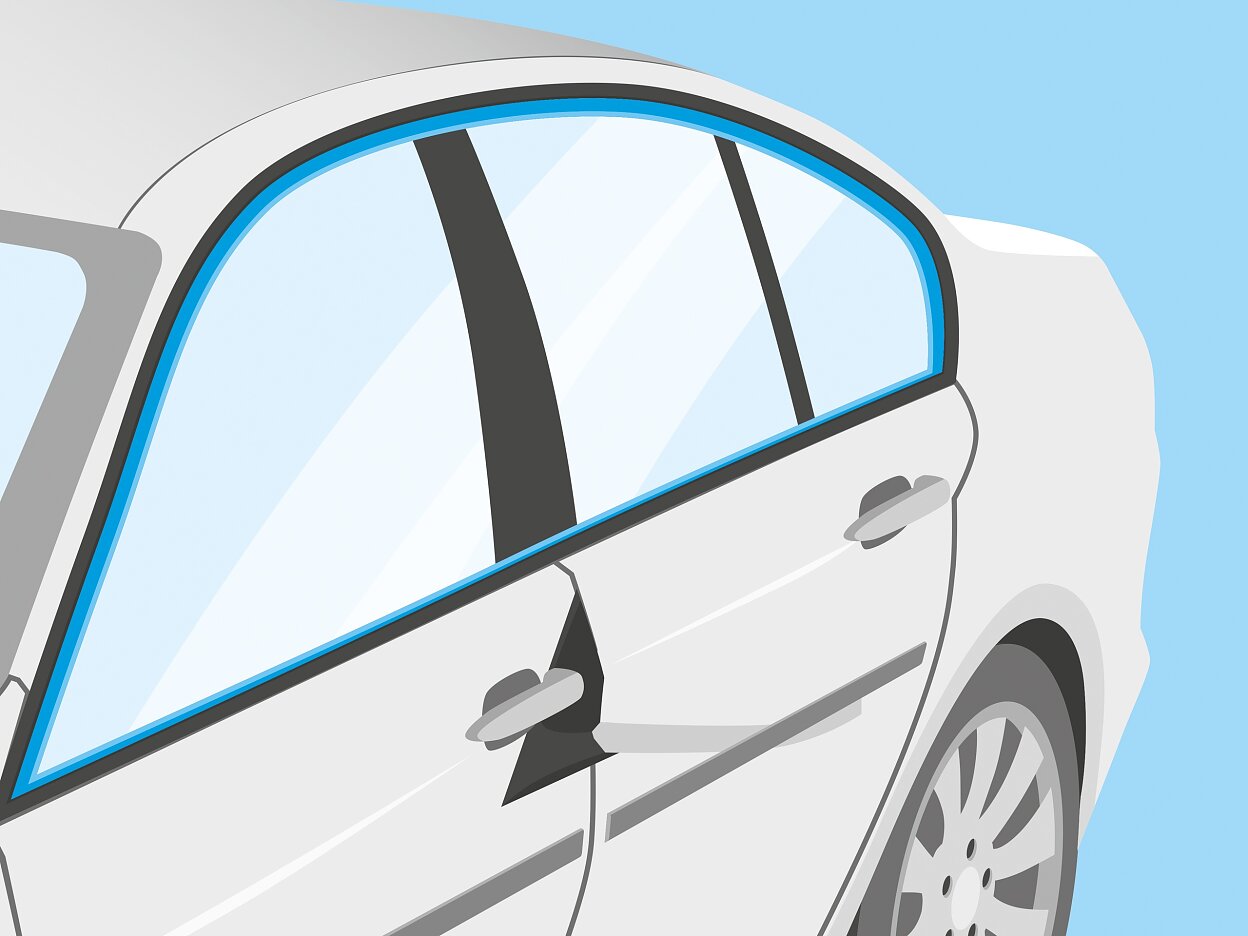

- Window Seal
| Backing material | foamed acrylic |
|---|---|
| Color | grey |
| Total thickness | 600 µm |
| Type of adhesive | pure acrylic |
| Temperature range | -40 to 80 |
|---|---|
| Humidity resistance | good |
| Ageing resistance (UV) | very good |
| Adhesion to ABS (after 3 days) | 10 N/cm |
|---|---|
| Adhesion to Steel (after 3 days) | 24 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
