1.2mm double sided PE foam tape for primerless mounting of automotive exterior and interior parts

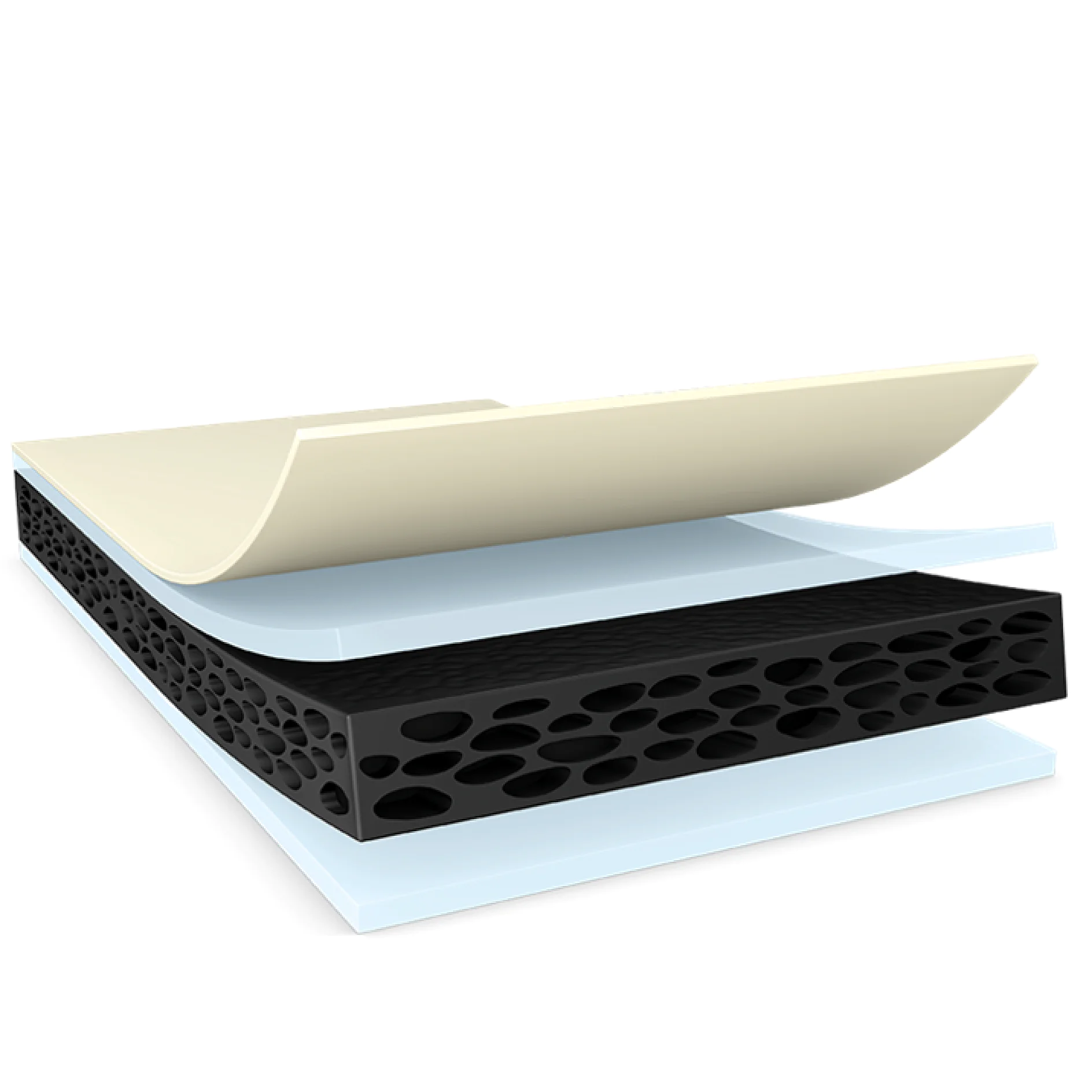

Product descriptiontesa® 64912 is a double-sided adhesive tape consisting of a conformable black PE foam backing and a LSE adhesive. With a thickness of 1.2 mm, it is suitable for mounting sensor brackets onto bumpers, e.g. for PDC, as well as small decorative exterior and interior trims.
The LSE adhesive features a high initial adhesion to LSE clear coats and LSE plastics like PP and PP/EPDM, and MSE plastics like ABS and PC without using primer. It reaches ultimate peel adhesion level right after application. Additionally, it even provides near to ultimate performance at an application temperature as low as 5°C. The impressive cold shock performance results from the damping properties of the PE foam backing even at temperatures below -40°C.
Due to its high conformability, the tape ensures a good wet out and secure bonding also on uneven surfaces and compensates for design tolerances. The PE foam backing also provides non-sticky edges resulting in excellent converting properties, e.g. for die cutting. Additionally, the tape combines high cohesive strength with a comparatively low density contributing positively to a low weight design.
- High initial adhesion to LSE and MSE surfaces without primer
- Near to ultimate peel adhesion level right after application
- Conformable foam backing to compensate design tolerances or uneven surfaces
- Reliable performance at higher temperatures
- Excellent converting properties
LSE: low surface energy
MSE: medium surface energy
Main applicationstesa® 64912 is suitable for mounting a wide range of small exterior and interior trims and parts. To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Example applications are:
- Sensor brackets onto bumper, e.g. for PDC
- Small decorative exterior and interior trims
- Lettering like single letters for classification of car models or engine data
Elongation at break
Type of adhesive
Type of liner
Colour of liner
Thickness of liner
Adhesion to Steel (initial)
Adhesion to PP (after 14 days)
Adhesion to PP (initial)
Adhesion to Steel (after 14 days)
Additional InfoBacking material is PE/EVA foam.
PV0 brown glassine (69μm)
- initial and after 14 days: foam splitting on Steel and PP
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
