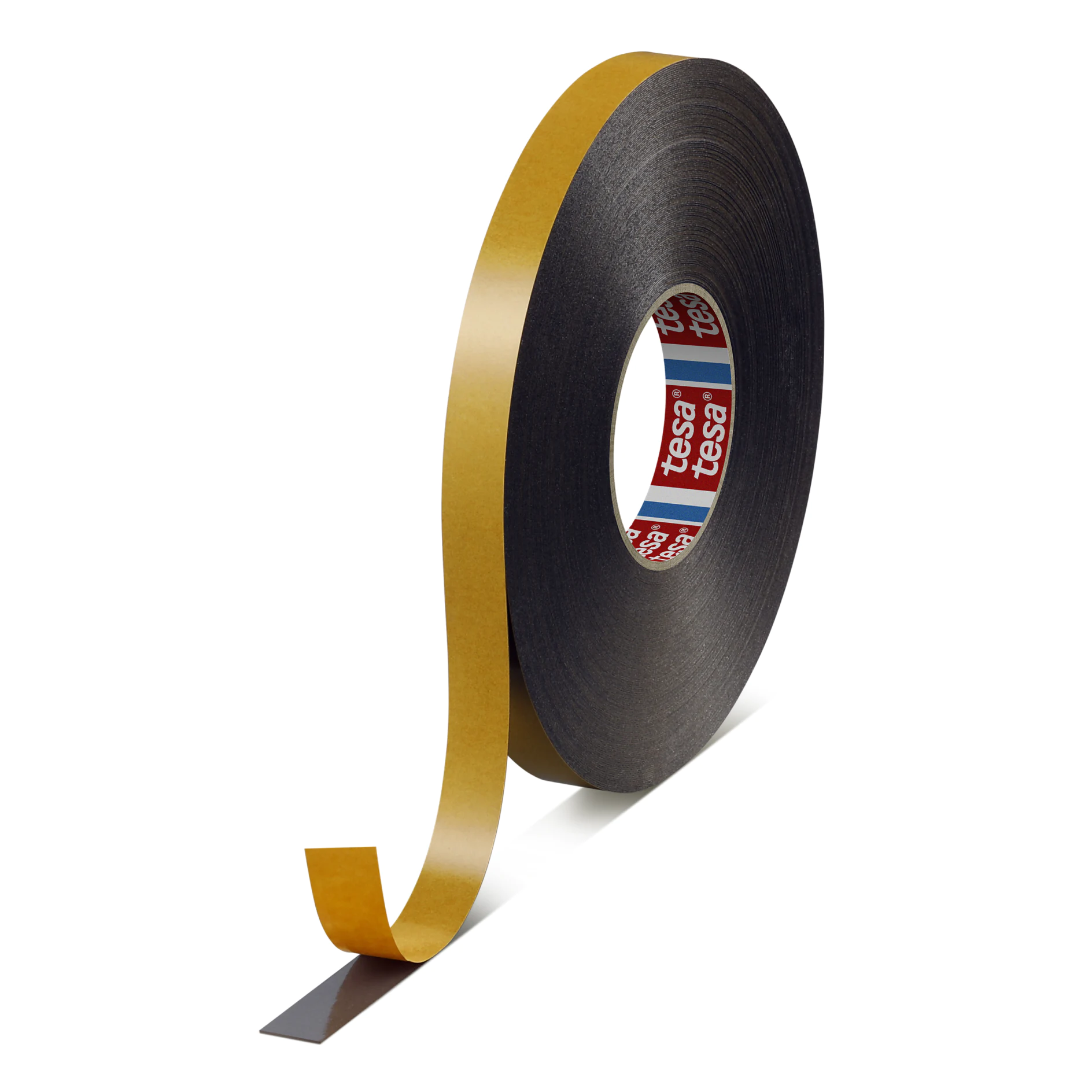

tesa® 62852

Double-sided PE foam tape

Product description

tesa® 62852 is a double-sided tape consisting of a PE foam backing and a pure acrylic adhesive.

tesa® 62852 features especially:

High ultimate adhesive strength for a secure bonding performance
Conformable foam backing to compensate design tolerances or uneven surfaces
Excellent temperature resistance performance
Excellent converting properties

Product details and specifications

Application Fields

Permanent mounting of emblems and letters; e.g. single letters for classification of car model or engine data

Backing material	PE foam
Color	black
Colour of liner	brown
Thickness of liner	71 µm
Total thickness	500 µm
Type of adhesive	pure acrylic
Type of liner	glassine
Weight of liner	80 g/m²

Elongation at break	400 %
Tensile strength	8 N/cm
Temperature resistance long term	90 °C
Static shear resistance at 40°C	very good
Temperature resistance short term	100 °C
Static shear resistance at 70°C	very good

Adhesion to ABS (initial)	6 N/cm
Adhesion to ABS (after 14 days)	13 N/cm
Adhesion to PE (initial)	1.5 N/cm
Adhesion to PE (after 14 days)	1.5 N/cm
Adhesion to Steel (initial)	9.5 N/cm
Adhesion to Steel (after 14 days)	20 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

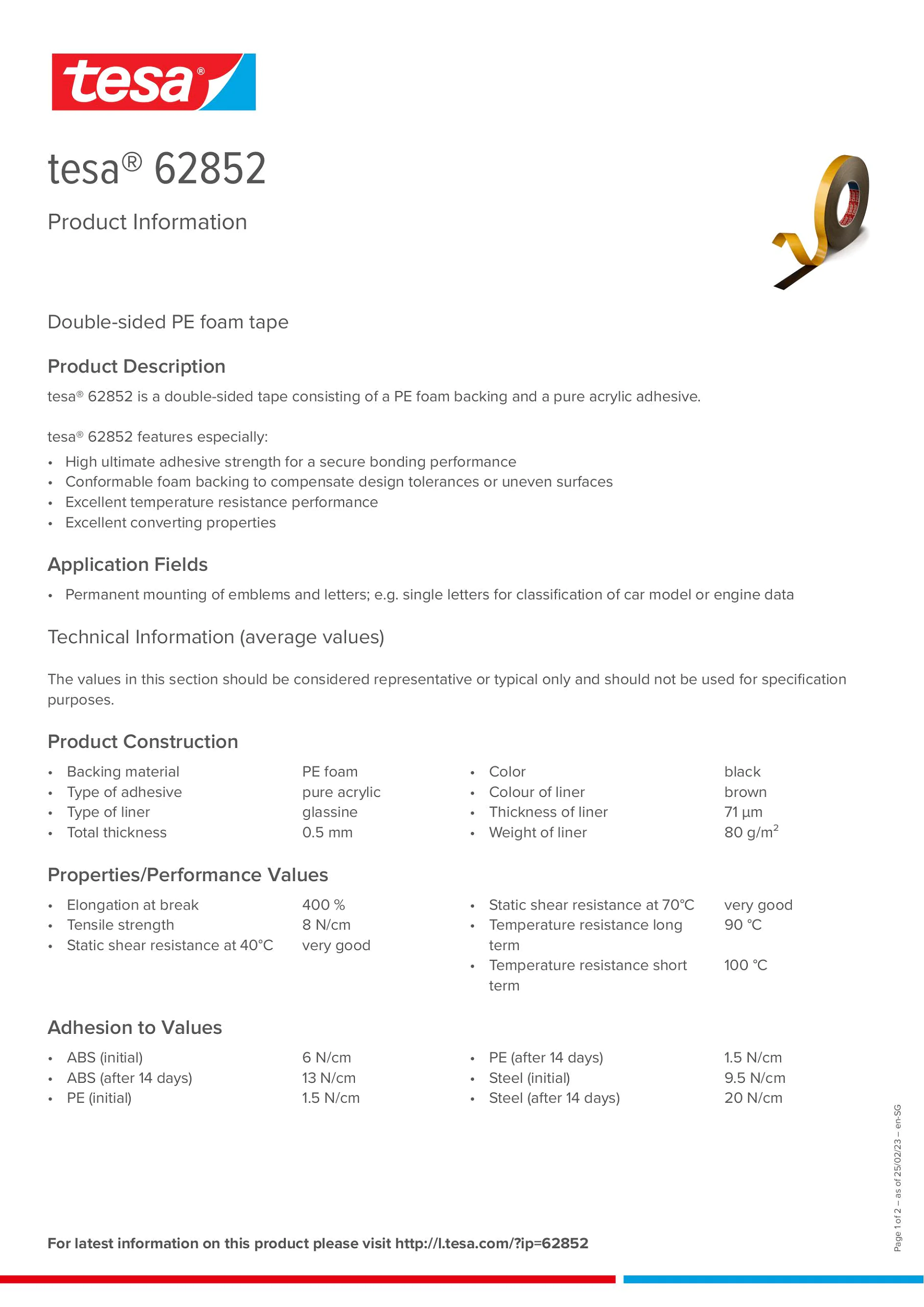

Product information_tesa® 62852_en-SG 68 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 62852	tesa® ACXplus 7805 Black Line	tesa® ACXplus 79011 Primerless Line	tesa® ACXplus 7811 Black Line	tesa® ACXplus 7815 Black Line	tesa® ACXplus 7812 Black Line	tesa® 62904 PV13	tesa® ACXplus 77115	tesa® ACXplus 77805 Primerless Line	tesa® 62708 PV0	tesa® ACXplus 7808 Black Line
Total thickness	500 µm	500 µm	1,100 µm	1,100 µm	1,500 µm	1,200 µm	400 µm	1,500 µm	500 µm	800 µm	800 µm
Type of adhesive	pure acrylic	modified acrylic	LSE	modified acrylic	modified acrylic	modified acrylic	acrylic	tackified acrylic	LSE	pure acrylic	modified acrylic
Backing material	PE foam	foamed acrylic	Acrylic foam	foamed acrylic	foamed acrylic	foamed acrylic	PE foam	foamed acrylic	foamed acrylic	PE foam	foamed acrylic
Color	black	deep black	grey	deep black	deep black	deep black	black	black	grey	black	deep black
