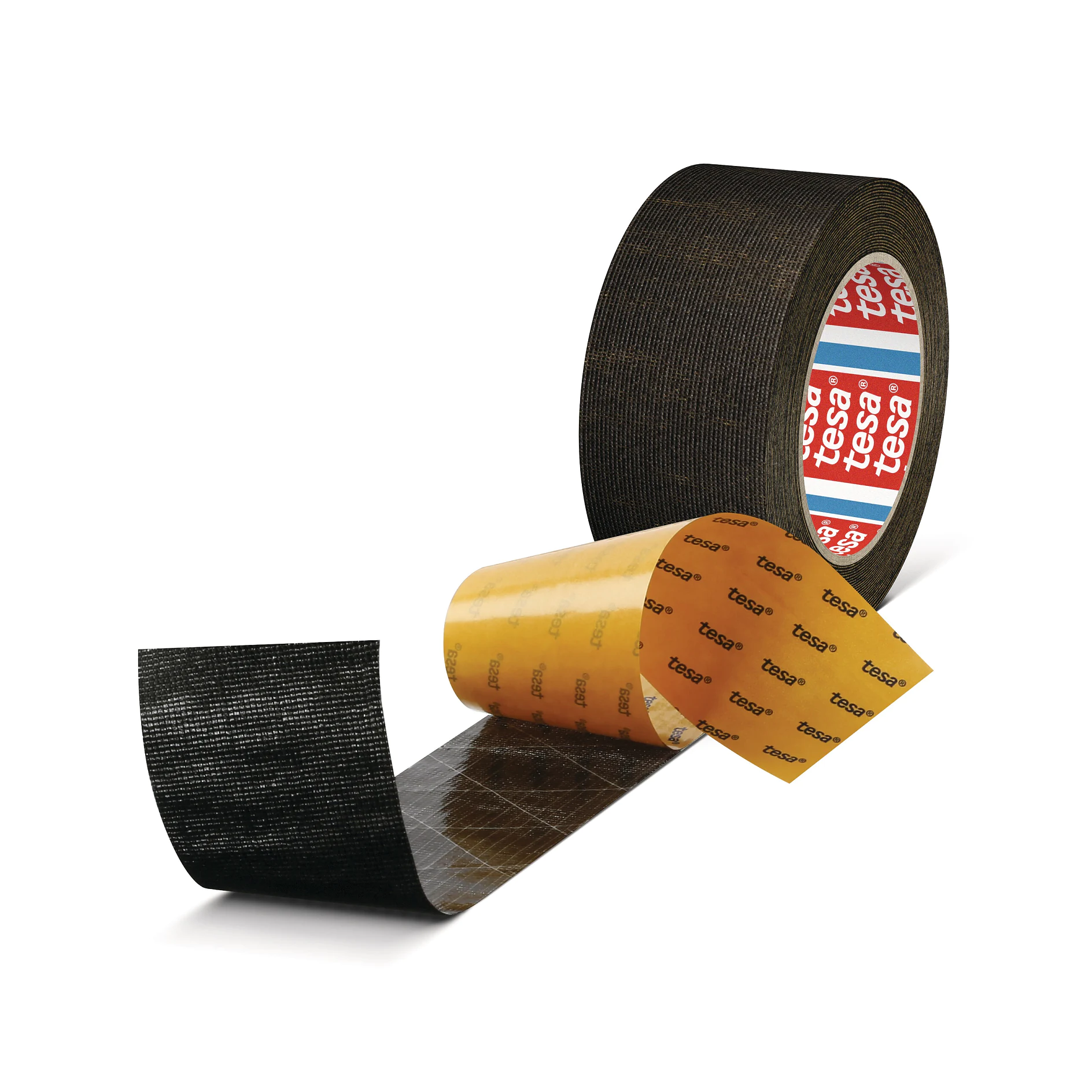

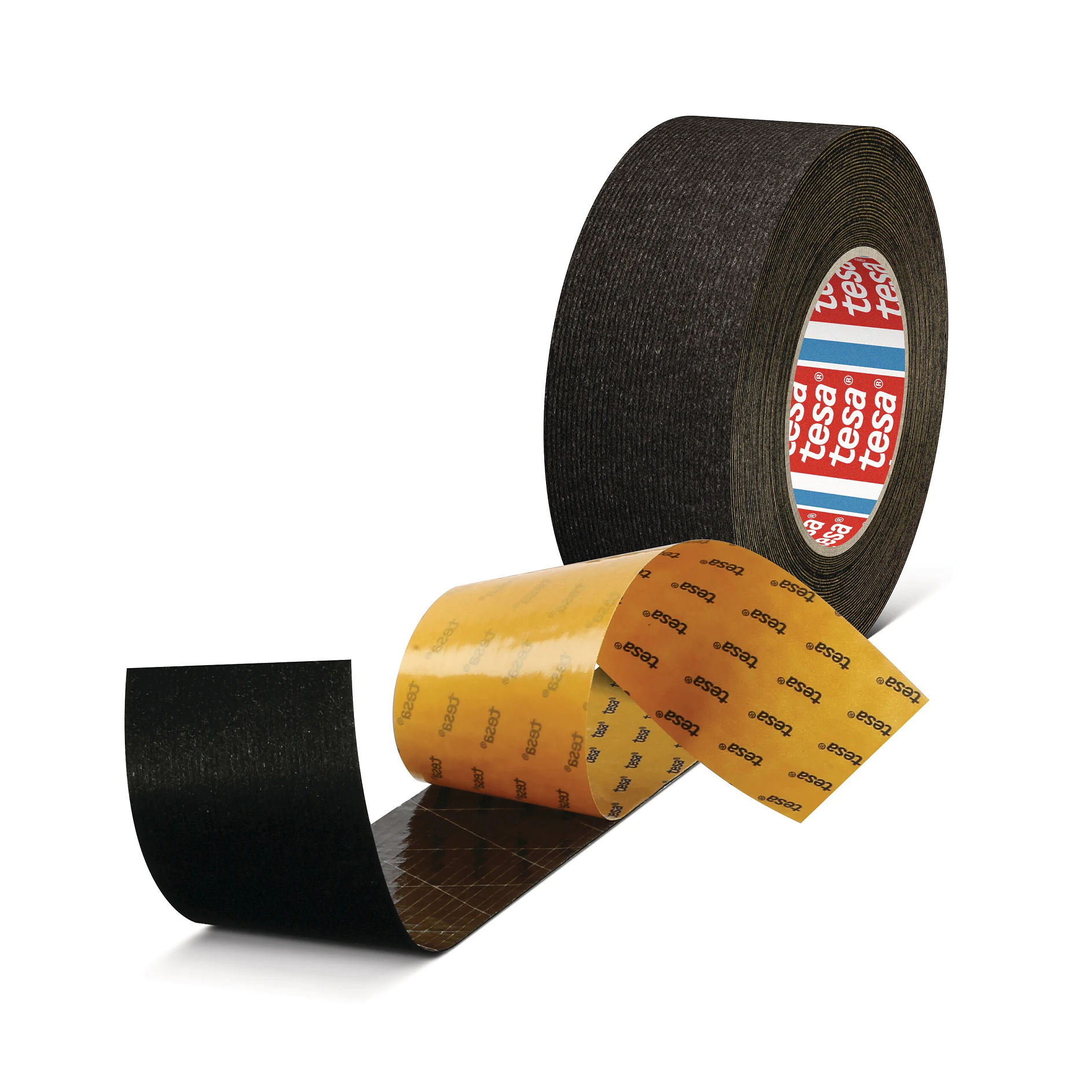

tesa® 60606 PV1

Premium self-adhesive PET fleece for demanding BSR applications

Product description

tesa® 60606 is a thick, black PET fleece with high adhesive power and a high abrasion resistance. The product is optimized for the damping of vibration and rattling noise in the automotive industry.

Features:

Excellent noise and vibration damping properties
High abrasion resistance
High conformability
High adhesive power
Resistant to ageing and weathering
Self extinguishing (tested as composite with a non-inflammable material)

Product details and specifications

Application Fields

Noise prevention
Vibration absorbance
Application on rough and curved surfaces or demanding bonding conditions
Bridging and cushioning small gaps

Backing material	PET fleece
Color	black
Colour of liner	brown/blue logo
Total thickness	760 µm
Type of adhesive	tackified acrylic
Type of liner	glassine

Backing material	PET fleece
Color	black
Colour of liner	brown/blue logo
Total thickness	760 µm
Type of adhesive	tackified acrylic
Type of liner	glassine

Elongation at break	85 %
Tensile strength	55 N/cm
Suitable for die cutting	yes
Abrasion resistance	medium

Elongation at break	85 %
Tensile strength	55 N/cm
Suitable for die cutting	yes
Abrasion resistance	medium

Adhesion to PE (initial)	3.6 N/cm

Adhesion to PE (initial)	3.6 N/cm

Sound dampening properties and abrasion resistance are measured according to LV 312.

tesa® 60606 can be supplied individually to customer specification in various dimensions.
Under the product number tesa® 54506, the material is also available as customized die cut.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60606_en-SG 72.6 kB
