Additional Info
- Standard widths: 19, 25, 38 mm
- Standard lengths: 7.5 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Applicable for red ring assembly aid

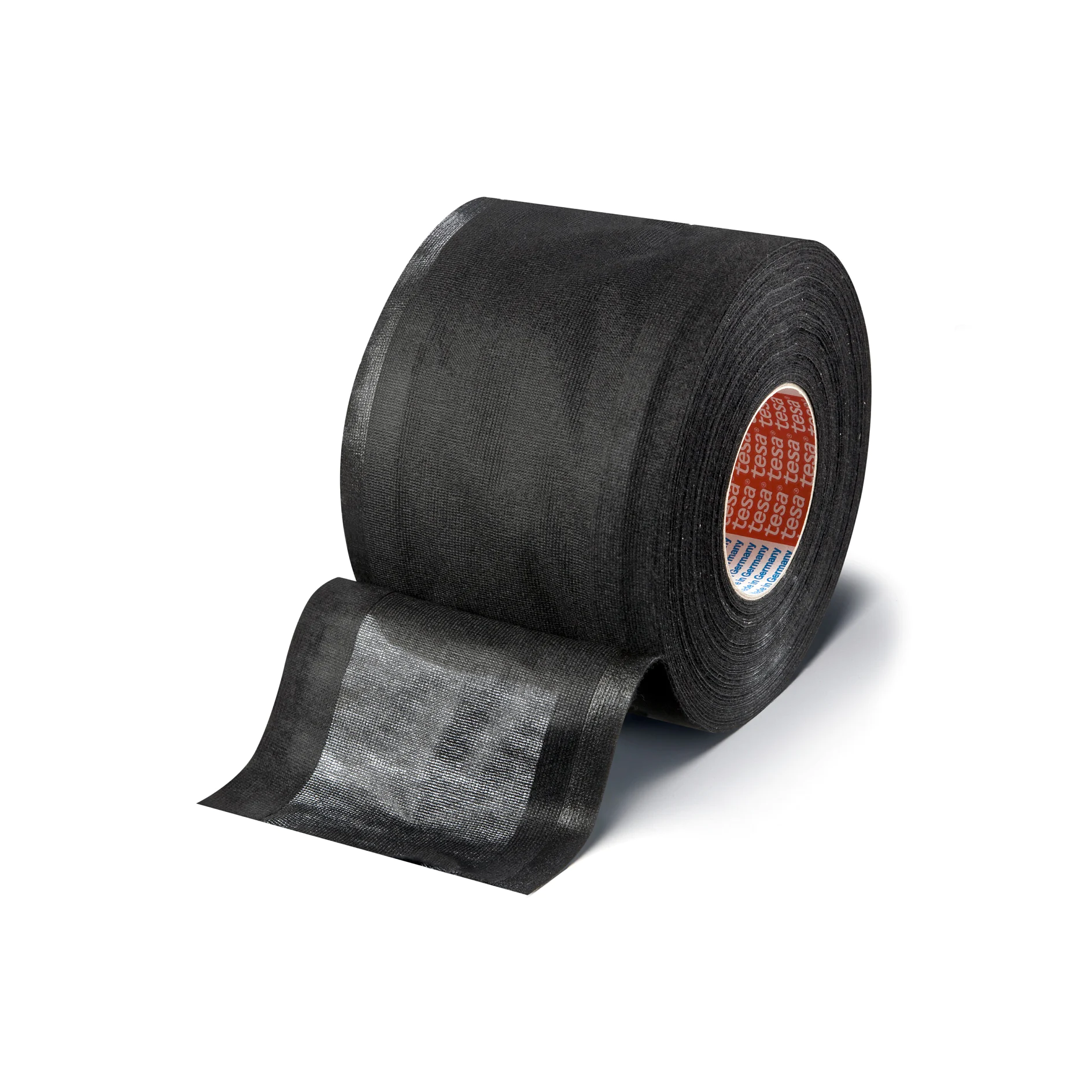

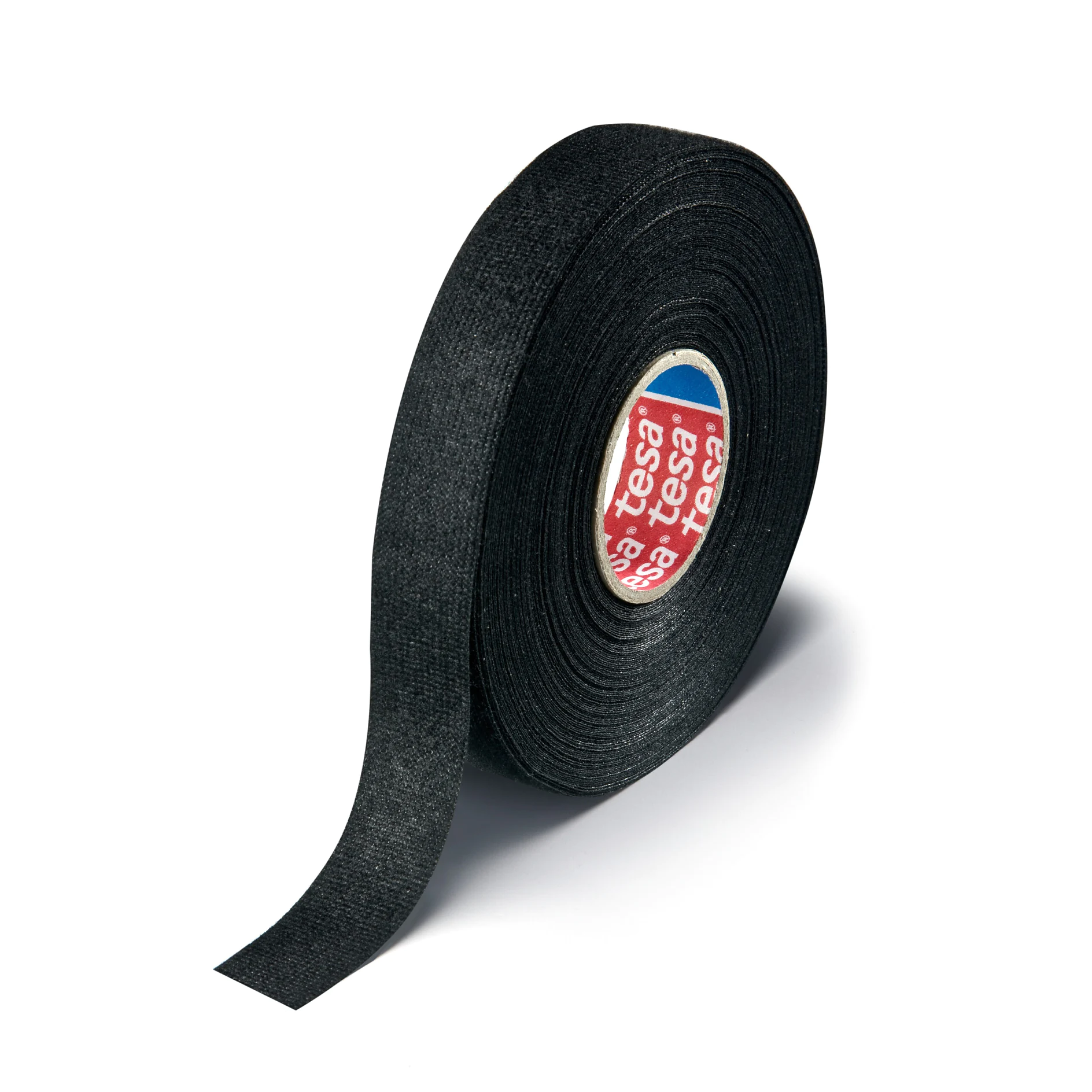

tesa® 51606
Thick PET fleece tape for high noise damping and water absorption
Product Features
- High noise damping
- High abrasion resistance
- Excellent water absorption
Product description
tesa® 51606 is a PET fleece tape with a rubber based adhesive.
Color: Black
Product details and specifications
Product Features
- High noise damping
- High abrasion resistance
- Excellent water absorption
- Excellent thermal insulation
Application Fields
tesa® 51606 is designed for applications in wire harnessing (passenger compartment) and electric vehicle battery packs.
Product Construction
| Backing material | PET fleece |
|---|---|
| Total thickness | 800 µm |
| Type of adhesive | rubber based |
Product Construction
| Backing material | PET fleece |
|---|---|
| Total thickness | 800 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Elongation at break | 85 % |
|---|---|
| Tensile strength | 55 N/cm |
| Unwind force (roll width > 9mm) | 7.5 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class C |
| Thermal conductivity x-y-direction | 0.066 W/mK |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Temperature resistance max. | 105 °C |
| Unwind force (roll width ≤ 9mm) | 7.5 N/roll (30 m/min) |
| Noise damping (LV312) | Class D |
Properties / Performance Values
| Elongation at break | 85 % |
|---|---|
| Tensile strength | 55 N/cm |
| Unwind force (roll width > 9mm) | 7.5 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class C |
| Thermal conductivity x-y-direction | 0.066 W/mK |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Temperature resistance max. | 105 °C |
| Unwind force (roll width ≤ 9mm) | 7.5 N/roll (30 m/min) |
| Noise damping (LV312) | Class D |
Adhesion to Values
| Adhesion to steel | 5.5 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 5.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
