tesa® Sleeve 51608 PV8

PET fleece Sleeve® for enhanced harness flexibility in the automotive passenger compartment

Product Features

High flexibility
Noise damping
Easy and efficient lengthwise application

All product features

Product description

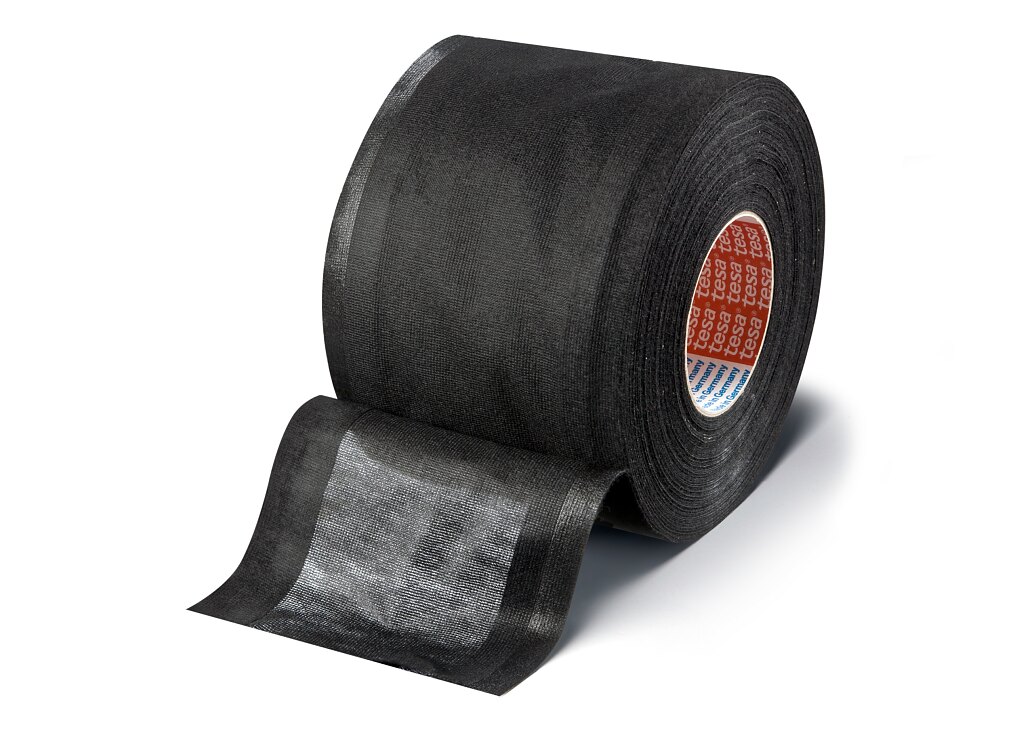

tesa Sleeve® 51608 PV8 is a PET fleece wire harness Sleeve® with a rubber-based adhesive. It combines good noise damping and abrasion resistance features with high flexibility.
tesa Sleeve® 51608 PV8 is specifically designed for easy and efficient lengthwise application.
Customized length-specific perforation for fast and clean tearing is available on request.

Product details and specifications

Product Features

High flexibility
Noise damping
Easy and efficient lengthwise application
Adhesive-to-adhesive closure system
Secure bonding without additional spot wraps
Strong adhesion
Ageing-resistant
Flexible and smooth
The Sleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility and the adhesive-to-adhesive closure system guarantees secure bonding without additional spot wraps.

Application Fields

tesa Sleeve® 51608 PV8 has been developed for bundling passenger compartment wire harness areas subject to high requirements for both noise damping and harness flexibility.

Backing material	PET fleece
Total thickness	210 µm
Type of adhesive	rubber based

Backing material	PET fleece
Total thickness	210 µm
Type of adhesive	rubber based

Abrasion resistance (10mm mandrel, LV312)	Class A
Temperature resistance max.	105 °C
Abrasion resistance (5mm mandrel, LV312)	Class A
Temperature resistance min.	-40 °C
Noise damping (LV312)	Class C

Abrasion resistance (10mm mandrel, LV312)	Class A
Temperature resistance max.	105 °C
Abrasion resistance (5mm mandrel, LV312)	Class A
Temperature resistance min.	-40 °C
Noise damping (LV312)	Class C

Adhesion to steel	3 N/cm

Adhesion to steel	3 N/cm

Standard widths: 80, 100, 130, 180, 250 mm
Standard lengths: 50 m
Most combinations of width and length are possible
Also available with customized perforation
Standard perforation length: 100-940 mm (in increments of 10 mm)
Further dimensions are available on request

Harness diameter / tesa Sleeve® width recommendation

< Ø 18 mm / 80 mm
Ø 18 mm – 24 mm / 100 mm
Ø 24 mm – 33 mm / 130 mm
Ø 33 mm – 49 mm / 180 mm
Ø 49 mm – 72 mm / 250 mm

Standard core diameter: 76 mm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® Sleeve 51608_en-SG 59.3 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® Sleeve 51608 PV8	tesa® Supersleeve 51026 PV6	tesa® 61623	tesa® 51026	tesa® Sleeve 51036 PV70	tesa® Sleeve 51036 PV9	tesa® 51619	tesa® Sleeve 51608 PV9	tesa® 51638 PV0	tesa® 51618	tesa® Sleeve 51036 PV9 OR
Total thickness	210 µm	530 µm	250 µm	260 µm	220 µm	220 µm	250 µm	210 µm	260 µm	250 µm	220 µm
Type of adhesive	rubber based	acrylic	rubber based	acrylic	acrylic	acrylic	rubber based	rubber based	water-based acrylic	rubber based	acrylic
Backing material	PET fleece	PET cloth	PET fleece	PET cloth	PET cloth	PET cloth	PET fleece	PET fleece	PET fleece	PET fleece	PET cloth
Temperature resistance max.	105 °C	150 °C	105 °C	150 °C	150 °C	150 °C	105 °C	105 °C	105 °C	105 °C	150 °C
Adhesion to steel	3 N/cm	5.5 N/cm	2 N/cm	5.5 N/cm	5 N/cm	5 N/cm	3 N/cm	3 N/cm	2.3 N/cm	3 N/cm	5 N/cm
Temperature resistance min.	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
