tesa® EasySplice 51150 FastLine

Repulpable, double-sided splicing tape

Product Features

Highest tack properties
Very good adhesion values on coated and uncoated paper
Low splice thickness

All product features

Product description

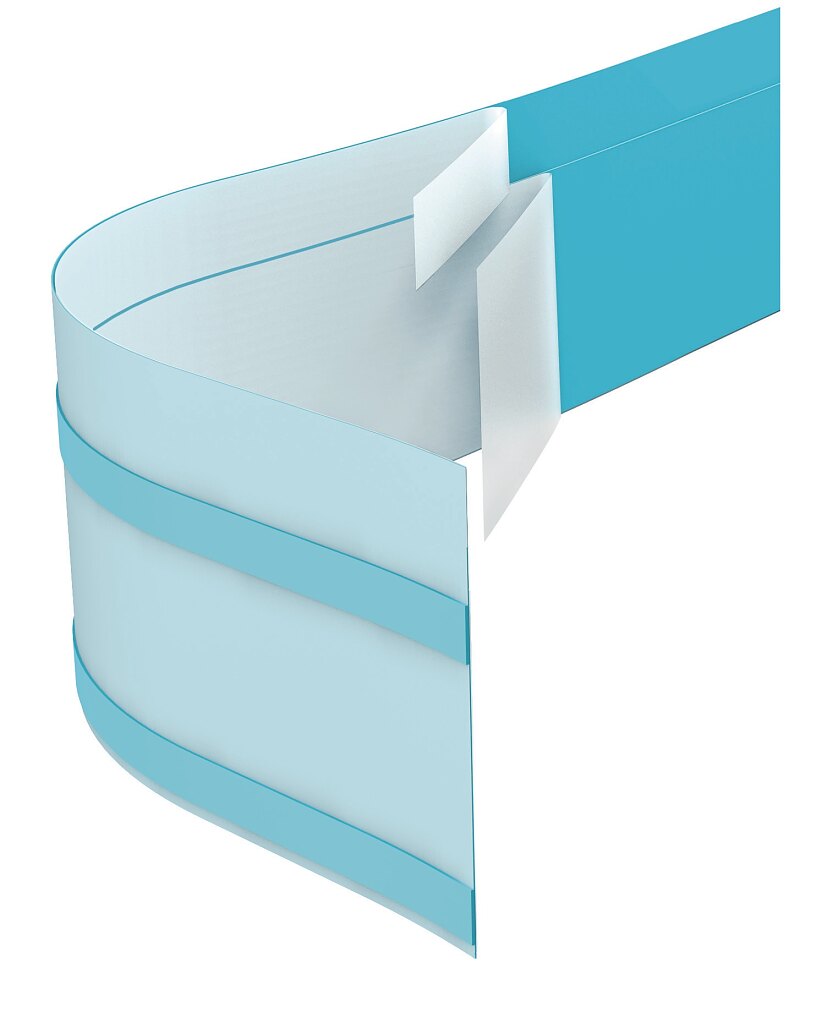

tesa® 51150 EasySplice® FastLine is a repulpable double-sided integrated flying splice tape consisting of a flat-back paper and a modified water soluble acrylic adhesive

tesa® 51150 EasySplice® FastLine features especially:

Highest tack properties
Very good adhesion values on coated and uncoated paper
Low splice thickness
Printable and coatable backing
Good repulpability over full pH-range (pH3 – pH9)

Following functions are provided:

Slit liner for the secure fixation of the top sheet
Adhesive formulation with very high tack properties for excellent contact between expiring web and new reel
Two splitting strips with paper backing for a smooth opening of the new paper reel without jeopardizing the coating process

Colour: Blue

Product details and specifications

Product Features

Highest tack properties
Very good adhesion values on coated and uncoated paper
Low splice thickness
Printable and coatable backing
Good repulpability over full pH-range (pH3 – pH9)
Slit liner for the secure fixation of the top sheet
Adhesive formulation with very high tack properties for excellent contact between expiring web and new reel
Two splitting strips with paper backing for a smooth opening of the new paper reel without jeopardizing the coating process

Application Fields

tesa® 51150 EasySplice® FastLine is particularly suitable for:

Flying splices at fast running off-line coaters

Backing material	flat paper
Color	blue
Thickness of tape	100 µm
Total thickness	100 µm
Type of adhesive	repulpable tackified acrylic
Type of liner	repulpable siliconised paper

Elongation at break	6 %
Tensile strength	30 N/cm
Tack	good
Shelf life time (packed) < 25°C	16 months
Static shear resistance	medium

PV0: 2 split strips with 9mm width each
PV1: 2 split strips with 15mm width each
PV22: 2 split strips with 15mm width each and an evenly split liner

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® EasySplice 51150_en-SG 63.7 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® EasySplice 51150 FastLine	tesa® CaRes 51919	tesa® 51917	tesa® EasySplice 51405 LabelLine Film	tesa® EasySplice 51680 Rotogravure Plus	tesa® EasySplice 51786 Detect Plus	tesa® EasySplice 61170 CalenderLine Premium	tesa® EasySplice 51780 PrintLine Plus	tesa® EasyBridge 51721	tesa® 51914	tesa® EasySplice 51457 LabelLine Heat
Total thickness	100 µm		115 µm	120 µm	100 µm	110 µm	90 µm	100 µm	92 µm		100
Type of adhesive	repulpable tackified acrylic	repulpable tackified acrylic	repulpable tackified acrylic	synthetic rubber			repulpable tackified acrylic			repulpable tackified acrylic	tackified acrylic
Backing material	flat paper	Paper	non-woven	Paper	flat paper	Aluminised paper	flat paper	flat paper	flat paper	non-woven	Paper
Thickness of tape	100 µm	115 µm								90 µm
Type of liner	repulpable siliconised paper	bi-siliconised paper	repulpable siliconised paper	bi-siliconised paper			repulpable siliconised paper			repulpable siliconised paper	bi-siliconised paper
Type of liner	type: repulpable siliconised paper	type: bi-siliconised paper	type: repulpable siliconised paper	type: bi-siliconised paper			type: repulpable siliconised paper			type: repulpable siliconised paper	type: bi-siliconised paper
Color	blue	blue			orange	orange/silver	blue	orange	white		blue
