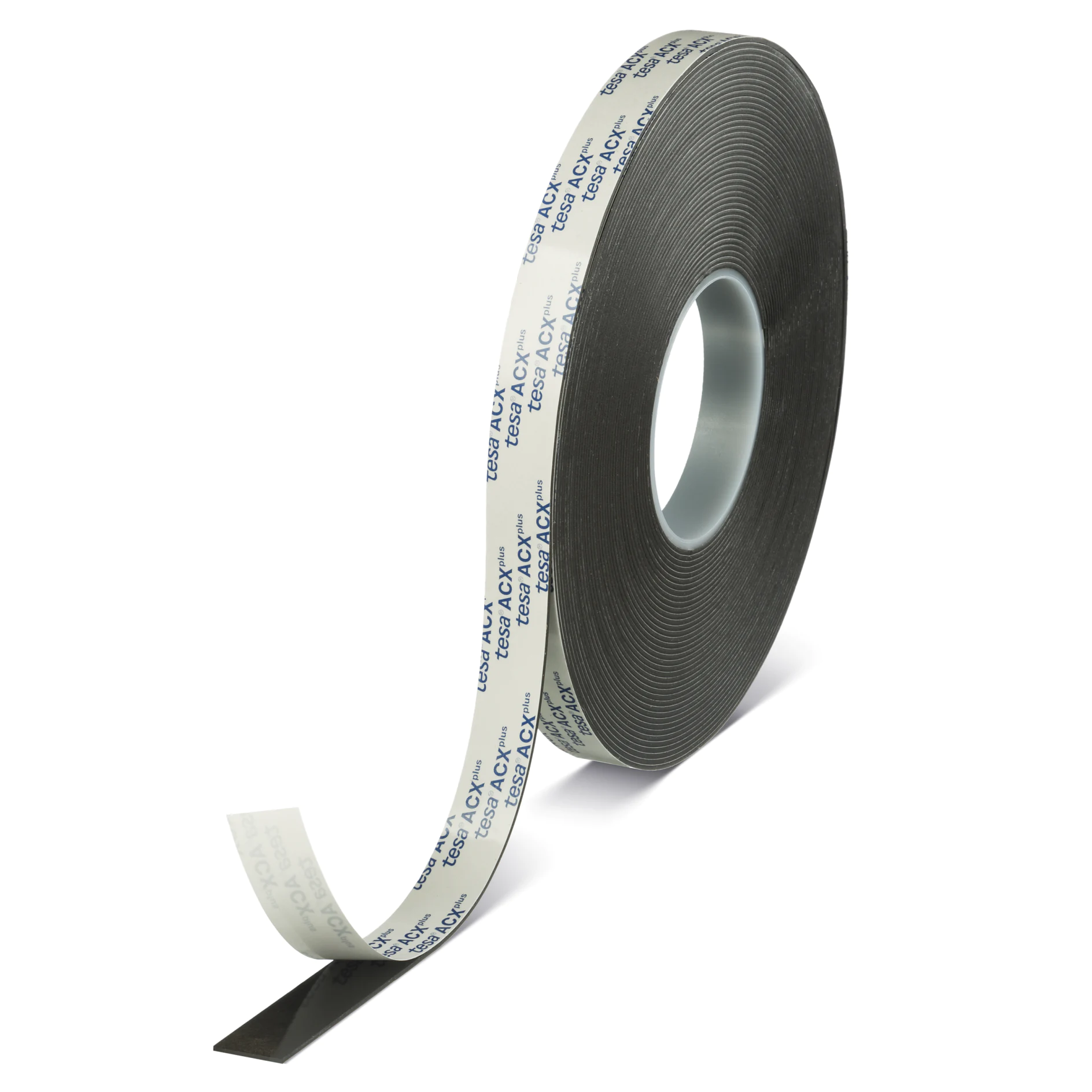

tesa® ACX^plus 7062

500µm double-sided acrylic foam tape

Product Features

It combines very high adhesion levels with a very good resistance against plasticizer migration.
The viscoelastic core of this product is able to compensate for thermal elongations of bonded parts.
This product provides a very high immediate tack and peel adhesion even on substrates with a low surface energy

Product description

tesa® ACX^plus 7062 is a deep black double-sided acrylic foam tape. It consists of a high performance acrylic system and is identified by its bonding power and stress dissipation.
Due to the product’s unique formulation, this double-sided acrylic foam tape combines very high adhesion levels with a very good resistance against plasticizer migration. The viscoelastic core of this product is able to compensate for thermal elongations of bonded parts.
tesa® ACX^plus 7062 is especially designed for the bonding of “hard-to-bond-materials” such as powder coatings or plastic materials. Even in combinations of such materials, this product provides advanced safety due to its innovative product design. This product provides a very high immediate tack and peel adhesion even on substrates with a low surface energy. The product is recommended for indoor usage.

Product details and specifications

Product Features

It combines very high adhesion levels with a very good resistance against plasticizer migration.
The viscoelastic core of this product is able to compensate for thermal elongations of bonded parts.
This product provides a very high immediate tack and peel adhesion even on substrates with a low surface energy

Application Fields

The tesa® ACX^plus product family is suitable for a wide range of constructive bonding applications. To ensure the highest performance possible, our aim is to fully understand the application (including the substrate involved) in order to provide the right product recommendation. Example bonding solutions of “hard-to-bond-materials” include but are not limited to:

Bumper rails
Signage, blades or panels
Reinforcement bars (e.g. in elevators)
Decorative parts on white goods (e.g. decorative panel mounting)

Backing material	foamed acrylic
Color	black
Total thickness	500 µm
Type of adhesive	tackified acrylic

Temperature resistance long term	70 °C
Temperature resistance short term	170 °C

Adhesion to ABS (initial)	11 N/cm
Adhesion to ABS (after 14 days)	19 N/cm
Adhesion to PP (initial)	2 N/cm
Adhesion to PP (after 14 days)	5 N/cm
Adhesion to Steel (initial)	19 N/cm
Adhesion to Steel (after 14 days)	32 N/cm
Adhesion to Steel (after 3 days)	32 N/cm

Please note that we recommend using tesa® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long-term resistance against harsh environmental factors. Which tesa® Adhesion Promoter should be used depends on the substrates and the application. We will be glad to advise you in order to find the right solution.
The product is recommended for indoor usage.
For permanent outdoor applications with load-bearing requirements, our first recommendation is tesa® ACX^plus 707x High Resistance.

PV22: White paper liner – branded

¹ PV24: Blue film liner – unbranded
¹ Further liner versions might be available upon request.
Certificates:

tesa® ACX^plus 7062 is recognized according to UL Standard 746C. UL File QOQW2.E309290
tesa® ACX^plus 7062 is recognized according to UL Standard 879. UL File UYMR2.E479260
Qualified for a credit according LEED

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® ACX^plus 07062_en-SG 69.6 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® ACXplus 7062	tesa® ACXplus 6812 Black Line	tesa® ACXplus 7255 Multi Purpose (MP)	tesa® ACXplus 7254 Multi Purpose (MP)	tesa® ACXplus 7046	tesa® ACXplus 7076	tesa® ACXplus 7054	tesa® ACXplus 7048	tesa® ACXplus 70740	tesa® ACXplus 7074	tesa® ACXplus 7065	tesa® ACXplus 7043
Total thickness	500 µm	1,200 µm	1,000 µm	500 µm	1,500 µm	1,500 µm	500 µm	2,000 µm	3,900 µm	1,000 µm	1,200 µm	640 µm
Type of adhesive	tackified acrylic	tackified acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	pure acrylic	tackified acrylic	pure acrylic
Backing material	foamed acrylic	foamed acrylic	solid acrylic	solid acrylic	filled acrylic	foamed acrylic	solid acrylic	filled acrylic	foamed acrylic	foamed acrylic	foamed acrylic	filled acrylic
Adhesion to Steel (initial)	19 N/cm	20 N/cm	14 N/cm	11 N/cm		18 N/cm			14 N/cm	16 N/cm	30 N/cm	17 N/cm
Adhesion to Steel (after 14 days)	32 N/cm		24 N/cm	19 N/cm		34 N/cm			38 N/cm	33 N/cm	48 N/cm	29 N/cm
Color	black	deep black	transparent	transparent		black	transparent		black	black	black
