tesa® ACXplus 7065

ACXplus High Adhesion 1200µm

  • The viscoelastic core of this product is able to compensate for thermal elongations of bonded parts.
  • This product provides a very high immediate tack and peel adhesion even on substrates with a low surface energy.
  • It combines very high adhesion levels with a very good resistance against plasticizer migration.

Product description

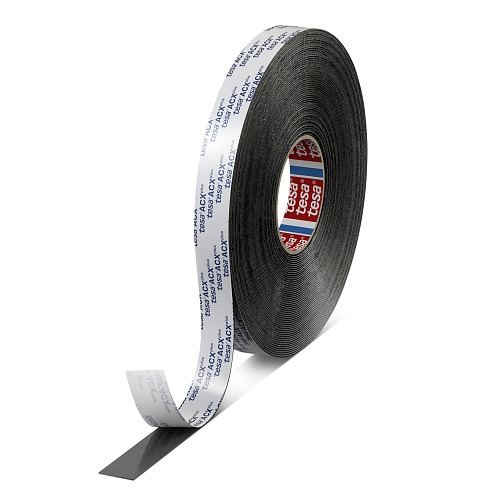

tesa® ACXplus 7065 is a black acrylic foam tape.
It consists of a high-performance acrylic system and is primarily characterised by its bonding power, stress dissipation and its temperature and weather resistance.

Due to its unique formulation it combines a very high adhesion level with a very good resistance against plasticizer migration. It is especially designed for the bonding of “hard-to-bond-materials” such as powder coatings or plastic materials. Even for combinations of such materials with all kind of metals, or metal/metal bonding, it offers a convenient solution due to high process safety.

The visco-elastic, foamed acrylic core compensates different thermal elongation of bonded parts.
The product provides a very high immediate tack and peel adhesion.

Application Fields

Bonding of hard-to-bond materials such as
  • Bumper rails
  • Powder coated blades and panels
  • Air distributaries

Product Construction

Backing material foamed acrylic
Type of adhesive tackified acrylic
Total thickness 1200 µm
Color black

Properties / Performance Values

Resistance to chemicals very good
Humidity resistance very good
Temperature resistance long term 70 °C
Temperature resistance short term 170 °C
Static shear resistance at 70°C medium
Tack very good
Ageing resistance (UV) very good
Softener resistance very good

Adhesion to Values

Adhesion to Steel (after 3 days) 48 N/cm

Additional Info

PV 22 = White PE coated paper liner tesa® ACXplus branded
PV 24 = Blue filmic liner
Adhesion values to PMMA, glass and aluminum are not part of the product specification.

tesa® ACXplus 7065 is recognized according to UL Standard 746C. UL File QOQW2.E309290
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
