Product Construction
| Backing material | none |
| Color | transparent |
| Colour of liner | white/blue logo |
| Thickness of liner | 135 µm |
| Type of adhesive | type: tackified acrylic |
| Type of liner | type: PE-coated paper |
| Weight of liner | 120 g/m² |

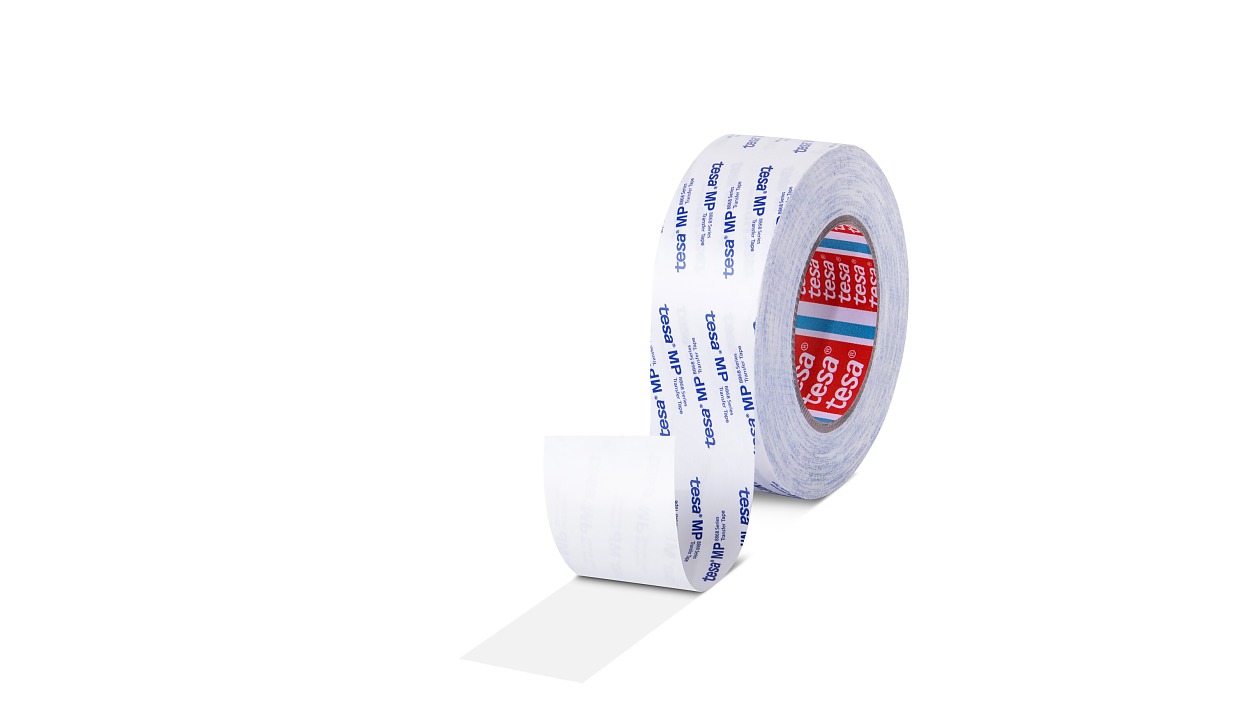

tesa® 88681
50μm double sided transfer tape
Product Features
- Excellent initial and ultimate adhesion to a wide variety substrates
- Good converting and die-cutting performance
- Highly conformable to uneven surfaces
Product description
tesa® 88681 is a transparent double-sided transfer tape with tackified acrylic adhesive. This tackified acrylic adhesive offers good adhesion to various substrates. This product provides ideal solution for multi-purpose mounting and extremely converting and die-cutting friendly.
Product details and specifications
Product Features
- Excellent initial and ultimate adhesion to a wide variety substrates
- Good converting and die-cutting performance
- Highly conformable to uneven surfaces
- Good temperature resistance
- High shear resistance
Application Fields
- Lamination of foams, fabrics, and textiles
- Name plate mounting
- Membrane switch mounting

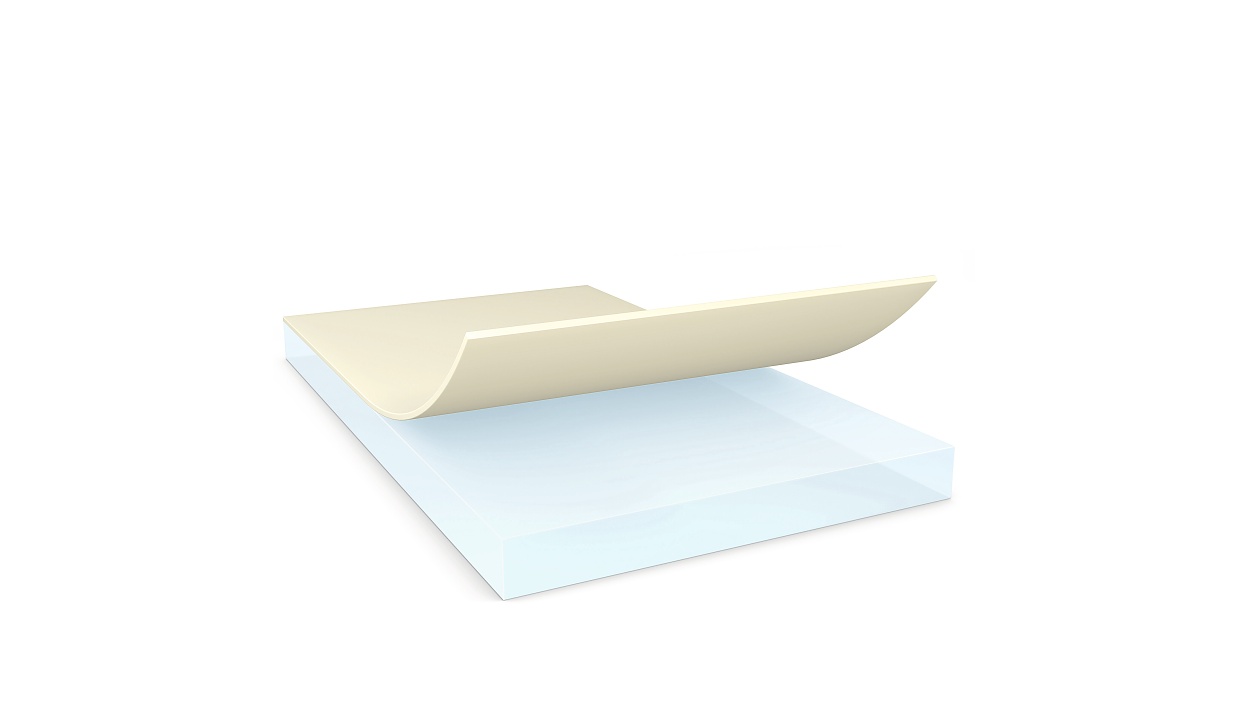

Product Construction
| Backing material | none |
| Color | transparent |
| Colour of liner | white/blue logo |
| Thickness of liner | 135 µm |
| Type of adhesive | type: tackified acrylic |
| Type of liner | type: PE-coated paper |
| Weight of liner | 120 g/m² |
Properties / Performance Values
| Temperature resistance long term | 100 °C |
| Temperature resistance short term | 200 °C |
| Static shear resistance at 23°C | good |
| Tack | good |
Properties / Performance Values
| Temperature resistance long term | 100 °C |
| Temperature resistance short term | 200 °C |
| Static shear resistance at 23°C | good |
| Tack | good |
Adhesion to Values
| Adhesion to ABS (initial) | 7.5 N/cm |
| Adhesion to ABS (after 3 days) | 8 N/cm |
| Adhesion to PC (initial) | 9 N/cm |
| Adhesion to PC (after 3 days) | 9.5 N/cm |
| Adhesion to PMMA (initial) | 9 N/cm |
| Adhesion to PMMA (after 3 days) | 9.5 N/cm |
| Adhesion to PP (initial) | 0.5 N/cm |
| Adhesion to PP (after 3 days) | 1 N/cm |
| Adhesion to PVC (initial) | 5.5 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 3 days) | 8 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 7.5 N/cm |
| Adhesion to ABS (after 3 days) | 8 N/cm |
| Adhesion to PC (initial) | 9 N/cm |
| Adhesion to PC (after 3 days) | 9.5 N/cm |
| Adhesion to PMMA (initial) | 9 N/cm |
| Adhesion to PMMA (after 3 days) | 9.5 N/cm |
| Adhesion to PP (initial) | 0.5 N/cm |
| Adhesion to PP (after 3 days) | 1 N/cm |
| Adhesion to PVC (initial) | 5.5 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 3 days) | 8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
