Product description

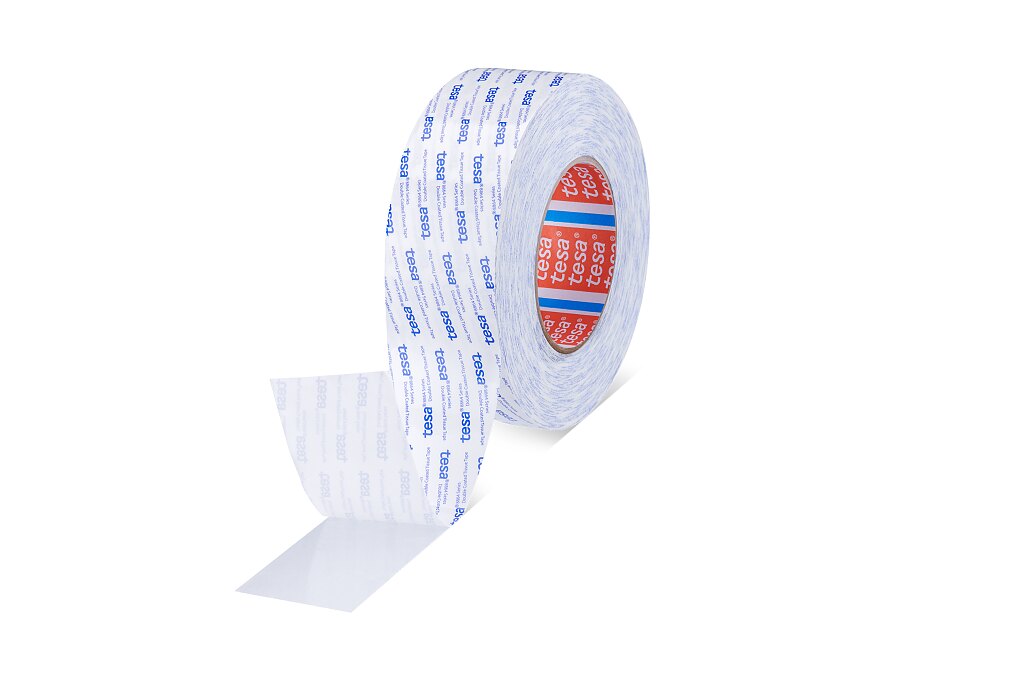

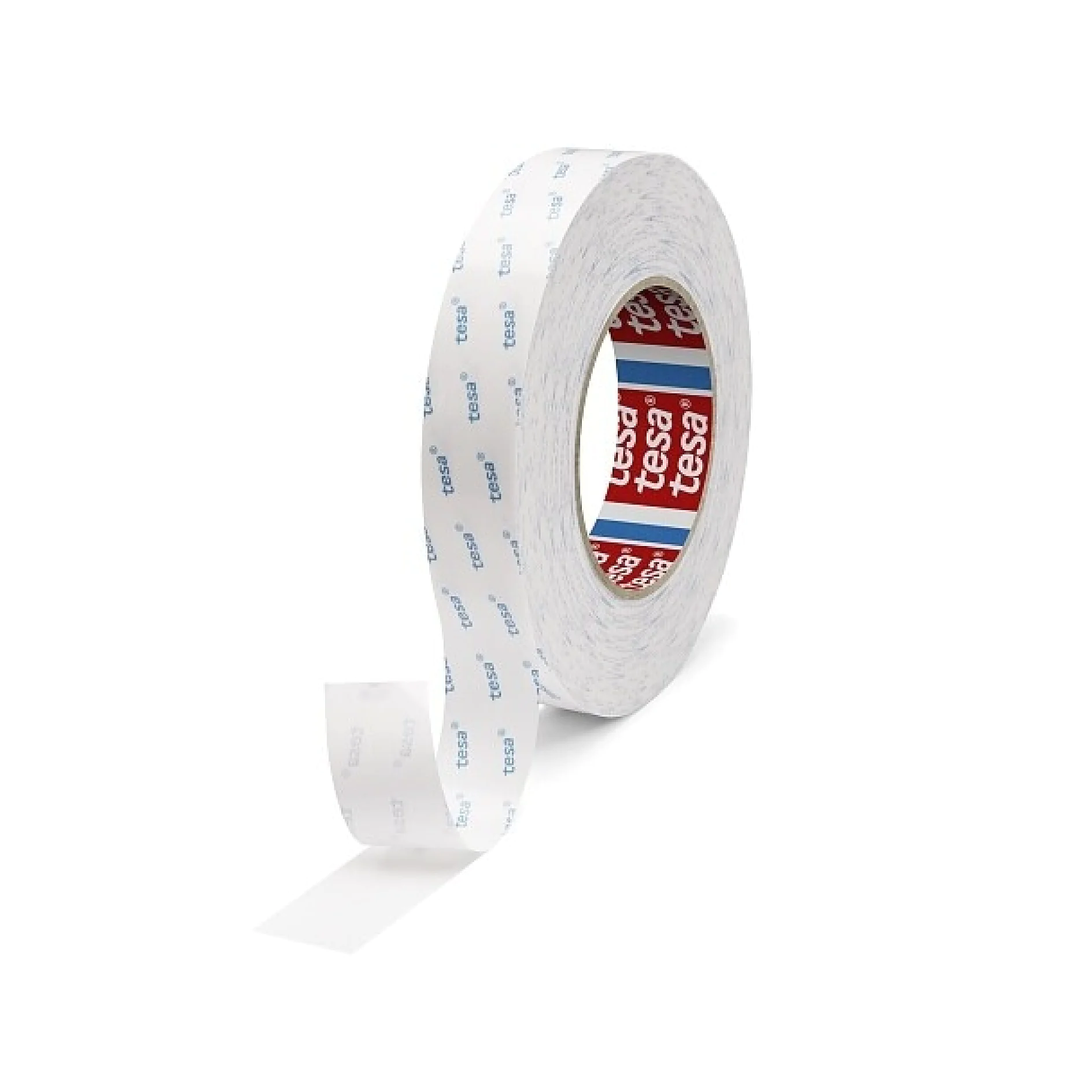

tesa® 88643 is a 140μm double coated tissue tape consisting of a tissue backing and a tackified acrylic adhesive.Features:
- Conformable
- Excellent adhesion to a variety of polar surfaces
- Easily removable liner
- Suitable for permanent applications
Main applications
- Name plate mounting
- Control panel mounting
- Foam lamination
- Textile lamination
00:00
Technical properties
Type of adhesive
tackified acrylic
Type of liner
PE-coated paper
Colour of liner
white/blue logo
Total thickness
140 µm
Backing material
non-woven
Color
translucent
Adhesion properties
Adhesion to Steel (initial)
9.6 N/cm
Adhesion to PE (initial)
4.4 N/cm
Adhesion to ABS (after 3 days)
13.2 N/cm
Adhesion to PP (after 3 days)
3.2 N/cm
Adhesion to ABS (initial)
11.2 N/cm
Adhesion to PC (initial)
10.5 N/cm
Adhesion to PVC (initial)
6.4 N/cm
Adhesion to Steel (after 3 days)
11.2 N/cm
Adhesion to PET (initial)
8.3 N/cm
Adhesion to Glass (after 3 days)
15 N/cm
Adhesion to Glass (initial)
12.7 N/cm
Adhesion to PE (after 3 days)
4.7 N/cm
Adhesion to PC (after 3 days)
12.2 N/cm
Adhesion to PP (initial)
3 N/cm
Rating properties
Static shear resistance at 23°C
++
Tack
+
Temperature resistance long term
70 °C
Additional Info
The Adhesion to Steel data is tested according to ASTM-3300tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
