Additional Info
Liner variants:
PV43 white / orange tesa logo PE-coated paper
PV44 white / non printed PE-coated paper
PV43 white / orange tesa logo PE-coated paper
PV44 white / non printed PE-coated paper
100µm double sided translucent non-woven tape

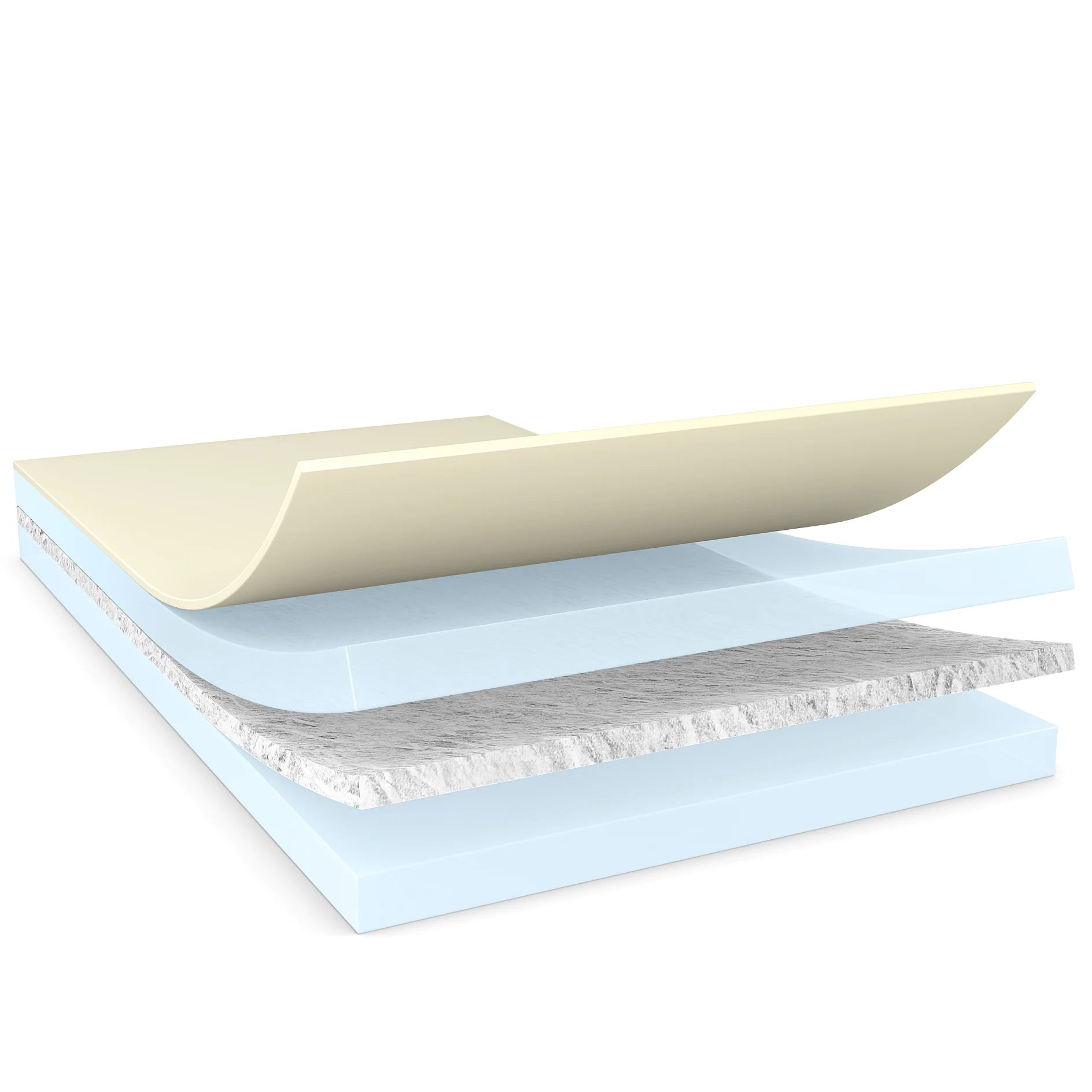

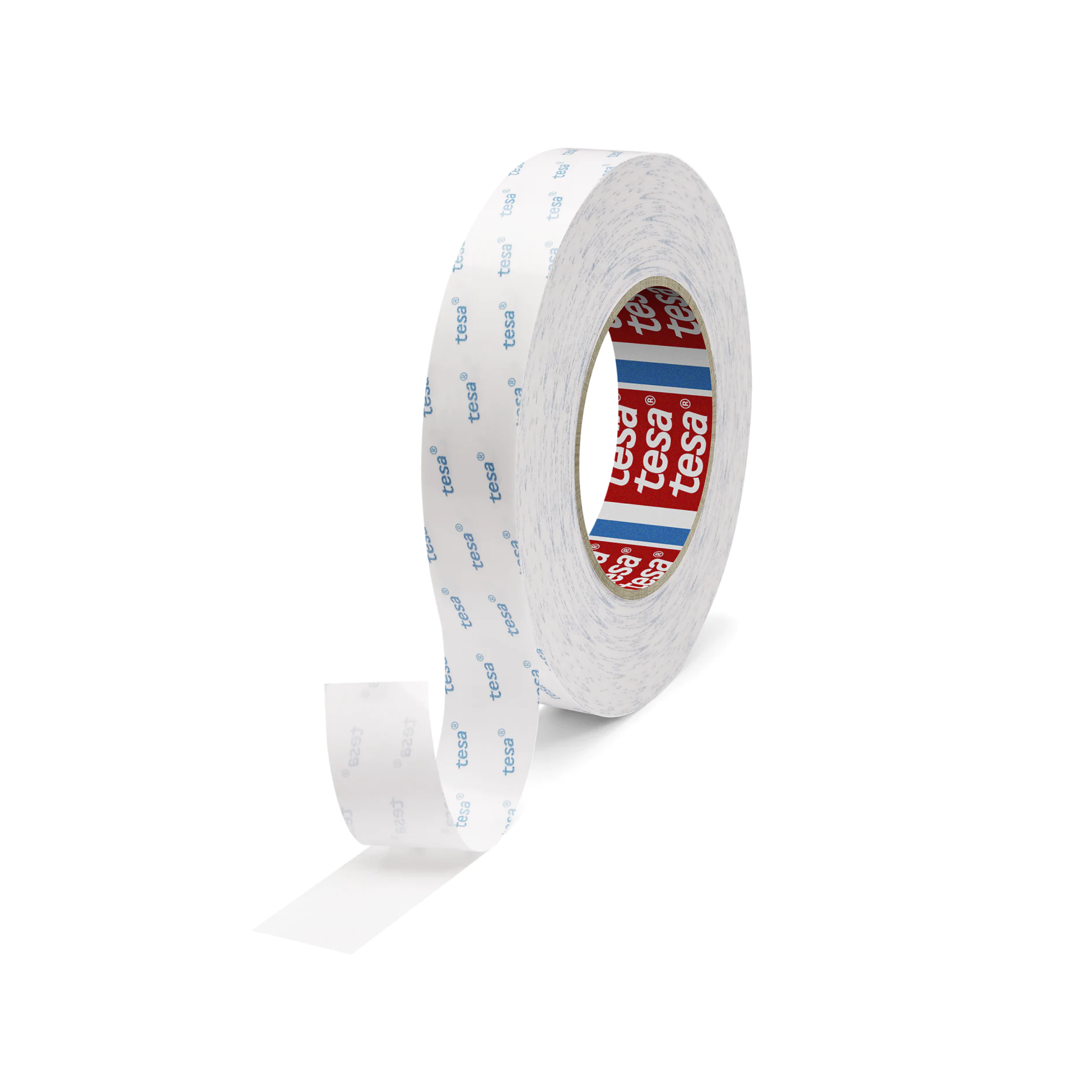

tesa® 68614 is a translucent, double-sided self-adhesive tape consisting of a non-woven backing and a tackified acrylic adhesive.
tesa® 68614 features especially:
| Backing material | non-woven |
|---|---|
| Color | translucent |
| Total thickness | 100 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PE-coated paper |
| Backing material | non-woven |
|---|---|
| Color | translucent |
| Total thickness | 100 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PE-coated paper |
| Chemical resistance | medium |
|---|---|
| Fogging | good |
| Temperature resistance short term | 150 °C |
| Static shear resistance at 70°C | good |
| Static shear resistance at 23°C | very good |
| Temperature resistance long term | 70 °C |
| Tack | good |
| Humidity resistance | good |
| Ageing resistance (UV) | good |
| Chemical resistance | medium |
|---|---|
| Fogging | good |
| Temperature resistance short term | 150 °C |
| Static shear resistance at 70°C | good |
| Static shear resistance at 23°C | very good |
| Temperature resistance long term | 70 °C |
| Tack | good |
| Humidity resistance | good |
| Ageing resistance (UV) | good |
| Adhesion to ABS (initial) | 7.5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 9.3 N/cm |
| Adhesion to PC (initial) | 7.7 N/cm |
| Adhesion to PC (after 14 days) | 7.1 N/cm |
| Adhesion to PE (initial) | 4.4 N/cm |
| Adhesion to PE (after 14 days) | 5.6 N/cm |
| Adhesion to PET (initial) | 7.5 N/cm |
| Adhesion to PET (after 14 days) | 7.7 N/cm |
| Adhesion to PP (initial) | 5.9 N/cm |
| Adhesion to PP (after 14 days) | 7.3 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to PVC (after 14 days) | 9 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 14 days) | 10 N/cm |
| Adhesion to ABS (initial) | 7.5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 9.3 N/cm |
| Adhesion to PC (initial) | 7.7 N/cm |
| Adhesion to PC (after 14 days) | 7.1 N/cm |
| Adhesion to PE (initial) | 4.4 N/cm |
| Adhesion to PE (after 14 days) | 5.6 N/cm |
| Adhesion to PET (initial) | 7.5 N/cm |
| Adhesion to PET (after 14 days) | 7.7 N/cm |
| Adhesion to PP (initial) | 5.9 N/cm |
| Adhesion to PP (after 14 days) | 7.3 N/cm |
| Adhesion to PVC (initial) | 6 N/cm |
| Adhesion to PVC (after 14 days) | 9 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 14 days) | 10 N/cm |
Download the files below for more technical details and information on this product.
