tesa® 76125
250µm double sided black quick bonding and residue free removable tape
Product description
tesa® 76125 is a double-sided reinforced black mounting tape with a special quick bonding and easy removable adhesive.
Special features:
- Thickness: 250μm
- High tack and quick bonding even on LSE substrates
- Temperature sensitive removing with very fast and residue free removability especially at elevated temperatures
- Outstanding shock resistance
- Good anti-repulsion properties to prevent lifting
- Light blocking
- Waterproofing (IPX8)
Product details and specifications
Application Fields
- Backcover bonding for mobile devices
- Display bottom mounting for OLED displays
- Demanding mounting applications for components in electronic devices

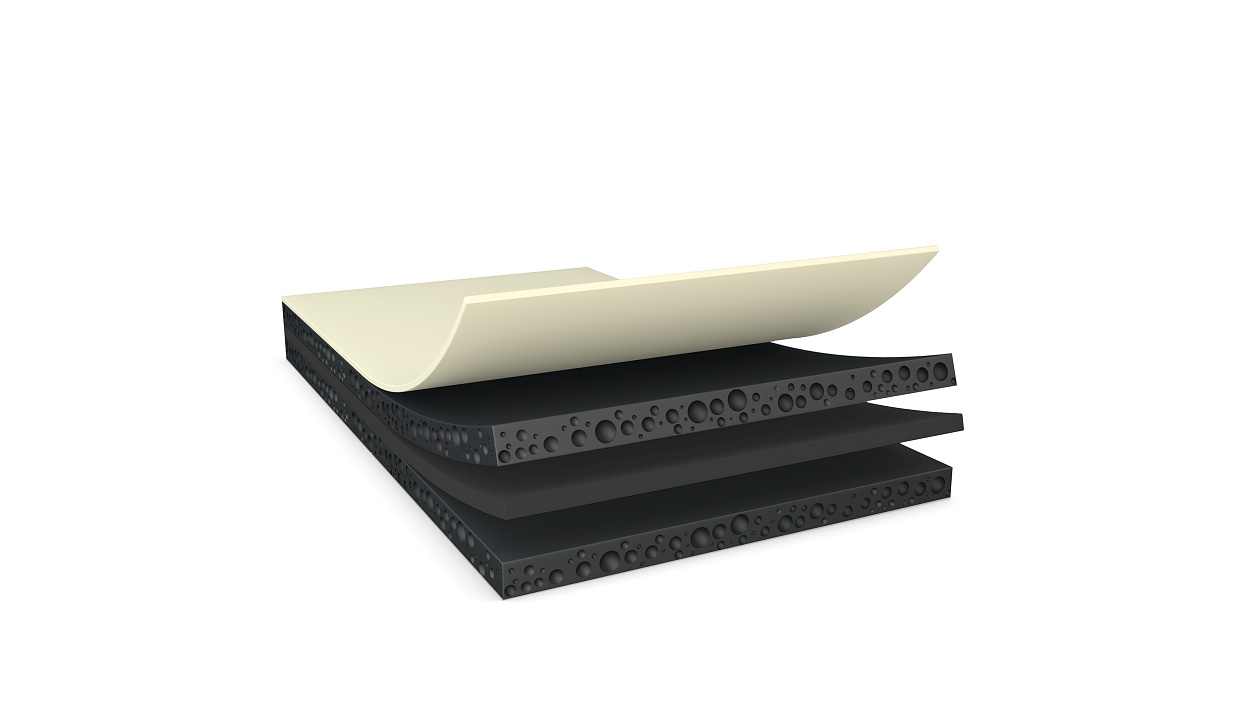

Product Construction
| Backing material | PETP |
|---|---|
| Color | black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 250 µm |
| Type of adhesive | specialty |
| Type of liner | PET |
Product Construction
| Backing material | PETP |
|---|---|
| Color | black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 250 µm |
| Type of adhesive | specialty |
| Type of liner | PET |
Properties / Performance Values
| Elongation at break | 100 % |
|---|---|
| Temperature resistance short term | 90 °C |
| Static shear resistance at 40°C | very good |
| Temperature resistance long term | 60 °C |
Properties / Performance Values
| Elongation at break | 100 % |
|---|---|
| Temperature resistance short term | 90 °C |
| Static shear resistance at 40°C | very good |
| Temperature resistance long term | 60 °C |
Adhesion to Values
| Adhesion to Aluminium (initial) | 10 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 10 N/cm |
| Adhesion to Glass (initial) | 11 N/cm |
| Adhesion to Glass (after 14 days) | 11 N/cm |
| Adhesion to PC (initial) | 10 N/cm |
| Adhesion to PC (after 14 days) | 10 N/cm |
| Adhesion to PE (initial) | 10 N/cm |
| Adhesion to PE (after 14 days) | 10 N/cm |
| Adhesion to Steel (initial) | 11 N/cm |
| Adhesion to Steel (after 14 days) | 11 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 10 N/cm |
|---|---|
| Adhesion to Aluminium (after 14 days) | 10 N/cm |
| Adhesion to Glass (initial) | 11 N/cm |
| Adhesion to Glass (after 14 days) | 11 N/cm |
| Adhesion to PC (initial) | 10 N/cm |
| Adhesion to PC (after 14 days) | 10 N/cm |
| Adhesion to PE (initial) | 10 N/cm |
| Adhesion to PE (after 14 days) | 10 N/cm |
| Adhesion to Steel (initial) | 11 N/cm |
| Adhesion to Steel (after 14 days) | 11 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
