tesa® 61370
125µm double sided transparent high performance filmic tape
Product description
tesa® 61370 is a double sided self-adhesive tape consisting of a transparent PET backing and a tackified acrylic adhesive.
Special features:
- Thickness: 125µm
- Very high bonding strength
- Superior push out resistance
- High shock resistance
- Excellent resistance to demanding environmental conditions
Product details and specifications
Application Fields
- Lens mounting in mobile phones
- Touch panel mounting

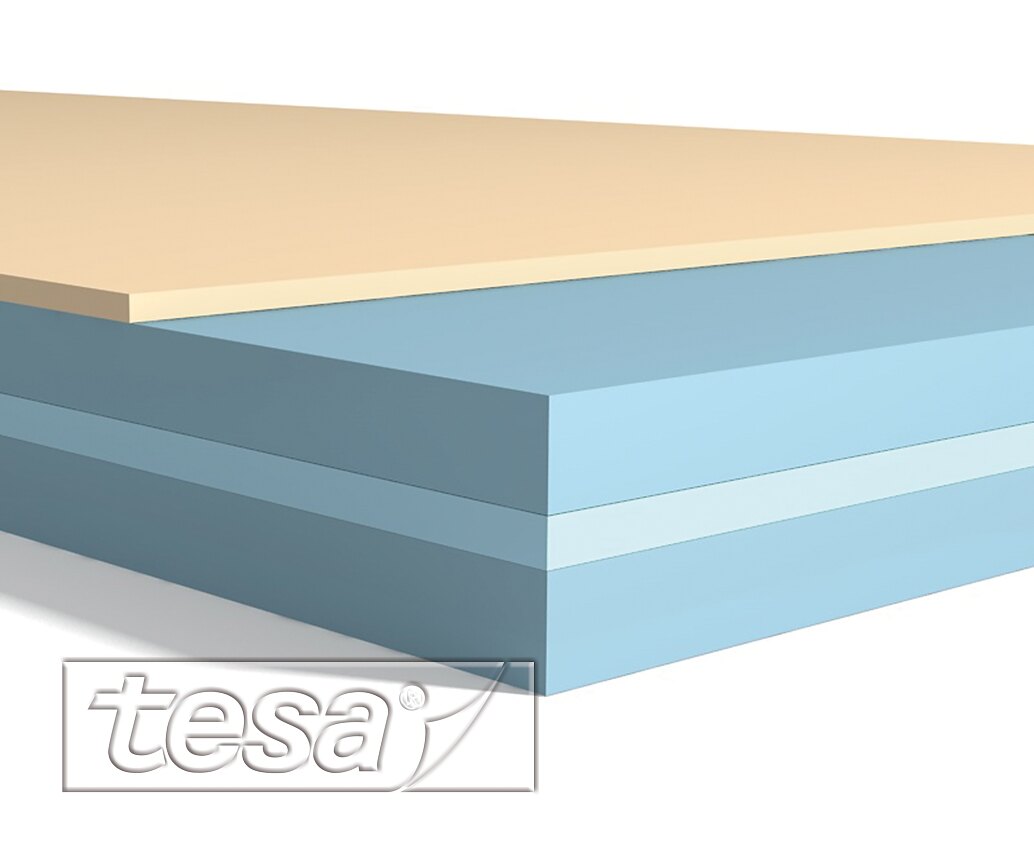

Product Construction
Backing material | PET film |
---|---|
Color | transparent |
Colour of liner | white with tesa logo |
Thickness of liner | 69 µm |
Total thickness | 125 µm |
Type of adhesive | tackified acrylic |
Type of liner | glassine |
Weight of liner | 80 g/m² |
Product Construction
Backing material | PET film |
---|---|
Color | transparent |
Colour of liner | white with tesa logo |
Thickness of liner | 69 µm |
Total thickness | 125 µm |
Type of adhesive | tackified acrylic |
Type of liner | glassine |
Weight of liner | 80 g/m² |
Properties / Performance Values
Elongation at break | 50 % |
---|---|
Tensile strength | 20 N/cm |
Temperature resistance long term | 100 °C |
Static shear resistance at 23°C | good |
Static shear resistance at 40°C | good |
Ageing resistance (UV) | very good |
Humidity resistance | very good |
Temperature resistance short term | 200 °C |
Properties / Performance Values
Elongation at break | 50 % |
---|---|
Tensile strength | 20 N/cm |
Temperature resistance long term | 100 °C |
Static shear resistance at 23°C | good |
Static shear resistance at 40°C | good |
Ageing resistance (UV) | very good |
Humidity resistance | very good |
Temperature resistance short term | 200 °C |
Adhesion to Values
Adhesion to ABS (initial) | 8.7 N/cm |
---|---|
Adhesion to ABS (after 14 days) | 12.8 N/cm |
Adhesion to ABS (covered side, after 14 days) | 13.7 N/cm |
Adhesion to ABS (covered side, initial) | 9.5 N/cm |
Adhesion to Glass (initial) | 12.8 N/cm |
Adhesion to Glass (after 14 days) | 15.2 N/cm |
Adhesion to PC (initial) | 11.2 N/cm |
Adhesion to PC (after 14 days) | 17.9 N/cm |
Adhesion to PC (covered side, after 14 days) | 18.5 N/cm |
Adhesion to PC (covered side, initial) | 11.5 N/cm |
Adhesion to PMMA (initial) | 13 N/cm |
Adhesion to PMMA (after 14 days) | 16.8 N/cm |
Adhesion to Steel (initial) | 13.9 N/cm |
Adhesion to Steel (after 14 days) | 16.7 N/cm |
Adhesion to Steel (covered side, after 14 days) | 17.6 N/cm |
Adhesion to Steel (covered side, initial) | 14.4 N/cm |
Adhesion to Values
Adhesion to ABS (initial) | 8.7 N/cm |
---|---|
Adhesion to ABS (after 14 days) | 12.8 N/cm |
Adhesion to ABS (covered side, after 14 days) | 13.7 N/cm |
Adhesion to ABS (covered side, initial) | 9.5 N/cm |
Adhesion to Glass (initial) | 12.8 N/cm |
Adhesion to Glass (after 14 days) | 15.2 N/cm |
Adhesion to PC (initial) | 11.2 N/cm |
Adhesion to PC (after 14 days) | 17.9 N/cm |
Adhesion to PC (covered side, after 14 days) | 18.5 N/cm |
Adhesion to PC (covered side, initial) | 11.5 N/cm |
Adhesion to PMMA (initial) | 13 N/cm |
Adhesion to PMMA (after 14 days) | 16.8 N/cm |
Adhesion to Steel (initial) | 13.9 N/cm |
Adhesion to Steel (after 14 days) | 16.7 N/cm |
Adhesion to Steel (covered side, after 14 days) | 17.6 N/cm |
Adhesion to Steel (covered side, initial) | 14.4 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
