tesa® 75710
100µm double-sided black reinforced acrylic foam tape
Product description
tesa® 75710 is a double-sided black tape with a PET backing. The tape is equipped with a novel foamed shock absorbing and anti-repulsion adhesive.
tesa® 75710 features:
- Thickness: 100µm
- High shock performance
- High thermal shock resistance
- High bonding strength
- Anti-repulsion properties to prevent lifting
- Very good reworkability and die-cut ability
- Waterproofing
Product details and specifications

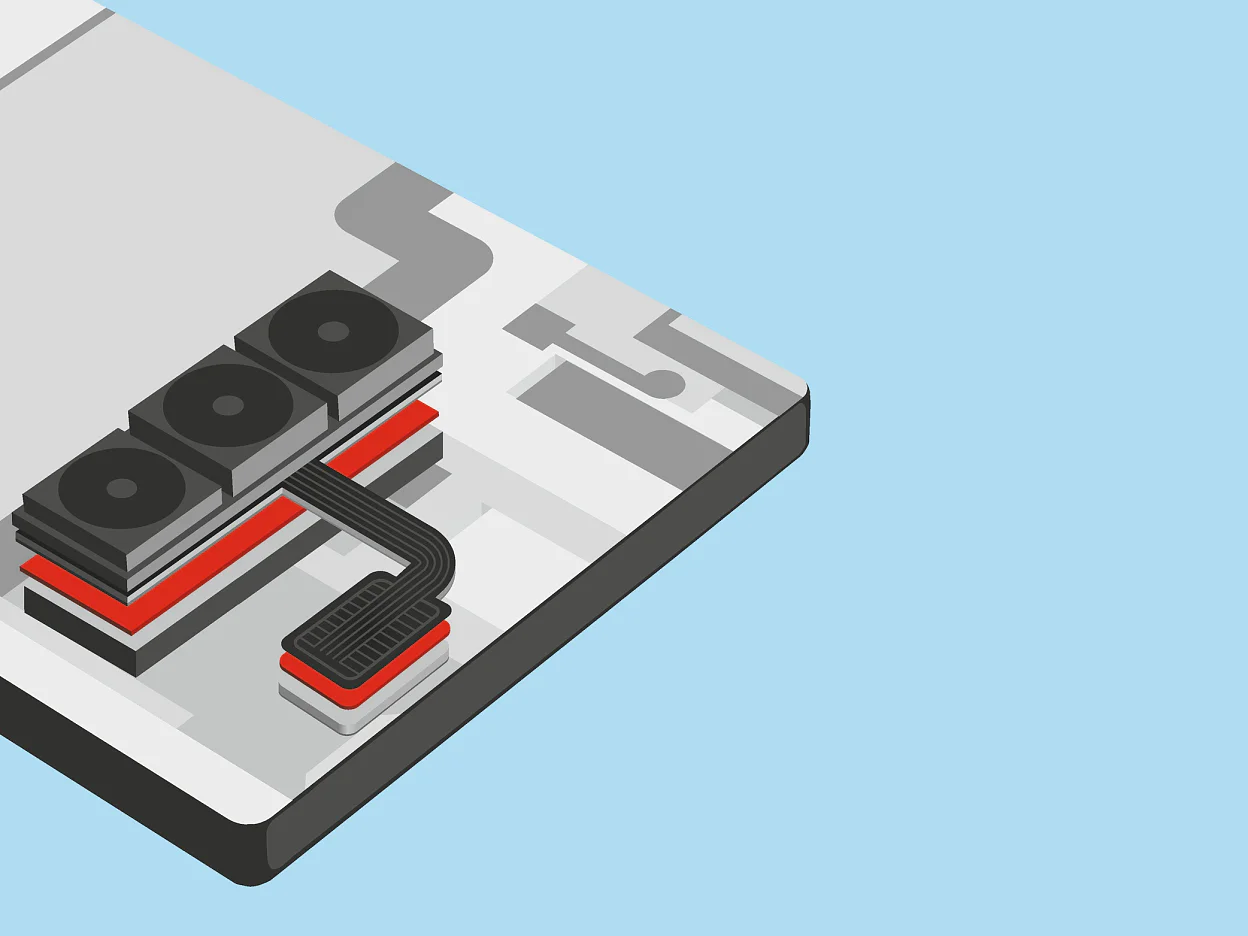

Application Fields
- Demanding mounting applications with high requirements for impact resistance
- Mounting of waterproof designs
- Mounting of components

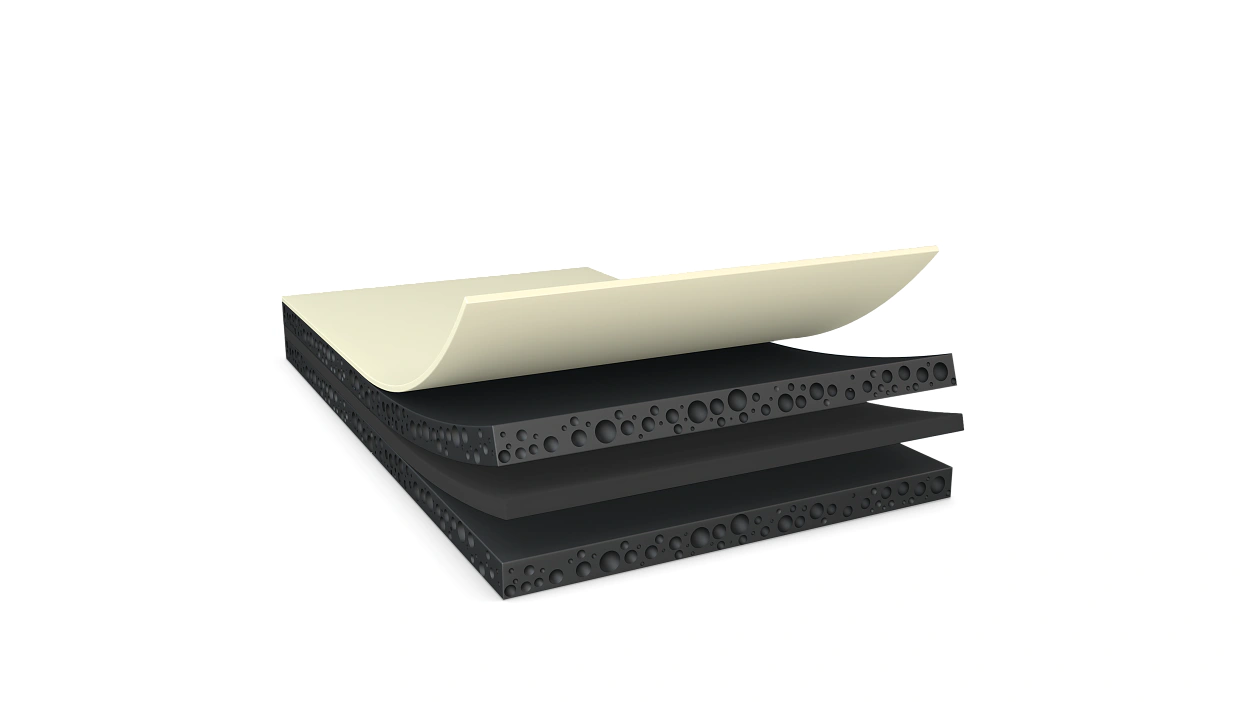

Product Construction
| Backing material | PETP |
|---|---|
| Color | black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 100 µm |
| Type of adhesive | modified acrylic |
| Type of liner | PET |
| Weight of liner | 72 g/m² |
Product Construction
| Backing material | PETP |
|---|---|
| Color | black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 100 µm |
| Type of adhesive | modified acrylic |
| Type of liner | PET |
| Weight of liner | 72 g/m² |
Properties / Performance Values
| Elongation at break | 100 % |
|---|---|
| Temperature resistance long term | 80 °C |
| Static shear resistance at 23°C | good |
| Temperature resistance short term | 130 °C |
| Static shear resistance at 40°C | good |
| Ageing resistance (UV) | very good |
Properties / Performance Values
| Elongation at break | 100 % |
|---|---|
| Temperature resistance long term | 80 °C |
| Static shear resistance at 23°C | good |
| Temperature resistance short term | 130 °C |
| Static shear resistance at 40°C | good |
| Ageing resistance (UV) | very good |
Adhesion to Values
| Adhesion to Glass (initial) | 7.5 N/cm |
|---|---|
| Adhesion to Glass (after 3 days) | 9.5 N/cm |
| Adhesion to PC (initial) | 8 N/cm |
| Adhesion to PC (after 3 days) | 9 N/cm |
| Adhesion to PE (initial) | 5 N/cm |
| Adhesion to PE (after 3 days) | 6 N/cm |
| Adhesion to Steel (initial) | 10 N/cm |
| Adhesion to Steel (after 3 days) | 11 N/cm |
Adhesion to Values
| Adhesion to Glass (initial) | 7.5 N/cm |
|---|---|
| Adhesion to Glass (after 3 days) | 9.5 N/cm |
| Adhesion to PC (initial) | 8 N/cm |
| Adhesion to PC (after 3 days) | 9 N/cm |
| Adhesion to PE (initial) | 5 N/cm |
| Adhesion to PE (after 3 days) | 6 N/cm |
| Adhesion to Steel (initial) | 10 N/cm |
| Adhesion to Steel (after 3 days) | 11 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
