Product information

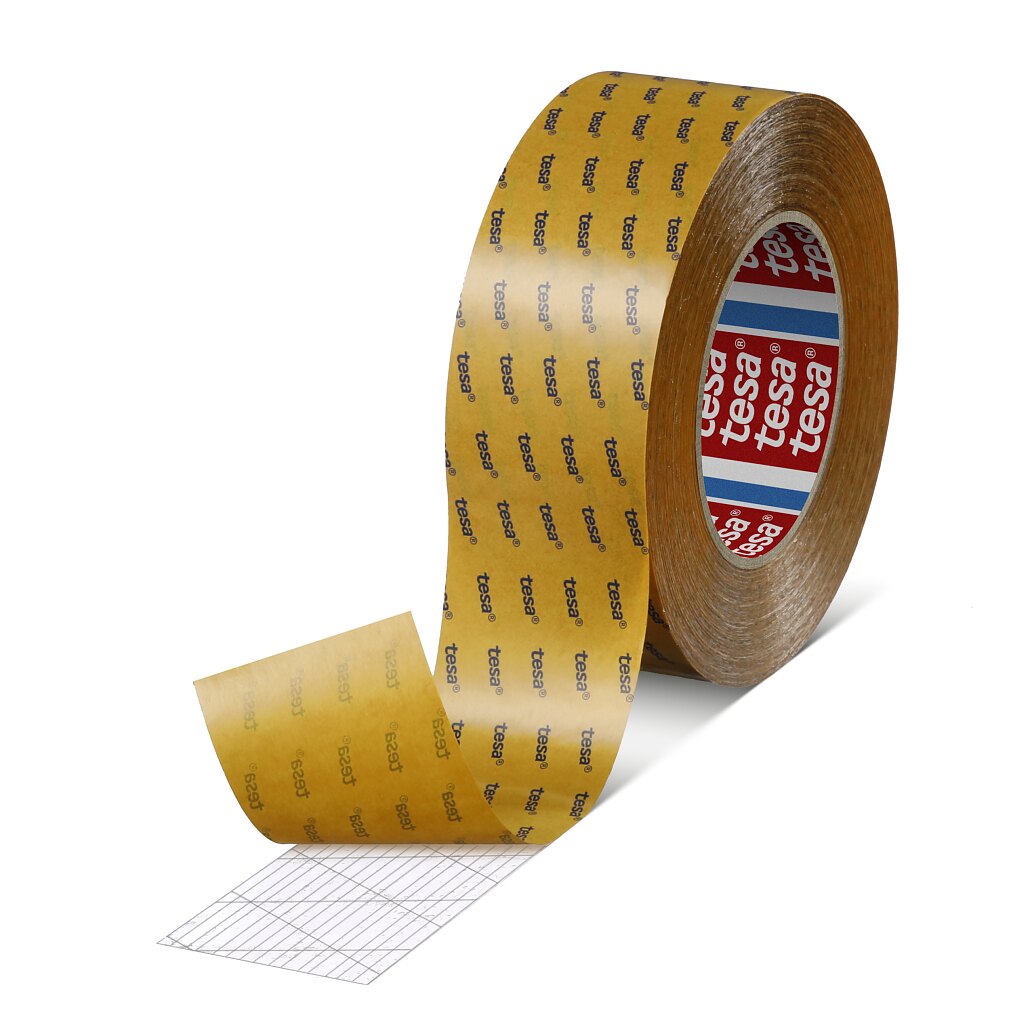

tesa® 75013 low VOC

130µm reinforced tackified acrylic adhesive layer with PET scrim for mounting in automotive interiors



Product description

tesa® 75013 is a conformable transparent adhesive layer of tackified acrylic reinforced with a PET scrim mesh.

Features:
1 low VOC - no critical substances detectable
1 high initial tack and peel adhesion
1 high conformable design following 3D shapes
1 provides excellent conformability and stability
1 provides excellent initial adhesion to a wide variety of interior substrates
1 suitable for the bonding to nonpolar plastics, foams, felts and fabrics
1 the scrim provides a reinforcement of flexible substrates for improving converting efficiency and handling

Main applications

mounting of plastics as well LSE plastics
1 with difficult wet-out
1 permanent low load

Lamination or mounting of critical, soft, light and smooth surfaces / sheets
1 immediate and secure bending around the edge
tesa-75013-low-voc-transparent-750130000020-pr

tesa-75013-low-voc-transparent-750130000020-pr

Technical properties

Thickness of tape

130 µm

Type of adhesive

tackified acrylic

Temperature resistance up to

180 °C

Type of liner

glassine

Colour of liner

brown/blue logo

Temperature resistance from

-40 °C

Total thickness

130 µm

Backing material

none

Color

transparent

Adhesion properties

Adhesion to Steel (initial)

10.7 N/cm

Adhesion to PE (initial)

6.5 N/cm

Adhesion to ABS (after 3 days)

11 N/cm

Adhesion to PP (after 3 days)

7 N/cm

Adhesion to ABS (initial)

11 N/cm

Adhesion to PC (initial)

13.9 N/cm

Adhesion to PVC (initial)

6.4 N/cm

Adhesion to PS (initial)

11.3 N/cm

Adhesion to Steel (after 3 days)

10.4 N/cm

Adhesion to PET (initial)

7.5 N/cm

Adhesion to PET (after 3 days)

8.2 N/cm

Adhesion to PS (after 3 days)

11.7 N/cm

Adhesion to PVC (after 3 days)

13.3 N/cm

Adhesion to PE (after 3 days)

6.9 N/cm

Adhesion to PC (after 3 days)

15.1 N/cm

Adhesion to PP (initial)

6 N/cm

Rating properties

Conformability

++

Tack

++

Suitable for die cutting

Yes

Storage conditions

23°C, 50% RH, stored in original box

Fogging

+

Low VOC

++

Suitable for rough surfaces

++

Additional Info

Is designed to fulfill the low VOC (Volatile Organic Compounds) automotive requirements set forth by the Japanese Ministry of Health, Labor and Welfare (MHLW) and the Japanese Automobile Manufacturers Association (JAMA) limit of concentrations of 13 toxic chemistries. Acc. Toyota TSK0508G our assortment is conform Japanese automotive requirements


Adhesion vaules to:
PVC
PP
ABS
PC
PET
PS
PE
Are not part of the product specification



PV20 brown glassine liner / blue tesa logo
other liner version possible - on request

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
