Product Construction
| Backing material | Acrylic |
| Type of adhesive | type: acrylic |
| Type of liner | type: coated paper |
| Weight of liner | 120 g/m² |

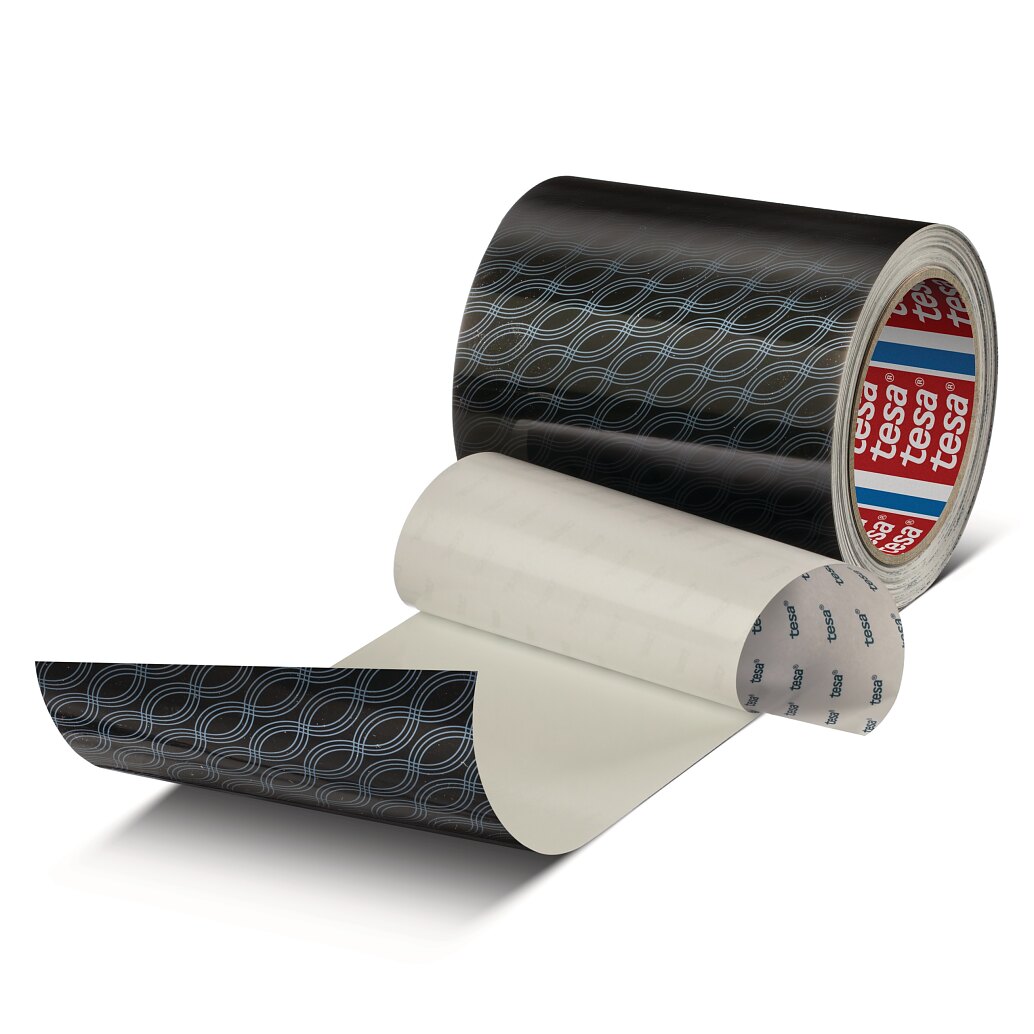

tesa® 6957 Laser-Label
High heat resistant, high-speed markable and fraud resistant tape
Product description
tesa® 6957 is a double layer, brittle acrylic film with watermark. Customized and fraud-resistant information, such as company logo, is permanently embedded in the backing. Marking and cutting are achieved by laser in one step, which makes it possible to realize any desirable label variation and format using only one material. The backing is highly resistant against chemicals, abrasion, temperature and aging.
The adhesive system consists of a resin modified acrylic suitable even for low energy surfaces. The adhesive will leave an UV-detectable trace (“UV-Footprint”) on most surfaces as required by GB 25978 (P.R.C.) and NHTSA §541.5 (USA).
The use of a high-speed laser enables a considerably quick marking up to 4000mm/ sec.
Product details and specifications
Application Fields
This high performance product is used as a tamper evident identification label over the entire lifetime of a product and also as a data carrier system for intelligent in-process steering.
The product is specially designed to fulfill the requirements of GB 25978 (P.R.C.) for F-Type labels (engine & transmission).
The product is specially designed to fulfill the requirements of GB 25978 (P.R.C.) for F-Type labels (engine & transmission).
- Customized Watermark embossed in the backing
- High contrast and excellent marking precision
- Very resistant to heat, abrasion and chemicals
- Tamper Evident: Manipulation leaves visible trace
- Not removeable without destruction of the label
- Flexible formatting and label design: marking and cutting by the laser
- Efficient: Replaces a multitude of pre-made labels
- Just-in-time production reduces storage needs
Product Construction
| Backing material | Acrylic |
| Type of adhesive | type: acrylic |
| Type of liner | type: coated paper |
| Weight of liner | 120 g/m² |
Properties / Performance Values
| Temperature resistance short term | 250 °C |
| Chemical resistance | very good |
| Tamper evidence | yes |
| Humidity resistance | very good |
| Temperature resistance long term | 150 °C |
| Peel off force from liner | 0,5-10 |
| Frost resistance | -40 °C |
| Ageing resistance (UV) | very good |
| Suitable laser | , Nd:YAG, Yb:YAG |
Properties / Performance Values
| Temperature resistance short term | 250 °C |
| Chemical resistance | very good |
| Tamper evidence | yes |
| Humidity resistance | very good |
| Temperature resistance long term | 150 °C |
| Peel off force from liner | 0,5-10 |
| Frost resistance | -40 °C |
| Ageing resistance (UV) | very good |
| Suitable laser | , Nd:YAG, Yb:YAG |
Additional Info
- Dimensions: Customer specific
- Standard Width: 100mm or 120mm
- Standard Length: 200m or 300m
Assortment and Technical Data:
6957 PV3 black/ white glossy: Adhesive 25g/m², Thickness 95µm without Liner. Color code: 04
6957 PV3 black/ white matt: Adhesive 25g/m², Thickness 95µm without Liner. Color code: 28
6957 PV1 black/ white glossy: Adhesive 35g/m², Thickness 127µm without Liner. Color code: 04
6957 PV1 black/ white matt: Adhesive 35g/m², Thickness 127µm without Liner. Color code: 28
To fulfill our customers’ requirements for different applications and substrates the tesa® 6957 series is available in different product variants. Our aim is to fully understand your application in order to provide the right product recommendation. Our technical support is available upon request.
Optional: UV-Footprint adhesive (MU49):
tesa® 6957 MU49 is equipped with a special acrylic adhesive system, which leaves an UV-detectable trace (“UV-Footprint”). This special variant is available upon request.
Optional: LSE adhesive with UV-Footprint (MU56):
tesa® 6957 MU56 is equipped with a special acrylic adhesive system improved for rough and low surface energy (LSE) surfaces, which leaves an UV-detectable trace (“UV-Footprint”). This special variant is available upon request.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
