Liner variants:
PV20: brown/blue logo glassine paper (71μm; 82g/m²)
PV20: brown/blue logo glassine paper (71μm; 82g/m²)
50µm double sided white filmic tape

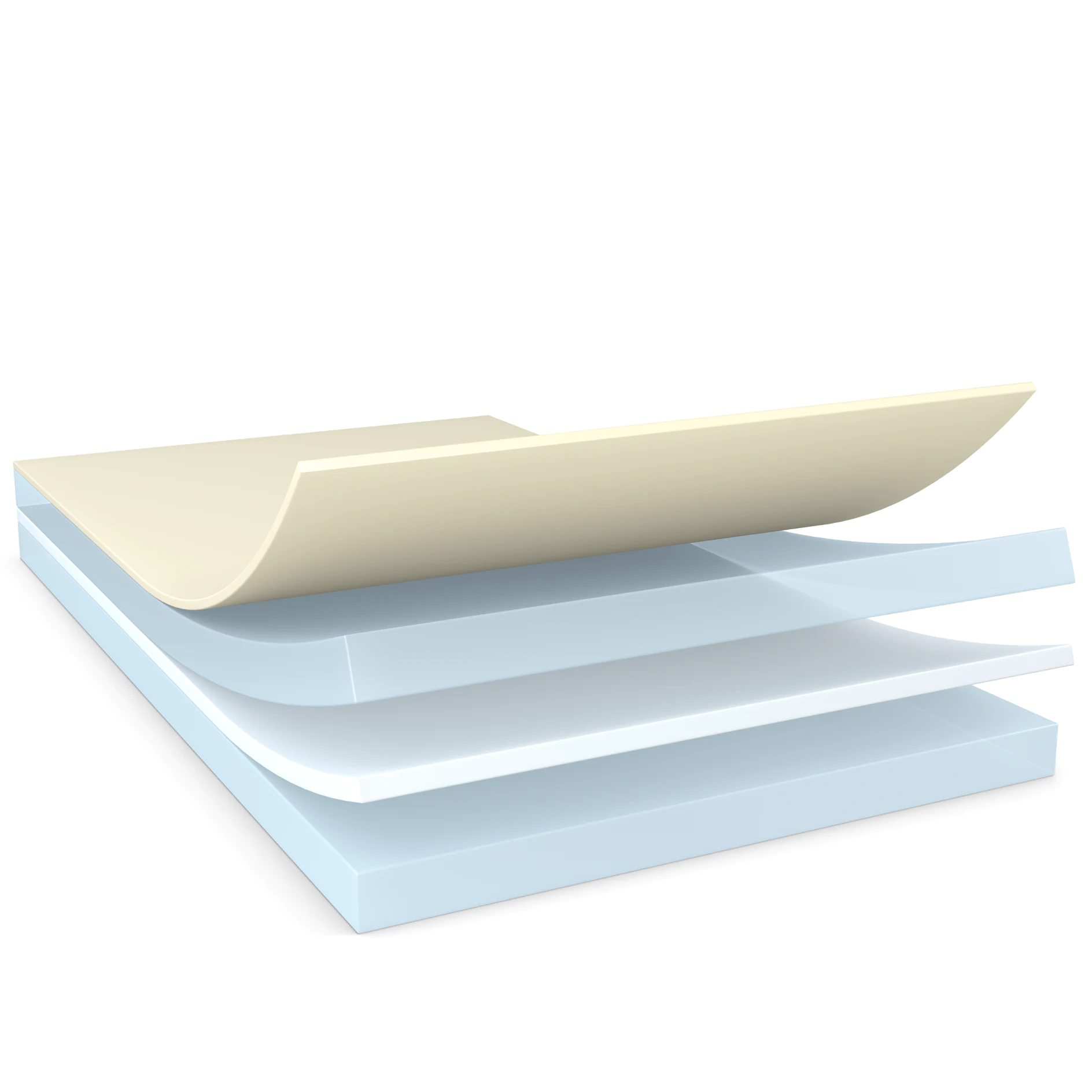

tesa® 68942 is a white, double-sided self-adhesive tape consisting of a white PET backing and a tackified acrylic adhesive.
tesa® 68942 features esp.
| Backing material | PET film |
|---|---|
| Color | white |
| Total thickness | 50 µm |
| Type of adhesive | tackified acrylic |
| Backing material | PET film |
|---|---|
| Color | white |
| Total thickness | 50 µm |
| Type of adhesive | tackified acrylic |
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 20 N/cm |
| Tack | good |
| Humidity resistance | very good |
| Static shear resistance at 23°C | medium |
| Softener resistance | very good |
| Temperature resistance short term | 200 °C |
| Temperature resistance long term | 100 °C |
| Ageing resistance (UV) | very good |
| Elongation at break | 50 % |
|---|---|
| Tensile strength | 20 N/cm |
| Tack | good |
| Humidity resistance | very good |
| Static shear resistance at 23°C | medium |
| Softener resistance | very good |
| Temperature resistance short term | 200 °C |
| Temperature resistance long term | 100 °C |
| Ageing resistance (UV) | very good |
| Adhesion to ABS (initial) | 5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 6.1 N/cm |
| Adhesion to Aluminium (initial) | 5 N/cm |
| Adhesion to Aluminium (after 14 days) | 6 N/cm |
| Adhesion to PC (initial) | 5.3 N/cm |
| Adhesion to PC (after 14 days) | 6.4 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
| Adhesion to Steel (after 14 days) | 7.3 N/cm |
| Adhesion to ABS (initial) | 5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 6.1 N/cm |
| Adhesion to Aluminium (initial) | 5 N/cm |
| Adhesion to Aluminium (after 14 days) | 6 N/cm |
| Adhesion to PC (initial) | 5.3 N/cm |
| Adhesion to PC (after 14 days) | 6.4 N/cm |
| Adhesion to Steel (initial) | 5.5 N/cm |
| Adhesion to Steel (after 14 days) | 7.3 N/cm |
