Additional Info
Liner variants:
PV40 white/red logo glassine paper (71μm; 82g/m²)
PV40 white/red logo glassine paper (71μm; 82g/m²)
tesa® 68910
100µm double sided transparent anti-repulsion filmic tape
Product description

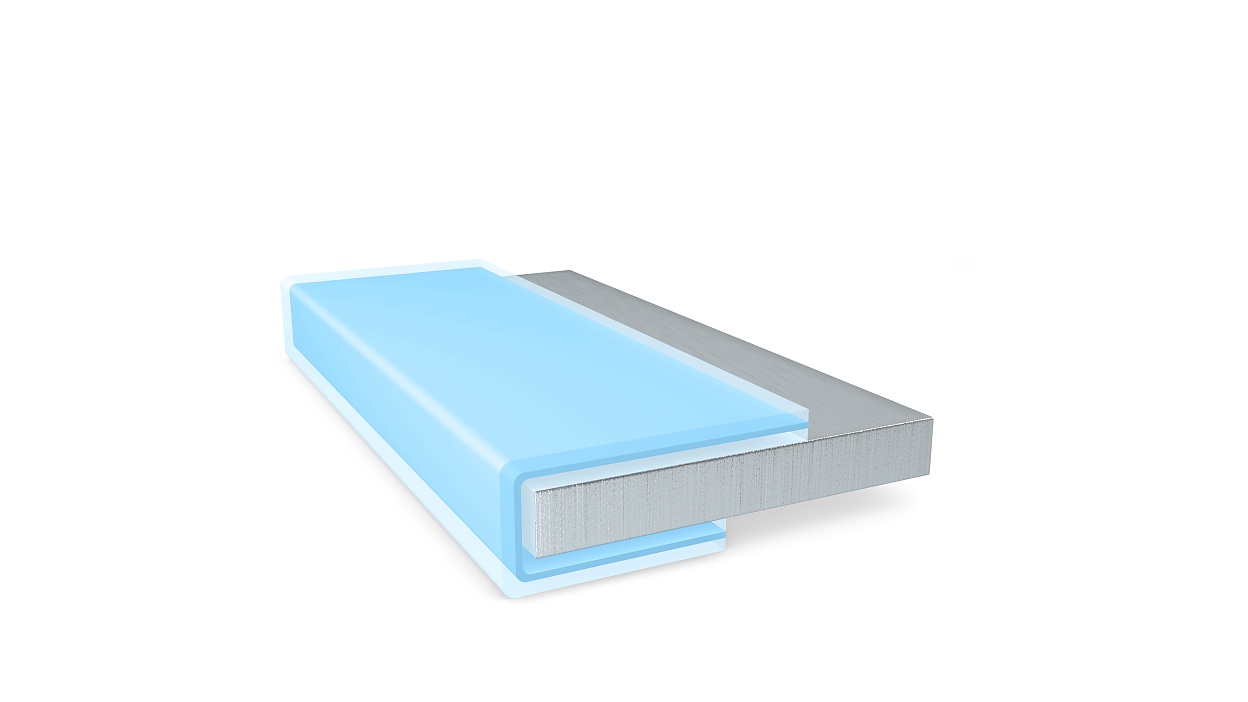

tesa® 68910 is a double-sided self-adhesive tape consisting of a transparent PET backing and a special anti-repulsion adhesive.
tesa® 68910 features:
- Thickness: 100µm
- Excellent repulsion resistance properties
- High bonding strength and shear resistance
- Very good handling performance in converting processes
- Excellent resistance to demanding environmental conditions
Product details and specifications
Application Fields
- Bonding on curved surfaces
- Mounting of bent substrates

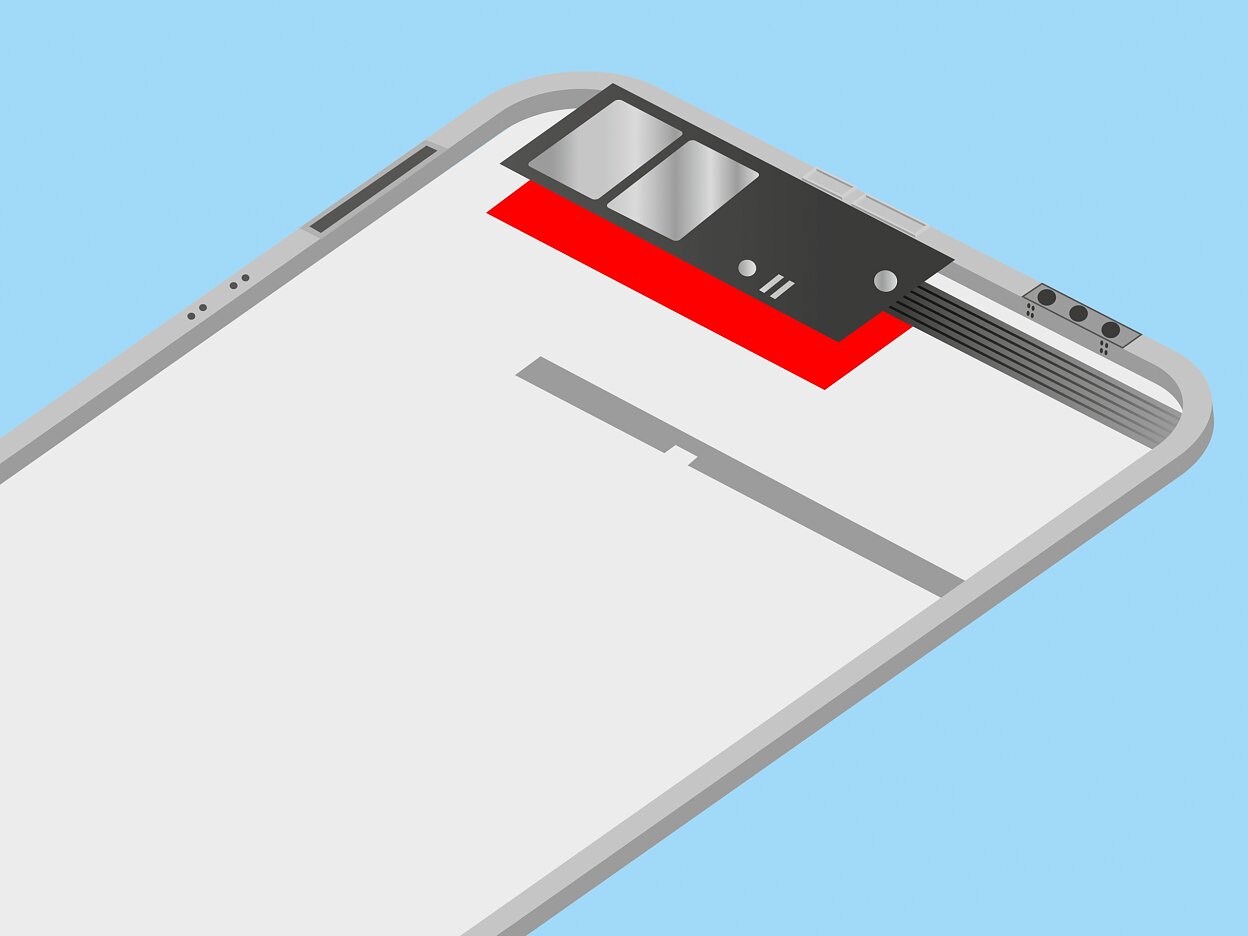

- Antenna/FPC mounting
Product Construction
| Backing material | PET film |
|---|---|
| Color | transparent |
| Total thickness | 100 µm |
| Type of adhesive | tackified acrylic |
Product Construction
| Backing material | PET film |
|---|---|
| Color | transparent |
| Total thickness | 100 µm |
| Type of adhesive | tackified acrylic |
Properties / Performance Values
| Static shear resistance at 70°C | very good |
|---|---|
| Temperature resistance short term | 140 °C |
| Temperature resistance long term | 85 °C |
Properties / Performance Values
| Static shear resistance at 70°C | very good |
|---|---|
| Temperature resistance short term | 140 °C |
| Temperature resistance long term | 85 °C |
Adhesion to Values
| Adhesion to Steel (initial) | 7.9 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 12.5 N/cm |
Adhesion to Values
| Adhesion to Steel (initial) | 7.9 N/cm |
|---|---|
| Adhesion to Steel (after 14 days) | 12.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
