Additional Info
Liner variants:
PV 00 Brown glassine liner
PV 06 Red MOPP filmic liner (80µm/71gr)
PV 00 Brown glassine liner
PV 06 Red MOPP filmic liner (80µm/71gr)

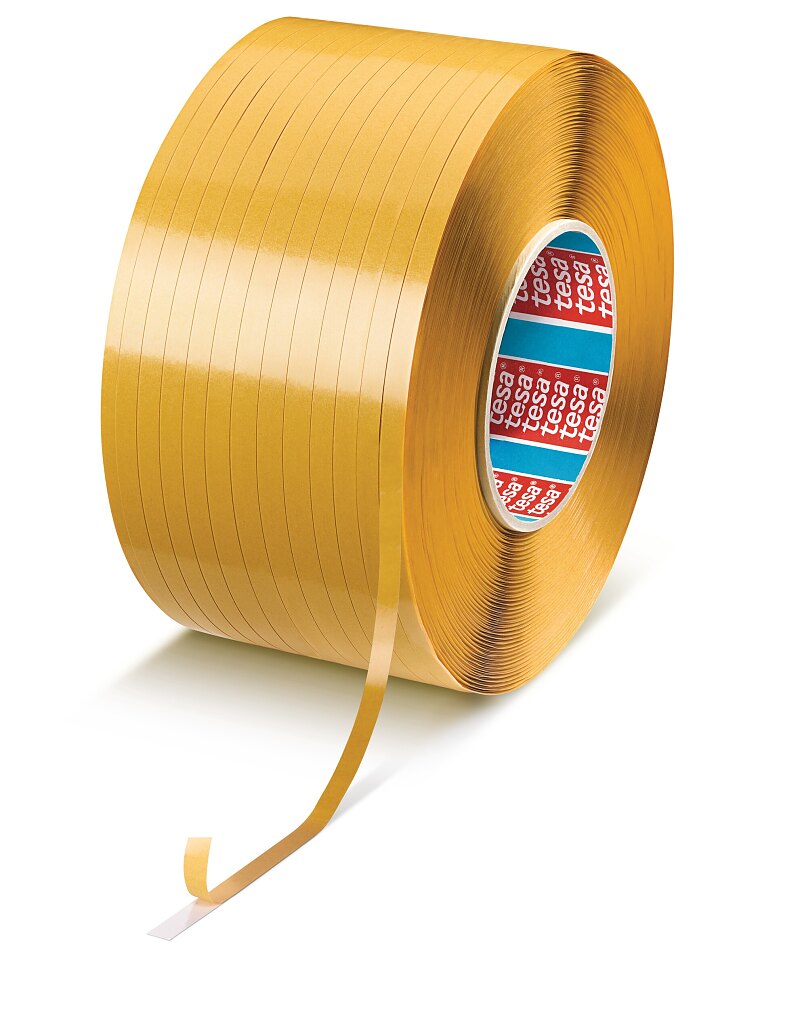

tesa® 64624
Double-sided filmic tape
Product description
tesa® 64624 is a transparent double-sided filmic tape based on a PP backing and a well-balanced synthetic rubber adhesive.
tesa® 64624 has been designed to meet the requirements of trim and profile producers:
- Good unwinding properties
- Low risk of product tearing due to filmic backing
- No adhesive oozing during the transport of the trims
- Paper liner to withstand fast liner removal without tearing
- Well balanced adhesive offers high immediate adhesion and very good shear strength at sufficient tack at room temperature
Product details and specifications
Product Construction
| Backing material | PP film |
|---|---|
| Color | transparent |
| Colour of liner | brown |
| Thickness of liner | 76 µm |
| Total thickness | 175 µm |
| Type of adhesive | synthetic rubber |
| Type of liner | glassine |
| Weight of liner | 90 g/m² |
Product Construction
| Backing material | PP film |
|---|---|
| Color | transparent |
| Colour of liner | brown |
| Thickness of liner | 76 µm |
| Total thickness | 175 µm |
| Type of adhesive | synthetic rubber |
| Type of liner | glassine |
| Weight of liner | 90 g/m² |
Properties / Performance Values
| Elongation at break | 140 % |
|---|---|
| Tensile strength | 45 N/cm |
| Ageing resistance (UV) | low |
| Static shear resistance at 40°C | low |
| Humidity resistance | medium |
| Tack | low |
Properties / Performance Values
| Elongation at break | 140 % |
|---|---|
| Tensile strength | 45 N/cm |
| Ageing resistance (UV) | low |
| Static shear resistance at 40°C | low |
| Humidity resistance | medium |
| Tack | low |
Adhesion to Values
| Adhesion to PC (initial) | 13 N/cm |
|---|---|
| Adhesion to PE (initial) | 10 N/cm |
| Adhesion to PP (initial) | 8 N/cm |
| Adhesion to PVC (initial) | 13 N/cm |
| Adhesion to Steel (initial) | 12 N/cm |
Adhesion to Values
| Adhesion to PC (initial) | 13 N/cm |
|---|---|
| Adhesion to PE (initial) | 10 N/cm |
| Adhesion to PP (initial) | 8 N/cm |
| Adhesion to PVC (initial) | 13 N/cm |
| Adhesion to Steel (initial) | 12 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
